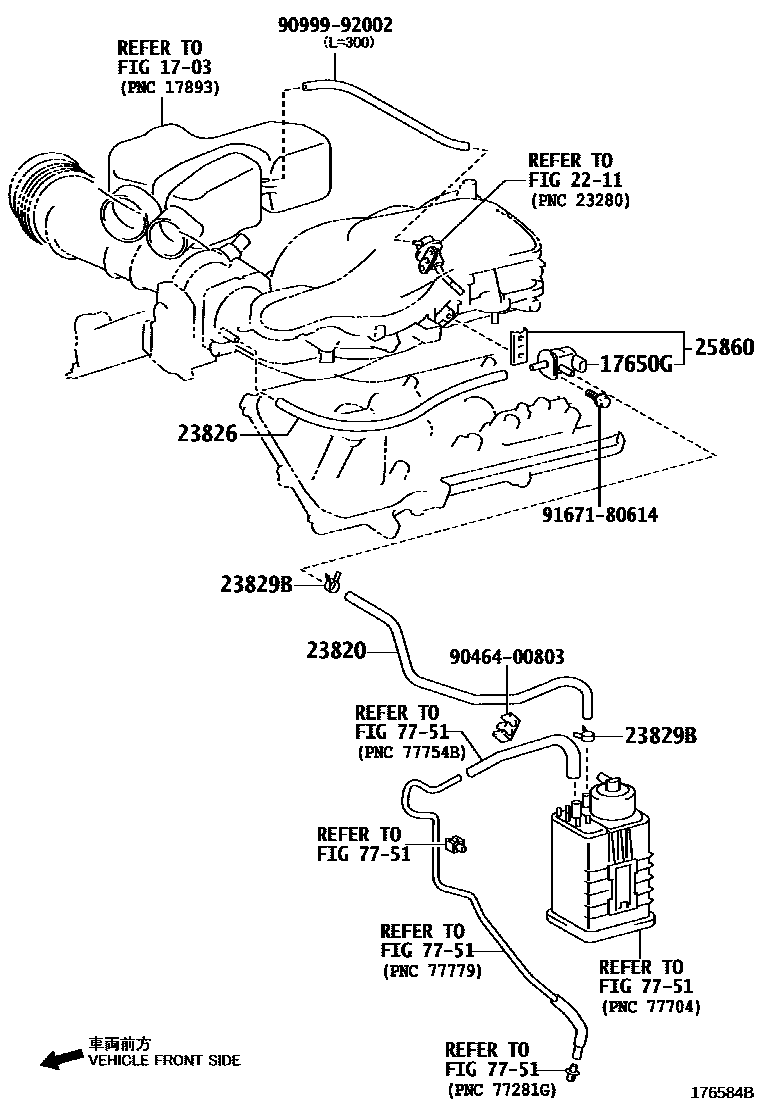

VACUUM PIPING

0001 1 0002 1W(SUB TANK) 0003 1 0004 1 0005 1 0006 1FOR EURO 4 CONFORMITY 0007 1FOR EURO 2,3 CONFORMITY 0009 1W/O(EGR) 0010 1 0011 1 0012 1

1703

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GRJ150201308-201506

2211

23820HOSE ASSY, FUEL VAPOR FEED

main23820-75150i2TRFE..TRJ15#..LHD200908-201308

main23820-31210supersedes 23820-31200i1GRFE..GRJ150201506

FUEL TANK-WITH(SUB TANK)

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31160i1GRFE..GRJ150200908-201209

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×2i2TRFE..TRJ15#201308-201506

NO.2

main96132-51100×2i2TRFE..TRJ15#..LHD200908-201308

NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i1GDFTV..GDJ150201506

NO.1

main25860-30160i1GDFTV..GDJ150201506

NO.2

main25860-36020i1GRFE..GRJ150201506

main90910-12089i1GDFTV..GDJ150201506

NO.3

main90910-12280i2TRFE..TRJ150..RHD200908-201110

7751

9046400803

main90464-00803

9099992002

main90999-92002

9167180614

main91671-80614

11 parts on this diagram · 11 diagrams in section
