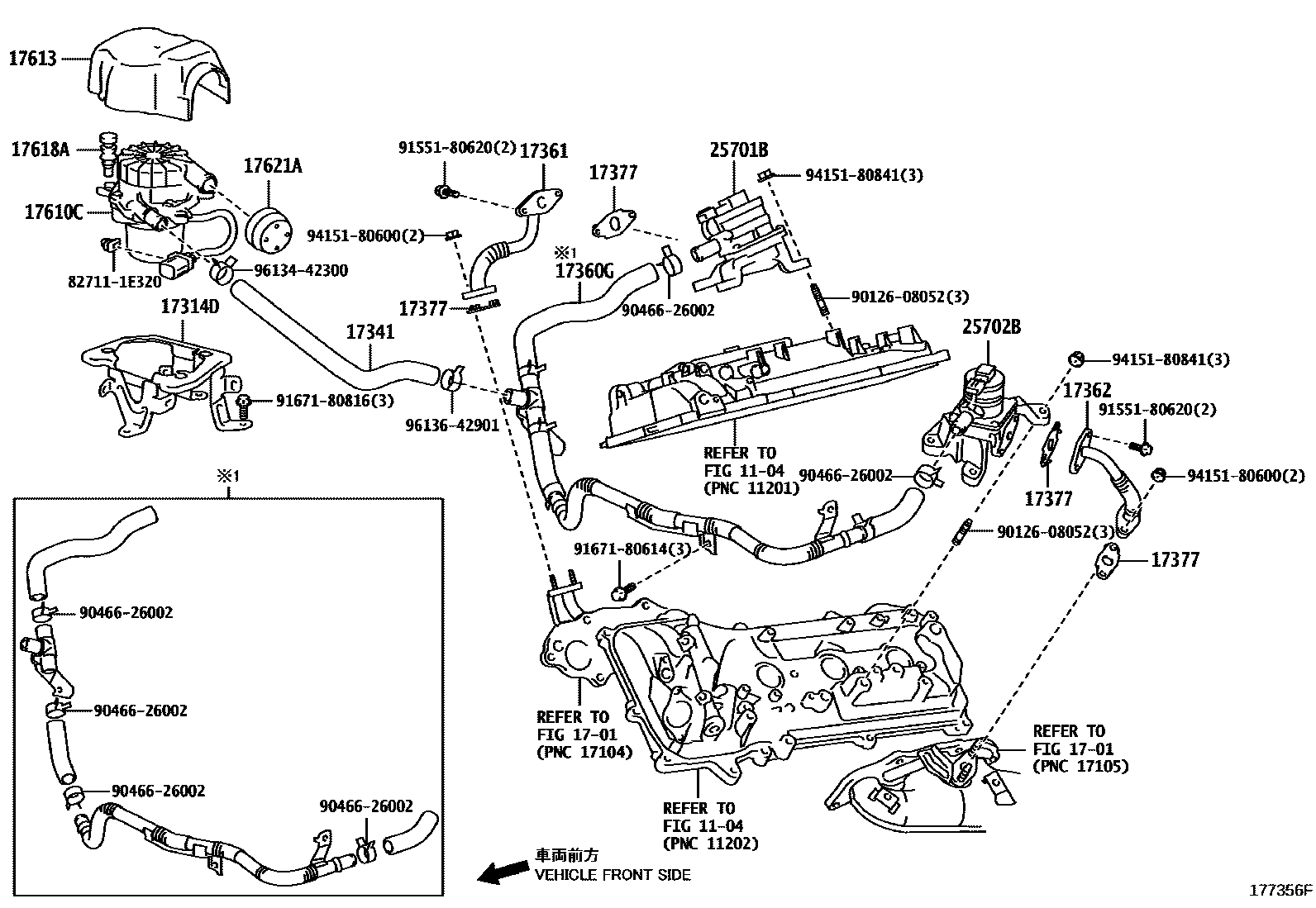

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1104

1701

17314DBRACKET, AIR PUMP, NO.1

main17314-0W030i2TRFE..TRJ15#..LHD200908-201204

main17314-0W031supersedes 17314-0W031i2TRFE..TRJ15#201506-201708

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-75190i2TRFE..TRJ15#200908-200912

main17341-75191i2TRFE..TRJ150..RHD201001-201110

17360GTUBE ASSY, AIR

17361TUBE, AIR

main17361-31030

17362TUBE, AIR, NO.2

main17362-31020

17377GASKET, AIR TUBE, NO.2

main17377-38010

17610CPUMP ASSY, AIR

main17610-0C040i2TRFE..TRJ15#..LHD200908-201308

17613COVER, AIR PUMP

main17613-31010

17618AINSULATOR, AIR PUMP

main17618-0C010×3supersedes 17618-0C010i2TRFE..TRJ15#..LHD200908-201308

17621AINLET, AIR PUMP

main17621-0C010supersedes 17621-0C010i2TRFE..TRJ150..RHD200908-201110

25701BVALVE SET, EMISSION CONTROL, NO.1

main25701-31011i1GRFE..GRJ150..5FC..ARL201110-201206

HONG KONG SPEC

main25701-31012i1GRFE..GRJ150..5FC..ARL201207-201302

HONG KONG SPEC

main25701-31013i1GRFE..GRJ150..ARL201308-201406

HONG KONG SPEC

sub25701-31014

25702BVALVE SET, EMISSION CONTROL, NO.2

main25702-31011i1GRFE..GRJ150..5FC..ARL201110-201206

HONG KONG SPEC

main25702-31012i1GRFE..GRJ150..5FC..ARL201207-201302

HONG KONG SPEC

main25702-31013i1GRFE..GRJ150..5FC..ARL201303-201308

HONG KONG SPEC

sub25702-31014

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608052

main90126-08052

9046626002

main90466-26002

9155180620

main91551-80620

9167180614

main91671-80614

9167180816

main91671-80816

9415180600

main94151-80600

9415180841

main94151-80841

9613442300

main96134-42300

9613642901

main96136-42901

24 parts on this diagram · 4 diagrams in section
