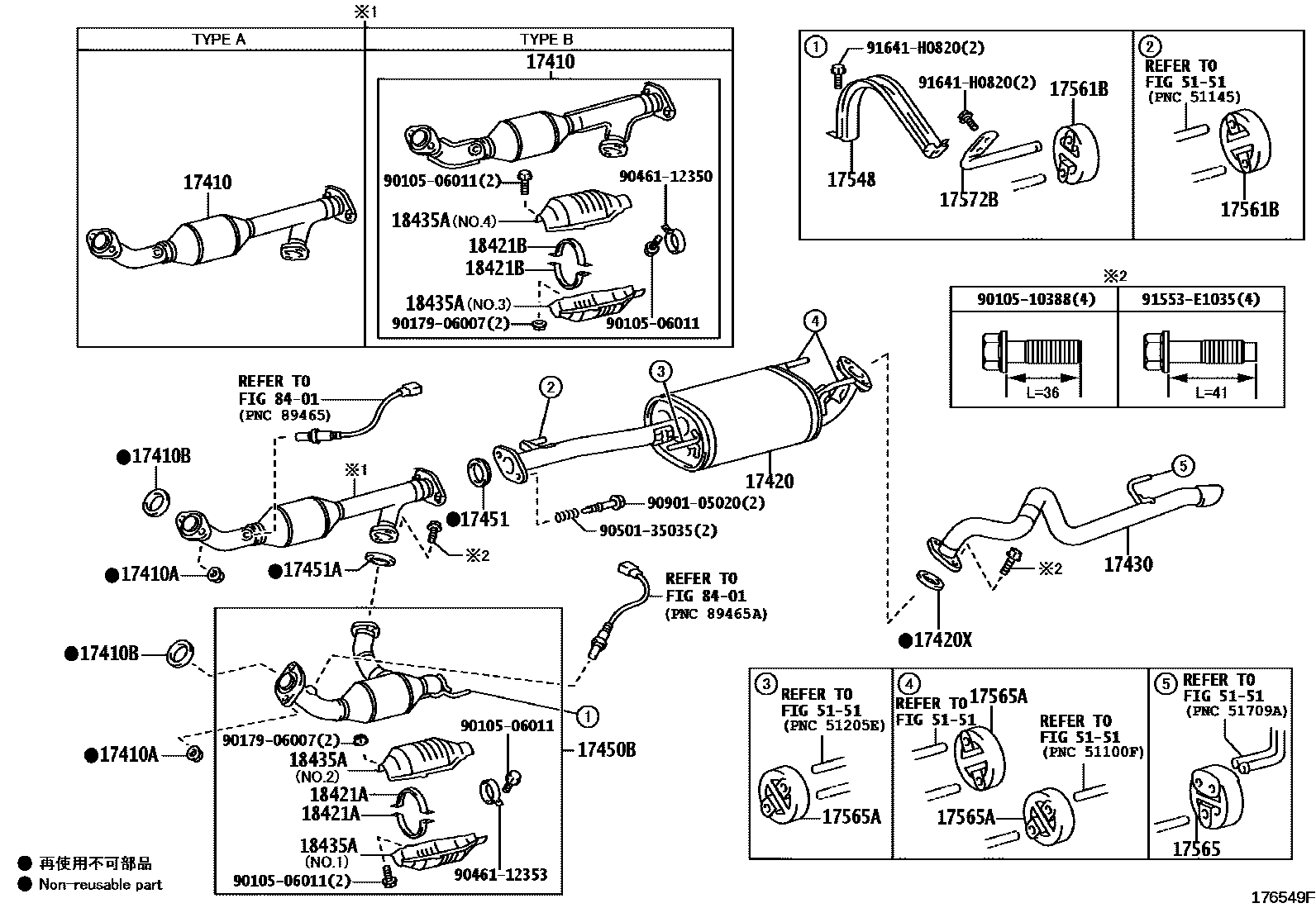

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/AG4/Y,TYPE A:REFER ILLUST.
*114=TOYOTA/AG4/Y,ENGINE-FOR EURO 4 CONFORMITY,TYPE A:REFER ILLUST.
*114=TOYOTA/AG4/Y,ENGINE-FOR EURO 4 CONFORMITY,TYPE A:REFER ILLUST.
*114=TOYOTA/AG4/Y,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
*114=TOYOTA/TB7/Y,HONG KONG SPEC,TYPE A:REFER ILLUST.
*114=TOYOTA/TB7/Y,TYPE A:REFER ILLUST.
*114=TOYOTA/TB7/Y,PAKISTAN,TUNISIA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,TYPE A:REFER ILLUST.
*114=TOYOTA/TB7/Y,SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY,TYPE A:REFER ILLUST.
*114=TOYOTA/TB7/Y,SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,TYPE A:REFER ILLUST.
*114=TOYOTA/TB7/Y,PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,TYPE A:REFER ILLUST.
*114=TOYOTA/TB7/Y,HONG KONG SPEC&ENGINE-FOR EURO 5 CONFORMITY,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
sub17420-30370
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)
sub17420-31360
PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY
SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
HONG KONG SPEC
PAKISTAN SPEC
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)
SOUTH AFRICA SPEC
sub17420-75601
sub17420-75650
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17450BPIPE ASSY, EXHAUST, FRONT NO.2
*114=TOYOTA/TB8/Y
*114=TOYOTA/TB8/Y,PAKISTAN,TUNISIA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
*114=TOYOTA/TB8/Y,SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY
*114=TOYOTA/TB8/Y,SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
*114=TOYOTA/TB8/Y,PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
*114=TOYOTA/TB8/Y,HONG KONG SPEC&ENGINE-FOR EURO 5 CONFORMITY
*114=TOYOTA/TB8/Y,HONG KONG SPEC
17451GASKET, EXHAUST PIPE
sub17451-28040
main17451-31020i1GRFE,5LE..GRJ150,LJ150;1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC200909-201506
17451AGASKET, EXHAUST PIPE, NO.2
17548BRACKET, EXHAUST PIPE STOPPER
17561BSUPPORT, EXHAUST PIPE, NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
18421ASTAY, CONVERTER PROTECTOR, LH
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY
HONG KONG SPEC
PAKISTAN,TUNISIA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY
18421BSTAY, CONVERTER PROTECTOR, NO.2
TYPE B:REFER ILLUST.
18435APROTECTOR, MONOLITHIC CONVERTER
NO.2
NO.4T/P B:REF.ILLUST
NO MARK
MARK TB9
NO.1
PAKISTAN,TUNISIA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,NO.1
SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&ENGINE-FOR EURO 3-1 CONFORMITY,NO.1
SOUTH AFRICA SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,NO.1
PAKISTAN SPEC&ENGINE-FOR EURO 3-1 CONFORMITY,NO.1
HONG KONG SPEC&ENGINE-FOR EURO 5 CONFORMITY,NO.1
HONG KONG SPEC,NO.1
NO.1
NO.3T/P B:REF.ILLUST
5151
8401
9010506011
main90105-06011
9010510388
main90105-10388
9017906007
main90179-06007
9046112350
main90461-12350
9046112353
main90461-12353
9050135035
main90501-35035
9090105020
main90901-05020
91553E1035
main91553-E1035
91641H0820
main91641-H0820
28 parts on this diagram · 6 diagrams in section
