16361FAN

main16361-31060i201308-201506

main16361-54140i200908-201308

main16361-67020i200908-201110

main16361-75020i200908-201007

main16361-75021i201008-201110

16400RADIATOR ASSY

main16400-30290i201506-201608

main16400-30291i201608

main16400-30300i201506-201608

main16400-30301i201608

main16400-30350i201506

main16400-30380i201506

main16400-31710i200908-201203

main16400-31711i201308-201409

main16400-31712i201410-201506

sub16400-31713

main16400-31720i200908-201203

main16400-31721i201308-201409

main16400-31722i201410-201506

main16400-31A70i201506-201605

main16400-31A71i201606

sub16400-31C00

main16400-31A80i201506-201605

main16400-31A81i201606

sub16400-31C10

main16400-75441i200908-201203

main16400-75442i201308-201409

main16400-75443i201410-201506

main16400-75451i200908-201203

main16400-75452i201308-201409

main16400-75453i201410-201506

sub16400-75454

main16400-75640i201506-201605

main16400-75641i201606

sub16400-75620

main16400-75650i201506-201605

main16400-75651i201606

sub16400-75630

main16400-31730i200908-201203

KAZAKHSTAN,GEORGIA,AZORES SPEC

main16400-31731i201204-201308

KAZAKHSTAN,GEORGIA,AZORES SPEC

main16400-31732i201410-201506

KAZAKHSTAN,GEORGIA,AZORES SPEC

sub16400-31B70

main16400-75550i200908-201102

CHINA SPEC

main16400-75551i201204-201308

RUSSIA SPEC

main16400-75552i201410-201506

RUSSIA SPEC

main16400-75560i200908-201203

UKURAINE SPEC

main16400-75561i201204-201308

RUSSIA SPEC

main16400-75562i201410-201506

RUSSIA SPEC

main16400-75660i201506-201605

UKRAINE SPEC

main16400-75661i201606

UKRAINE SPEC

sub16400-75620

main16400-75670i201506-201605

UKRAINE SPEC

main16400-75671i201606

UKRAINE SPEC

sub16400-75630

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-21280i200908-201308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i201506

main16492-21050i200908-201308

16401CAP SUB-ASSY, RADIATOR

main16401-31791i201206-201308

TYPE B:REFER ILLUST.

main16401-31792i201506-201605

sub16401-36020

main16401-31830i201606

main16401-46610i200908-201206

TYPE A:REFER ILLUST.

sub16401-30020

16453PLATE, RADIATOR SIDE

main16453-31710i201506

16454PLATE, RADIATOR SIDE

main16454-31710i201308-201506

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820×4i200908-201308

16470TANK ASSY, RADIATOR RESERVE

main16470-30040i200908-201110

main16470-30041i201204-201308

main16470-30042i201506-201603

main16470-30043i201604-201608

main16470-30044i201608

main16470-30050i201506-201603

main16470-30051i201604-201607

main16470-30052i201608

sub16470-30053

main16470-31050i201308-201506

16471CAP SUB-ASSY, RESERVE TANK

main16405-22040i201702

main16405-50051i200908-201308

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-30010×2i201506

main16561-31080i201308-201506

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-30010×2i200908-201110

sub16562-30011

main16562-31020i200908-201308

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31010i200908-201308

main16567-31020i200908-201308

16571HOSE, RADIATOR, INLET

main16571-31270i201308-201506

sub16571-31271

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96136-44301×2i201506

16572HOSE, RADIATOR, OUTLET

main16572-31360i200908-201308

sub16572-31361

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96136-44301×2i200908-201308

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-30200i200908-201308

COLD AREA SPEC

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-26040i200908-201012

main16581-28070i201506

16711SHROUD, FAN

main16711-30060i201506

main16711-30070i201506-201512

main16711-30071i201601

main16711-31490i201308-201506

sub90183-06030

main16711-31491i201612

main16711-54780i200908-201308

main16711-75260i201506

9017906185

main90179-06185

9017906293

main90179-06293

9018306030

main90183-06030

9153560816

main91535-60816

91631B0616

main91631-B0616

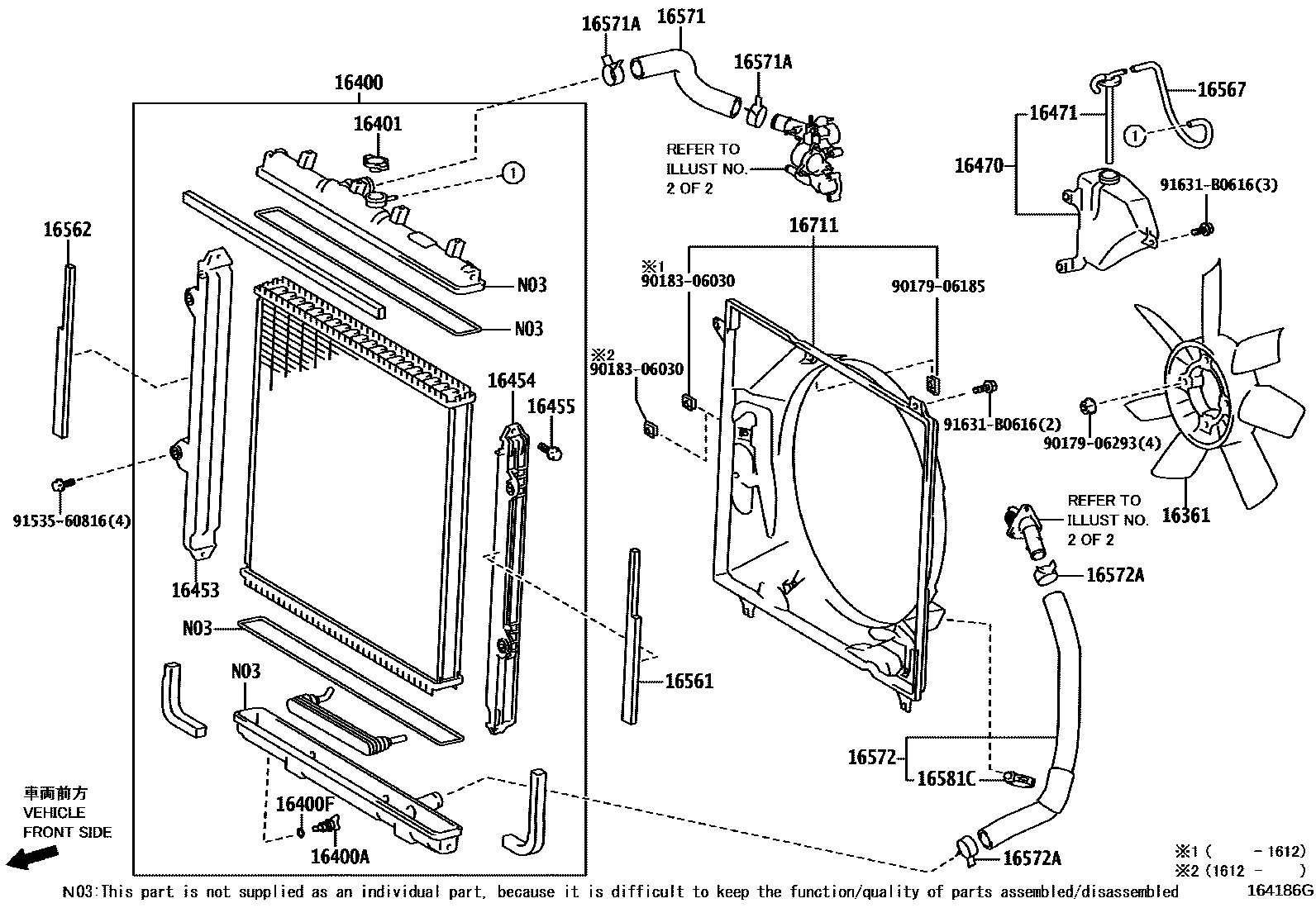

RADIATOR & WATER OUTLET
