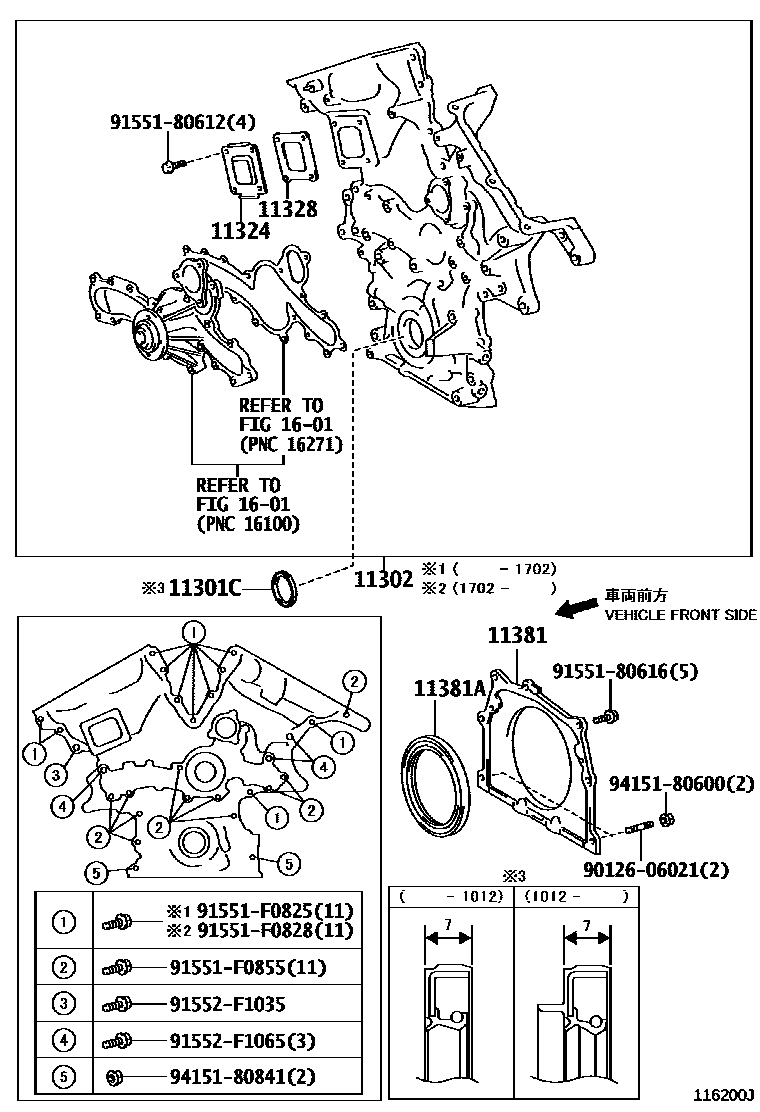

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1ALTERNATOR=12V80A 0006 1ALTERNATOR=12V100A 0007 1ALTERNATOR=12V80A 0008 1ALTERNATOR=12V100A 0009 1ALTERNATOR=12V80A 0010 1ALTERNATOR=12V100A 0011 1ALTERNATOR=12V80A 0012 1ALTERNATOR=12V100A 0013 1 0014 1 0015 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54052i5LE..LJ150201506

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42045i1GRFE..GRJ150200908-201012

main90311-42048i1GRFE..GRJ150201012-201308

main90311-48029i2TRFE..TRJ150..RHD200908-201110

main90311-48031i2TRFE..TRJ15#201506-201708

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31030i1GRFE..GRJ150201506

main11310-75073i2TRFE..TRJ150..RHD200908-201110

sub91671-80840

main11310-75074i2TRFE..TRJ15#201406-201411

main11310-75090i2TRFE..TRJ15#201506-201708

main11310-75110i2TRFE..TRJ15#201411-201506

main11321-11120i1GDFTV..GDJ150201506

sub11321-35040

main11321-54020i5LE..LJ150200908-201112

main11321-54021i5LE..LJ150201112-201308

11324PLATE, TIMING CHAIN COVER

main11324-11010i1GDFTV..GDJ150201506

main11324-31020i1GRFE..GRJ150201308-201506

main11324-75010i2TRFE..TRJ15#201506-201708

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5LE..LJ150200908-201308

(L)

main11328-11070i1GDFTV..GDJ150201506

main11328-31030i1GRFE..GRJ150200908-201308

main11328-54021i5LE..LJ150200908-201308

(J)

main11328-75030i2TRFE..TRJ15#201506-201708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0K010i1KDFTV..KDJ150201207-201308

main11381-11010i1GDFTV..GDJ150201506

main11381-31010i1GRFE..GRJ150201308-201506

main11381-54030i5LE..LJ150201506

main11381-67020i1KDFTV..KDJ150..6F..GCC200908-201110

main11381-75011i2TRFE..TRJ15#..LHD200908-201308

main11381-75012i2TRFE..TRJ15#201506-201708

11381ASEAL, ENGINE REAR OIL

main90311-85008i5LE..LJ150200908-201308

main90311-85011i5LE..LJ150201402-201506

main90311-88005i2TRFE..TRJ150..RHD200908-201110

main90311-88006i2TRFE..TRJ15#201411-201506

main90311-95008i1KDFTV..KDJ150200908-201008

main90311-95014i1KDFTV..KDJ150..6F..GCC201008-201110

main90311-95015i1KDFTV..KDJ150201506

main90311-99010i1GRFE..GRJ150201506

1601

9012606021

main90126-06021

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0828

main91551-F0828

91551F0855

main91551-F0855

91552F1035

main91552-F1035

91552F1065

main91552-F1065

9415180600

main94151-80600

9415180841

main94151-80841

18 parts on this diagram · 15 diagrams in section
