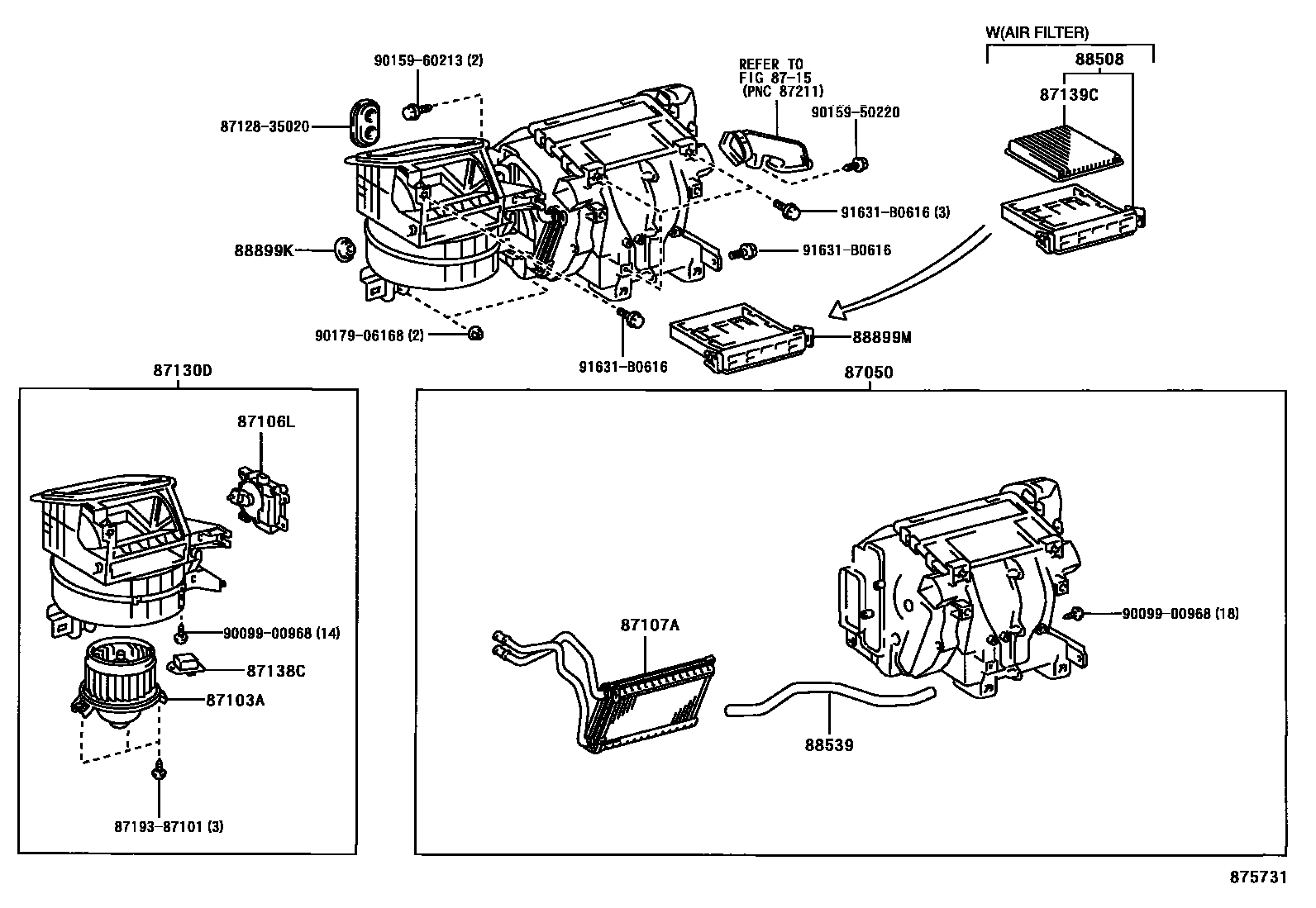

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT-W/O(AIR CONDITIONER) 0002 1FRONT-W(MANUAL AIR CONDITIONE0003 1FRONT-W(AUTO AIR CONDITIONER)0004 1FRONT-W/O(AIR CONDITIONER) 0005 1FRONT-W(MANUAL AIR CONDITIONE0006 1FRONT-W(AUTO AIR CONDITIONER)0007 1FRONT-W(AUTO AIR CONDITIONER)0008 1REAR-W(MANUAL AIR CONDITIONER0009 1REAR-W(AUTO AIR CONDITIONER) 0010 1COOL BOX 0012 1COOL BOX(CHINA SPEC) 0013 1COOL BOX 0014 1COOL BOX 0016 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60010iGRJ12#..GEN200301-200309

sub87050-60012

main87050-60011iRZJ120..LHD200309-200310

AIR CONDITIONER-SINGLE AUTO

sub87050-60012

main87050-60030iRZJ120..LHD200209-200402

AIR CONDITIONER-SINGLE MANUAL

sub87050-60031

main87050-60031iRZJ120..LHD;TRJ120..LHD..GEN200402-200508

AIR CONDITIONER-SINGLE MANUAL

main87050-60050iRZJ12#,TRJ12#..LHD200209-200508

main87050-60070iGRJ120..VX..ARL200301-200402

sub87050-60071

main87050-60071iGRJ120..VX..ARL200402-200508

AIR CONDITIONER-SINGLE AUTO

main87050-60120iLJ120..RHD200209-200402

AIR CONDITIONER-SINGLE MANUAL

sub87050-60121

main87050-60121iLJ120..RHD200402-200508

AIR CONDITIONER-SINGLE MANUAL

main87050-60140iGRJ120,KZJ120,RZJ120,TRJ120..RHD..GX200209-200508

main87050-60160iKZJ120..GEN200209-200402

sub87050-60161

main87050-60161iKZJ120..GEN200402-200508

main87050-60170iRZJ120..LHD200310-200402

AIR CONDITIONER-SINGLE AUTO

sub87050-60171

main87050-60170iGRJ12#..GCC200307-200402

sub87050-60171

main87050-60171iGRJ12#..(5FC,6F)..GCC200402-200508

AIR CONDITIONER-SINGLE AUTO

main87050-60171iGRJ120..CHI200403-200507

main87050-60180iTRJ12#..LHD..GEN200508-200908

AIR CONDITIONER-SINGLE MANUAL

main87050-60190iGRJ12#..GCC200502-200908

AIR CONDITIONER-SINGLE AUTO

main87050-60230iKZJ120..GEN200508-200908

main87050-60240iGRJ120,KDJ120..VX..ARL200508-200908

AIR CONDITIONER-SINGLE AUTO

main87050-60290iLJ120..RHD200508-200908

AIR CONDITIONER-SINGLE MANUAL

main87050-60310iGRJ120,KDJ120,KZJ120,TRJ120..RHD..GX200508-200908

main87050-60320iTRJ12#..LHD200508-200908

main87050-0G010iGRJ120..CHI200807

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

main87050-60080iKZJ120..4FC..ARL200209-200402

AIR CONDITIONER-SINGLE AUTO

sub87050-60081

main87050-60081iKZJ120..4FC..ARL200402-200508

AIR CONDITIONER-SINGLE AUTO

main87050-60090iKZJ120,RZJ120..RHD..5F200209-200402

AIR CONDITIONER-SINGLE AUTO

sub87050-60091

main87050-60091iKZJ120,RZJ120,TRJ120..RHD..5F200402-200508

AIR CONDITIONER-SINGLE AUTO

main87050-60250iKZJ120..4FC..ARL200508-200908

AIR CONDITIONER-SINGLE AUTO

main87050-60260iKZJ120,TRJ120..RHD..5F200508-200908

AIR CONDITIONER-SINGLE AUTO

main87050-60380iGRJ120..GCC200601-200908

AIR CONDITIONER-DUAL AUTO

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-35040iGRJ12#..GEN200209-200309

sub87103-35060

main87103-35050iGRJ120,KZJ120,LJ120,RZJ120..RHD200209-200308

sub87103-35080

main87103-35060iGRJ12#..GCC;GRJ120..(5FC,6F)..GEN;KZJ120,LJ12#,RZJ12#,TRJ12#..LHD200308-200707

main87103-35080iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD200308-200707

main87103-60330iGRJ12#,KZJ120,LJ12#,TRJ12#..LHD..(GCC,GEN)200707-200908

main87103-60360iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD200707-200908

87106LSERVO SUB-ASSY, DAMPER

main87106-35150iRZJ120..LHD200209-200908

AIR CONDITIONER-SINGLE AUTO

main87106-35150iGRJ120..CHI200309

main87106-60170iLJ120..RHD200402-200508

AIR CONDITIONER-SINGLE MANUAL

main87106-60170iLJ120..RHD200209-200908

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-35100iRZJ120..LHD200309-200310

AIR CONDITIONER-SINGLE AUTO

main87107-35100iGRJ12#..GEN200209-200908

main87107-35110iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD200209-200908

87130DBLOWER ASSY

main87130-35150iGRJ12#,KZJ120..LHD..VX..(4FC,5F)200209-200507

sub87130-35151

main87130-35150iRZJ12#,TRJ12#..LHD200209-200410

AIR CONDITIONER-SINGLE AUTO

sub87130-35151

main87130-35151iGRJ120..CHI200507

main87130-35151iGRJ12#,KZJ120..GCC,GEN200411-200707

AIR CONDITIONER-SINGLE AUTO

main87130-35160iGRJ120..VX..ARL200301-200411

sub87130-35161

main87130-35161iGRJ120,KDJ120..VX..ARL200411-200707

AIR CONDITIONER-SINGLE AUTO

main87130-60490iLJ12#,RZJ12#,TRJ12#..LHD200209-200707

main87130-60500iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..GX200209-200707

main87130-60540iGRJ12#,KZJ120..GCC,GEN200707-200807

AIR CONDITIONER-SINGLE AUTO

sub87130-60541

main87130-60541iGRJ12#,KZJ120..GCC,GEN200808-200908

AIR CONDITIONER-SINGLE AUTO

main87130-60560iLJ12#,TRJ12#..LHD200707-200807

sub87130-60561

main87130-60561iLJ12#,TRJ12#..LHD200808-200908

main87130-60580iGRJ120,KDJ120..VX..ARL200707-200807

AIR CONDITIONER-SINGLE AUTO

sub87130-60581

main87130-60581iGRJ120,KDJ120..VX..ARL200808-200908

AIR CONDITIONER-SINGLE AUTO

main87130-60590iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD..GX200707-200807

sub87130-60591

main87130-60591iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..RHD..GX200808-200908

87138CRESISTOR, BLOWER

main87138-60270iLJ120..RHD200402-200508

AIR CONDITIONER-SINGLE MANUAL

main87138-60270iLJ120..RHD200209-200908

main87138-60280iLJ12#,RZJ12#,TRJ12#..LHD200209-200908

87139CFILTER, CLEAN AIR

main87139-32010iGRJ125,LJ12#..5F,5FC;KZJ120,TRJ12#..GCC,GEN;GRJ120..(5FC,6F)..(GCC,GEN)200209-200908

main87139-47010iKZJ120,TRJ12#..GCC,GEN;GRJ12#..LHD..VX..(5FC,6F)200209-200507

WITH(CLEAN AIR FILTER)

8715

88508FILTER SUB-ASSY, CLEAN AIR

main88508-60011iGRJ12#,KZJ120,LJ12#,TRJ12#..GCC,GEN200507

main88508-20120iKZJ120,TRJ12#..GCC,GEN;GRJ12#..LHD..VX..(5FC,6F)200209-200507

WITH(CLEAN AIR FILTER)

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-35030iGRJ12#..GCC200209-200908

FRONT

main88539-35030iRZJ120..LHD200309-200310

AIR CONDITIONER-SINGLE AUTO

main88539-35030iKZJ120..GEN200508-200908

AIR CONDITIONER-DUAL AUTO,FRONT

main88539-35030iGRJ120..CHI200403

main88539-35040iKZJ120,TRJ120..RHD;GRJ120..GX..(5FC,6F)..ARL200209-200908

FRONT

main88539-60220iGRJ120..CHI200309

REAR

main88539-60240iGRJ120..VX..CHI200606

COOL BOX

88899KPLATE, COVER

main88899-3A010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

NO.1

main88899-60250iGRJ12#..GCC200209-200507

NO.2

main88899-60250iRZJ12#..LHD200209-200508

AIR CONDITIONER-DUAL AUTO,NO.2

main88899-60250iGRJ12#..(5FC,6F)..GCC200209-200508

AIR CONDITIONER-DUAL MANUAL,NO.2

main88899-60260iGRJ12#..GCC200209-200508

NO.3

main88899-60260iTRJ120..GEN;RZJ120..GCC,GEN200209-200508

AIR CONDITIONER-DUAL MANUAL,NO.3

main88899-60320iGRJ120..CHI200507

NO.2

88899MPLATE, COVER(FOR AIR FILTER)

main88899-0G030iGRJ120..CHI200606

main88899-41010iGRJ125,RZJ12#..4FC,5F;GRJ120,KDJ120,KZJ120..ARL;GRJ120..LHD..VX..(4FC,5F)200209-200712

8712835020GROMMET, HEATER

main87128-35020

8719387101

main87193-87101

9009900968

main90099-00968

9015950220

main90159-50220

9015960213

main90159-60213

9017906168

main90179-06168

91631B0616

main91631-B0616

19 parts on this diagram · 14 diagrams in section
