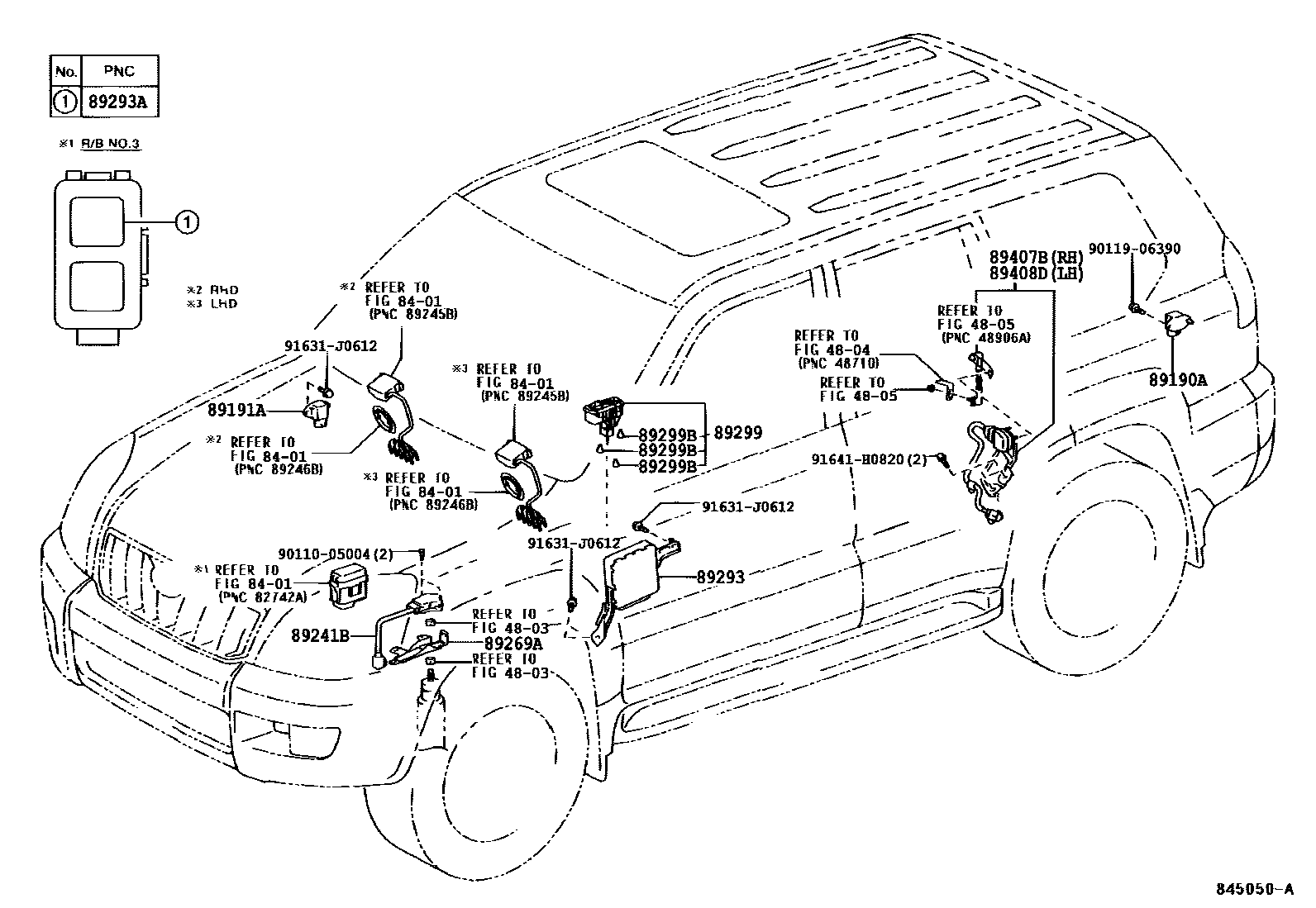

ELECTRONIC MODULATED SUSPENSION

4803

4804

4805

8401

89190ASENSOR ASSY, ACCELERATION

main89190-44010iGRJ120..VX..CHI200606-200711

main89190-60030iGRJ120..VX..CHI200711

89191ASENSOR, ACCELERATION

main89191-30020iGRJ120..VX..CHI200606-200711

sub89191-22020

main89191-50020iGRJ120..VX..CHI200711

89241BACTUATOR, ABSORBER CONTROL

main89241-60010×2iGRJ120..VX..CHI200606

89269ABRACKET, SUSPENSION CONTROL

main89269-60010iGRJ120..VX..CHI200606

RH

main89269-60020iGRJ120..VX..CHI200606

LH

89293COMPUTER, SUSPENSION CONTROL

main89293-60032iGRJ120..VX..CHI200606-200707

main89293-60033iGRJ120..VX..CHI200708

main89293-60030iGRJ120,KZJ120..ARL,GCC,GEN200209-200311

TEMS

main89293-60031iKZJ120..4FC;KZJ120..5F..GEN;GRJ120..ARL,GCC,GEN200311-200408

TEMS

89293ARELAY, SUSPENSION CONTROL

main90987-02025iGRJ120..VX..CHI200606

89299SWITCH, SUSPENSION CONTROL

main89299-60020iGRJ120..VX..CHI200606

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main90010-01039×3iGRJ120..VX..CHI200606

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-60022iGRJ120..VX..CHI200606

main89407-60021iKZJ120200209-200211

TEMS

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-60011iGRJ120..VX..CHI200606

9011005004

main90110-05004

9011906390

main90119-06390

91631J0612

main91631-J0612

91641H0820

main91641-H0820

18 parts on this diagram · 1 diagram in section
