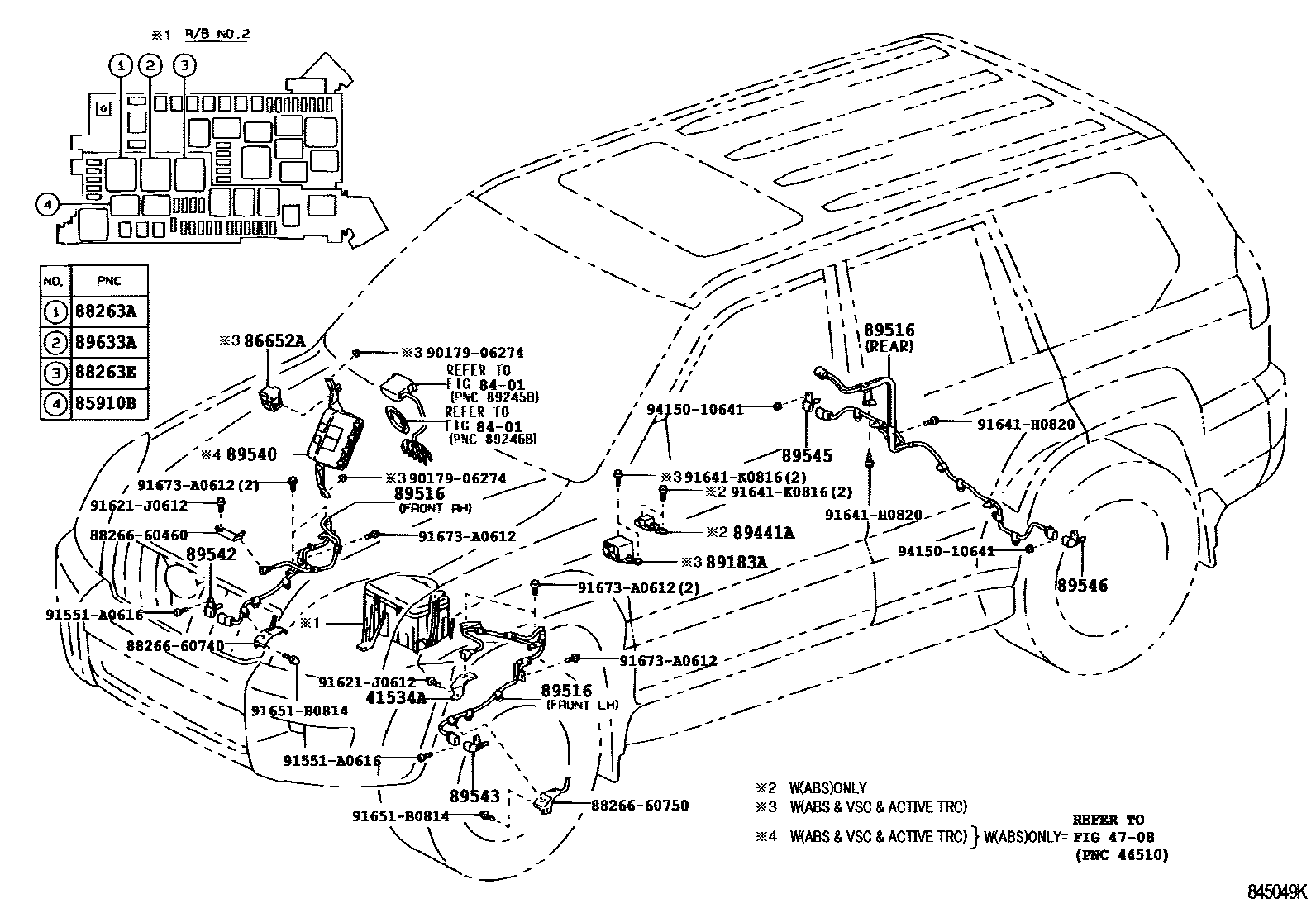

ABS & VSC
41534ABRACKET, FRONT DIFFERENTIAL BREATHER
4708
8401
85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
86652ABUZZER ASSY, SKID CONTROL
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
88263ARELAY, SKID CONTROL
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
88263ERELAY, SKID CONTROL NO.2
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
89183ASENSOR, YAWRATE
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
89441ASENSOR, DECELERATION
89516WIRE, SKID CONTROL SENSOR
FRONT RH
FRONT LH
REAR
ABS-WITH,REAR
89540COMPUTER ASSY, SKID CONTROL
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
sub89540-60450
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
sub89540-60460
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89633ARELAY, TRACTION CONTROL OR VSC
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
8826660460CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-60460
8826660740CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-60740
8826660750CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-60750
9017906274
main90179-06274
91551A0616
main91551-A0616
91621J0612
main91621-J0612
91641H0820
main91641-H0820
91641K0816
main91641-K0816
91651B0814
main91651-B0814
91673A0612
main91673-A0612
9415010641
main94150-10641
27 parts on this diagram · 4 diagrams in section
