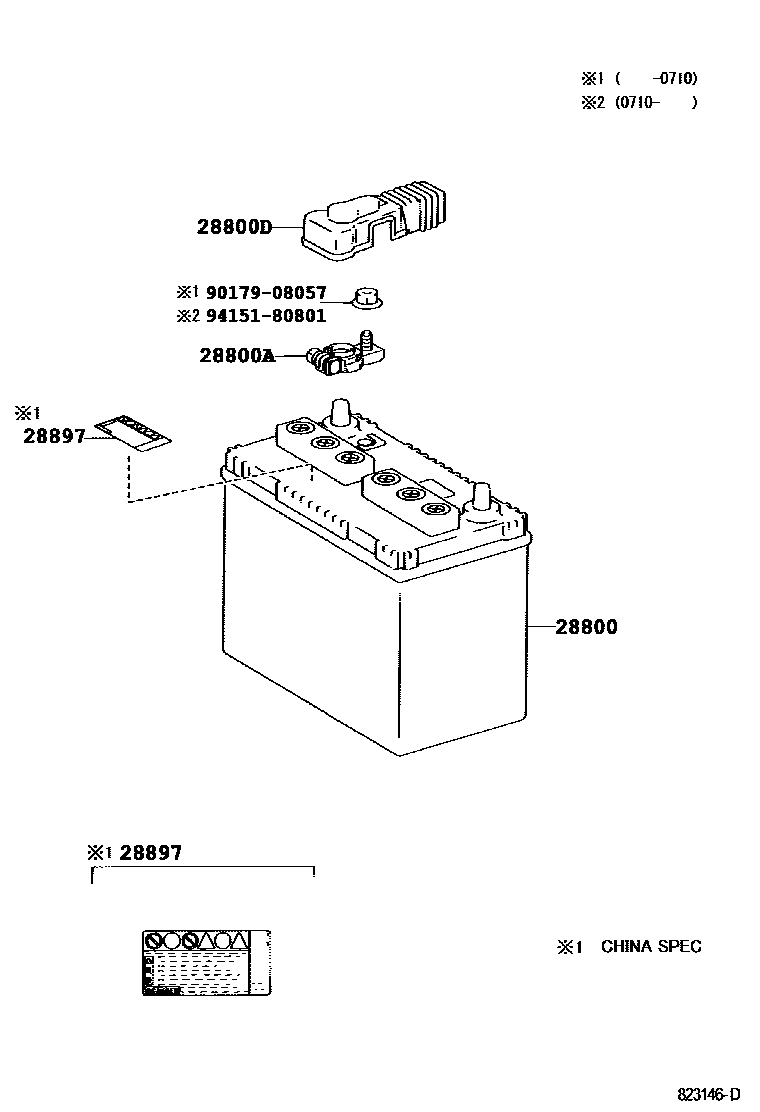

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0P010i1GRFE..GRJ120..GX..5FC..CHI200309-200409

95D31L

main28800-17121i1GRFE..GRJ12#..ARL,GCC,GEN200301-200908

80D26L,FURUKAWA

sub28800-38080

main28800-42041i2TRFE..TRJ12#200709-200904

55D23L,YUASA

sub28800-31260

main28800-42041i3RZFE,2TRFE..RZJ12#,TRJ12#200209-200908

55D23L,MATSUSHITA

sub28800-31260

main28800-42042i3RZFE,2TRFE..RZJ12#,TRJ12#200209-200709

55D23L,YUASA

sub28800-42041

main28800-42061i3RZFE,2TRFE..RZJ12#,TRJ12#200209-200908

55D23L,FURUKAWA

sub28800-42062

main28800-54020i1GRFE..GRJ12#..ARL,GCC,GEN200705-200811

80D26L,YUASA

sub28800-67102

main28800-54020i2TRFE..TRJ120..GCC200705-200811

80D26L,COLD SPEC,YUASA

sub28800-67102

main28800-64132i1GRFE..GRJ12#..ARL,GCC,GEN200301-200705

80D26L,YUASA

sub28800-54020

main28800-64181i1K#,5LE..KDJ120,KZJ120,LJ12#200209-200908

95D31L,YUASA

sub28800-78120

main28800-64251i1KZTE,5LE..KZJ120,LJ12#200209-200908

105D31L,FURUKAWA

sub28800-64905

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GRFE,1K#,5LE,3RZFE,2TRFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-35020i1GRFE,1K#,5LE,3RZFE,2TRFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

28897PLATE, BATTERY CAUTION

main28897-50030

9017908057

main90179-08057

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
