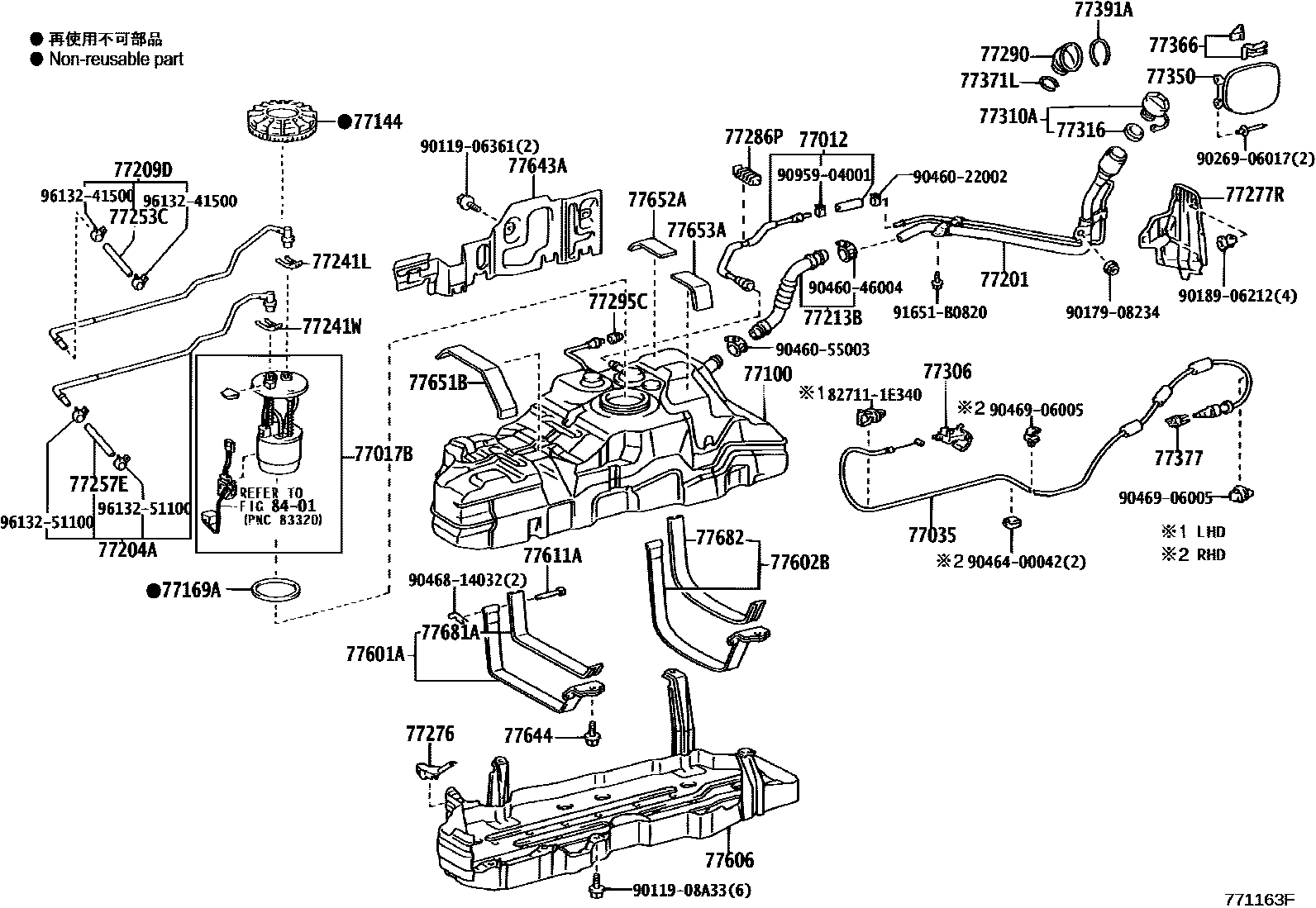

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK, W(FUEL SUB TANK) 0006 1FUEL TANK, W(FUEL SUB TANK) 0007 1FUEL TANK, W(FUEL SUB TANK) 0009 1FUEL TANK 0010 1FUEL TANK,W(FUEL SUB TANK) 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE, W(FUEL SUB TANK) 0016 1FUEL TUBE, W(FUEL SUB TANK) 0018 1FUEL TUBE 0019 1FUEL TUBE,W(FUEL SUB TANK)

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-0G010iGRJ120..CHI200501-200507

(L)

main77012-0G020iGRJ120..CHI200507-201003

(L)

main77012-35050iTRJ120..LHD..5F..GEN200508-200908

OTHER CO IN S.AMERICA & NEW CALEDONIA

main77012-35060iTRJ120..GCC;GRJ120..(5FC,6F)..(ARL,GCC,GEN)200209-200508

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-35030iKDJ120,KZJ120,LJ120200209-200908

main77017-60490iLJ125200210-200908

main77010-60130iKZJ120200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L,NO.1

main77010-60150iLJ120200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L,NO.1

main77017-60460iRZJ120,TRJ120..GEN;GRJ120..ARL,GCC,GEN200210-200803

FUEL TANK-W(FUEL SUB TANK) 180L

main77017-60470iKDJ120,KZJ120200210-200803

FUEL TANK-W(FUEL SUB TANK) 180L,NO.2

main77017-60520×4iLJ120200803-200908

FUEL TANK-W(FUEL SUB TANK) 180L,NO.2

main77020-60330iKDJ120200608-200908

FUEL TANK-W(FUEL SUB TANK) 180L,NO.1

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60090iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD200209-200908

main77035-60100iGRJ120,KZJ120,LJ120,RZJ120,TRJ120..LHD..(GCC,GEN)200209-200908

main77035-60120iGRJ125,LJ125,RZJ125,TRJ125200209-200908

main77035-0G010iGRJ120..CHI200507-201003

MADE IN CHINA

77100TANK ASSY, FUEL

main77001-3D520iRZJ120..LHD..5F..GEN200209-200405

OTHER CO IN S.AMERICA & NEW CALEDONIA

main77001-3D521iGRJ120..CHI200409-200611

main77001-3D530iRZJ120..GEN;KZJ120,LJ120200209-200405

main77001-3D531iRZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN200405-200908

sub77001-60A30

main77001-60631iGRJ125,LJ125,TRJ125200806-200908

sub77001-60641

main77001-60640iGRJ125,LJ125,RZJ125,TRJ125200210-200805

sub77001-60641

main77001-60850iGRJ120..CHI200611-201003

sub77001-35A30

main77001-60620iRZJ120..GEN;GRJ120,KZJ120,LJ120..ARL,GCC,GEN200209-200405

FUEL TANK-W(FUEL SUB TANK) 180L

main77001-60621iRZJ120,TRJ120..GEN;GRJ120,KZJ120,LJ120..ARL,GCC,GEN200405-200908

FUEL TANK-W(FUEL SUB TANK) 180L

sub77001-60A40

main77001-60750iKDJ120200608-200908

FUEL TANK-W(FUEL SUB TANK) 180L

sub77001-60A50

77144RETAINER, FUEL PUMP GAUGE

main77144-35010iGRJ120..CHI200309-200409

77169AGASKET, FUEL SUCTION TUBE SET

main77169-35010iGRJ120..CHI200409-201003

sub77169-30050

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35730iGRJ120..GCC,GEN;RZJ120,TRJ120..GCC200209-200908

sub77201-35780

main77201-60810iGRJ120,RZJ120..ARL200209-200908

main77201-60870iLJ125,RZJ125,TRJ125..GEN200209-200908

main77201-60880iRZJ125..GCC;GRJ125,TRJ125..ATM200209-200908

main77201-60830iGRJ120..ARL200301-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77201-60840iGRJ120..GCC,GEN200301-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77201-60850supersedes 77201-60820iRZJ120..GEN;KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L

77204ATUBE, FUEL TANK RETURN

main77204-35040iGRJ120..CHI200409-201003

main77204-35050iKZJ120,LJ120200209-200908

main77204-35060iLJ120200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77204-35070iKZJ120200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77204-60040supersedes 77204-60050iKDJ120200608-200908

FUEL TANK-W(FUEL SUB TANK) 180L

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-35420iGRJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

main77209-35430iKDJ120,KZJ120,LJ120200209-200908

main77209-60350iKDJ120200608-200908

FUEL TANK-W(FUEL SUB TANK) 180L

77213HOSE, FUEL TANK SUB INLET

main95312-13020iTRJ125..GEN200508

L=200,VIETNAM SPEC

main95313-13020iTRJ125..GEN;GRJ125,LJ125,RZJ125..4FC,5F200209

L=200

main77213-60240iGRJ120..(5FC,6F)..(ARL,GCC,GEN)200209-200508

FUEL TANK-W(FUEL SUB TANK) 180L

main77213-60290iGRJ120..ARL,GCC,GEN200508

FUEL TANK-W(FUEL SUB TANK) 180L

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0G010iGRJ120..CHI200507-201003

(L)

main77213-35380iTRJ120..LHD..5F..GEN200508-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77213-35390iRZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77213-60250iTRJ125..GEN;GRJ125,LJ125,RZJ125..4FC,5F200209-200908

main77213-60260iTRJ125..GEN200508-200908

OTHER CO IN S.AMERICA & NEW CALEDONIA

77241LTUBE, FUEL TANK SUCTION

main77241-35450iKDJ120,KZJ120,LJ120200209

77241WCLIP, TUBE JOINT

main77241-33011×2iGRJ120200912-201003

main77241-60320×2iKDJ120,KZJ120,LJ120200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L

77253CHOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE)

main77259-25130iKDJ120,KZJ120,LJ120200608

main95332-10018iKZJ120,LJ120200209-200607

sub95338-10018

main77259-60700iKDJ120200608

FUEL TANK-W(FUEL SUB TANK) 180L

77257EHOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE)

main95333-06020iKZJ120,LJ120200209-200607

main95337-06018iKZJ120,LJ120200608

77276PROTECTOR, FUEL HOSE

main77276-35040iGRJ120..CHI200309-201003

77277TUBE, FUEL RETURN, NO.1

main77208-60140iRZJ120..GEN;GRJ120..(5FC,6F)..(GCC,GEN);GRJ120..(4FC,5F)..(ARL,GCC,GEN);KDJ120,KZJ120,LJ120,TRJ120..ARL,GEN200209-200908

FUEL TANK-W(FUEL SUB TANK) 180L

main77208-60160iGRJ120..ARL200508-200908

FUEL TANK-W(FUEL SUB TANK) 180L

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60080iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

77286PCLAMP, FUEL TUBE, NO.8

main77285-35620iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-60100iGRJ120..CHI200501-201003

main77291-60110iGRJ125,LJ125,RZJ125,TRJ125200209-200908

77295CGROMMET, FUEL TUBE

main77295-27010iKDJ120200209

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28050-A0iGRJ120..VX..CHI200606-201003

IVORY,TRIM0#

main77306-28050-C0iGRJ120..CHI200309-201003

BLACK,TRIM1#

main77306-58010-A0iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200710-200908

IVORY,TRIM0#

main77306-58010-C0iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200710-200908

BLACK,TRIM1#

77310ACAP ASSY, FUEL TANK

main77300-33062iGRJ12#,RZJ12#200209-200308

main77300-35020iKZJ120,LJ12#200209-200308

main77300-35040iGRJ120..CHI200309-201003

sub77300-47010

main77300-35050iKDJ120,KZJ120,LJ12#200308-200908

77316GASKET, FUEL TANK CAP

main77316-33042iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

77350LID ASSY, FUEL FILLER OPENING

main77350-60070iGRJ120..CHI200309-201003

main77350-60080iGRJ125,LJ125,RZJ125,TRJ125200209-200908

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

main77360-35040iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200410-200908

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

77391ARING, FUEL INLET BOX

main77391-60050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-35090iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

main77601-35091iGRJ120200910-201003

main77601-60280iGRJ125,LJ125,RZJ125,TRJ125200209-200908

sub77601-60410

sub77617-60170

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-35030iGRJ120..CHI200309-201003

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-35060iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

main77606-60150iGRJ125,LJ125,RZJ125,TRJ125200209-200908

77611APIN (FOR FUEL TANK BAND)

main77653-35040×2iGRJ120..CHI200309-201003

main77653-60070×2iGRJ125,LJ125,RZJ125,TRJ125200209-200908

77643APROTECTOR, FUEL TANK, NO.3

main77643-35020iGRJ120..CHI200309-200409

main77643-35040iTRJ120200408-200908

77644BOLT, FUEL TANK

main77644-35030×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

77651BCUSHION, FUEL TANK

main77651-35070iGRJ120..CHI200309-200409

77652ACUSHION, FUEL TANK, NO.2

main77652-35060iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

77681ASEAT, FUEL TANK BAND

main77681-35030iGRJ120..CHI200309-200704

main77681-35031iGRJ120..CHI200705-201003

sub77681-60170

77682SEAT, FUEL TANK BAND, LH

main77681-35040iGRJ120..CHI200309-200704

main77681-35041iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200705-200908

8401

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

9011906361

main90119-06361

9011908A33

main90119-08A33

9017908234

main90179-08234

9018906212

main90189-06212

9026906017

main90269-06017

9046022002

main90460-22002

9046046004

main90460-46004

9046055003

main90460-55003

9046400042

main90464-00042

9046814032

main90468-14032

9046906005

main90469-06005

9095904001

main90959-04001

91651B0820

main91651-B0820

9613241500

main96132-41500

9613251100

main96132-51100

57 parts on this diagram · 17 diagrams in section
