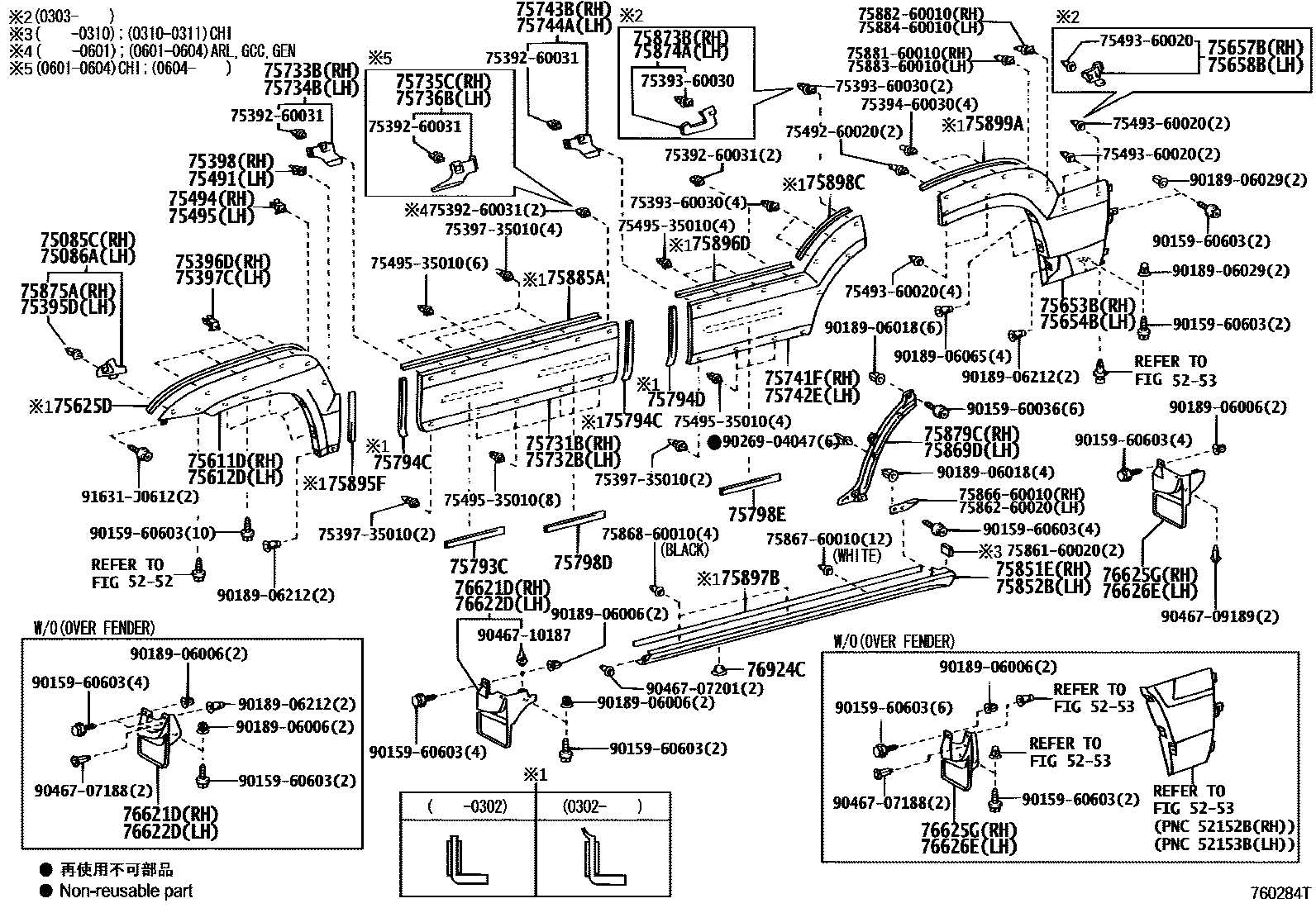

SPOILER & SIDE MUDGUARD
5252
5253
75085CMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH
75086AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH
75395DCLIP, OUTSIDE MOULDING, NO.1
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
WHITE,056
SILVER ME.,1D4 ,KL5
SILVER ME.,KL5
DK.GRAY M.M.,KL2 ,KL3
BLACK,202
DK.GREEN MC.,6Q7
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
WHITE,056
SILVER ME.,1D4 ,KL5
SILVER ME.,KL5
DK.GRAY M.M.,KL2 ,KL3
BLACK,202
DK.GREEN MC.,6Q7
75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
WHITE,056
SILVER ME.,1D4 ,KL5
SILVER ME.,KL5
DK.GRAY M.M.,KL2 ,KL3
DK.GRAY M.M.,KL1 ,KL2 ,KL3
BLACK,202
DK.GREEN MC.,6Q7
75654BMOULDING, QUARTER, OUTSIDE NO.4
WHITE,056
SILVER ME.,1D4 ,KL5
SILVER ME.,KL5
DK.GRAY M.M.,KL1 ,KL2 ,KL3
DK.GRAY M.M.,KL2 ,KL3
BLACK,202
DK.GREEN MC.,6Q7
75657BMOULDING, QUARTER PANEL, LOWER REAR RH
75658BMOULDING, QUARTER PANEL, LOWER REAR LH
75731BMOULDING, FRONT DOOR, OUTSIDE RH
WHITE,056
SILVER ME.,1D4 ,KL5
DK.GRAY M.M.,KL2 ,KL3
BLACK,202
DK.GREEN MC.,6Q7
75732BMOULDING, FRONT DOOR, OUTSIDE LH
WHITE,056
SILVER ME.,1D4 ,KL5
DK.GRAY M.M.,KL2 ,KL3
BLACK,202
DK.GREEN MC.,6Q7
75735CMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736BMOULDING, FRONT DOOR, OUTSIDE LOWER LH
75741FMOULDING, REAR DOOR, OUTSIDE RH
75742EMOULDING, REAR DOOR, OUTSIDE LH
75743BMOULDING, REAR DOOR OUTSIDE, UPPER REAR RH
75744AMOULDING, REAR DOOR OUTSIDE, UPPER REAR LH
75793CPAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75794CPAD, FRONT DOOR OUTSIDE MOULDING, REAR
75794DPAD, REAR DOOR OUTSIDE MOULDING, RR
75798DPAD, FRONT DOOR OUTSIDE MOULDING, REAR
75798EPAD, REAR DOOR OUTSIDE MOULDING, RR
75851EMOULDING, BODY ROCKER PANEL, RH
75852BMOULDING, BODY ROCKER PANEL, LH
75869DRETAINER, QUARTER OPENING, LH
75873BMOULDING, QUARTER WHEEL OPENING, RH
75874AMOULDING, QUARTER WHEEL OPENING, LH
75875ACLIP, FRONT FENDER WHEEL OPENING MOULDING
75879CRETAINER, QUARTER OPENING, RH
75885ATAPE, MOULDING, NO.6
75895FTAPE, MOULDING, NO.1
75896DTAPE, MOULDING, NO.2
75897BTAPE, MOULDING, NO.3
75898CTAPE, MOULDING, NO.4
75899ATAPE, MOULDING, NO.5
76621DMUDGUARD, FRONT FENDER, RH
GRAY ME.,056 ,6Q7 ,KL1 ,KL2 ,KL3 ,KL5
GRAY ME.,056 ,1D4 ,202 ,6Q7 ,KL2 ,KL3 ,KL5
76622DMUDGUARD, FRONT FENDER, LH
GRAY ME.,056 ,1D4 ,202 ,6Q7 ,KL2 ,KL3 ,KL5
GRAY ME.,056 ,6Q7 ,KL1 ,KL2 ,KL3 ,KL5
76625GMUDGUARD, QUARTER PANEL, REAR RH
GRAY ME.,056 ,6Q7 ,KL1 ,KL2 ,KL3 ,KL5
GRAY ME.,056 ,1D4 ,202 ,6Q7 ,KL2 ,KL3 ,KL5
76626EMUDGUARD, QUARTER PANEL, REAR LH
GRAY ME.,056 ,6Q7 ,KL1 ,KL2 ,KL3 ,KL5
GRAY ME.,056 ,1D4 ,202 ,6Q7 ,KL2 ,KL3 ,KL5
76924CRETAINER, SIDE MUDGUARD, NO.2
7539260031RETAINER, OUTSIDE MOULDING
main75392-60031
7539360030RETAINER, OUTSIDE MOULDING, NO.2
main75393-60030
7539460030RETAINER, OUTSIDE MOULDING, NO.3
main75394-60030
7539735010CLIP, BACK DOOR MOULDING, NO.3
main75397-35010
7549260020RETAINER, OUTSIDE MOULDING, NO.5
main75492-60020
7549360020RETAINER, OUTSIDE MOULDING, NO.4
main75493-60020
7549535010CLIP, OUTSIDE MOULDING, NO.4
main75495-35010
7586160020MOULDING, QUARTER PANEL BACK, RH
main75861-60020
7586260020MOULDING, QUARTER PANEL BACK, LH
main75862-60020
7586660010MOULDING, REAR QUARTER PANEL, LH
main75866-60010
7586760010MOULDING, FRONT PANEL
main75867-60010
7586860010ORNAMENT, BACK DOOR OUTSIDE, RH
main75868-60010
7588160010SPACER, REAR COMBINATION RIM, INSIDE RH
main75881-60010
7588260010SPACER, REAR COMBINATION RIM, INSIDE LH
main75882-60010
7588360010
main75883-60010
7588460010
main75884-60010
9015960036
main90159-60036
9015960603
main90159-60603
9018906006
main90189-06006
9018906018
main90189-06018
9018906029
main90189-06029
9018906065
main90189-06065
9018906212
main90189-06212
9026904047
main90269-04047
9046707188
main90467-07188
9046707201
main90467-07201
9046709189
main90467-09189
9046710187
main90467-10187
91631J0612
main91631-J0612
80 parts on this diagram · 2 diagrams in section
