EPC Data

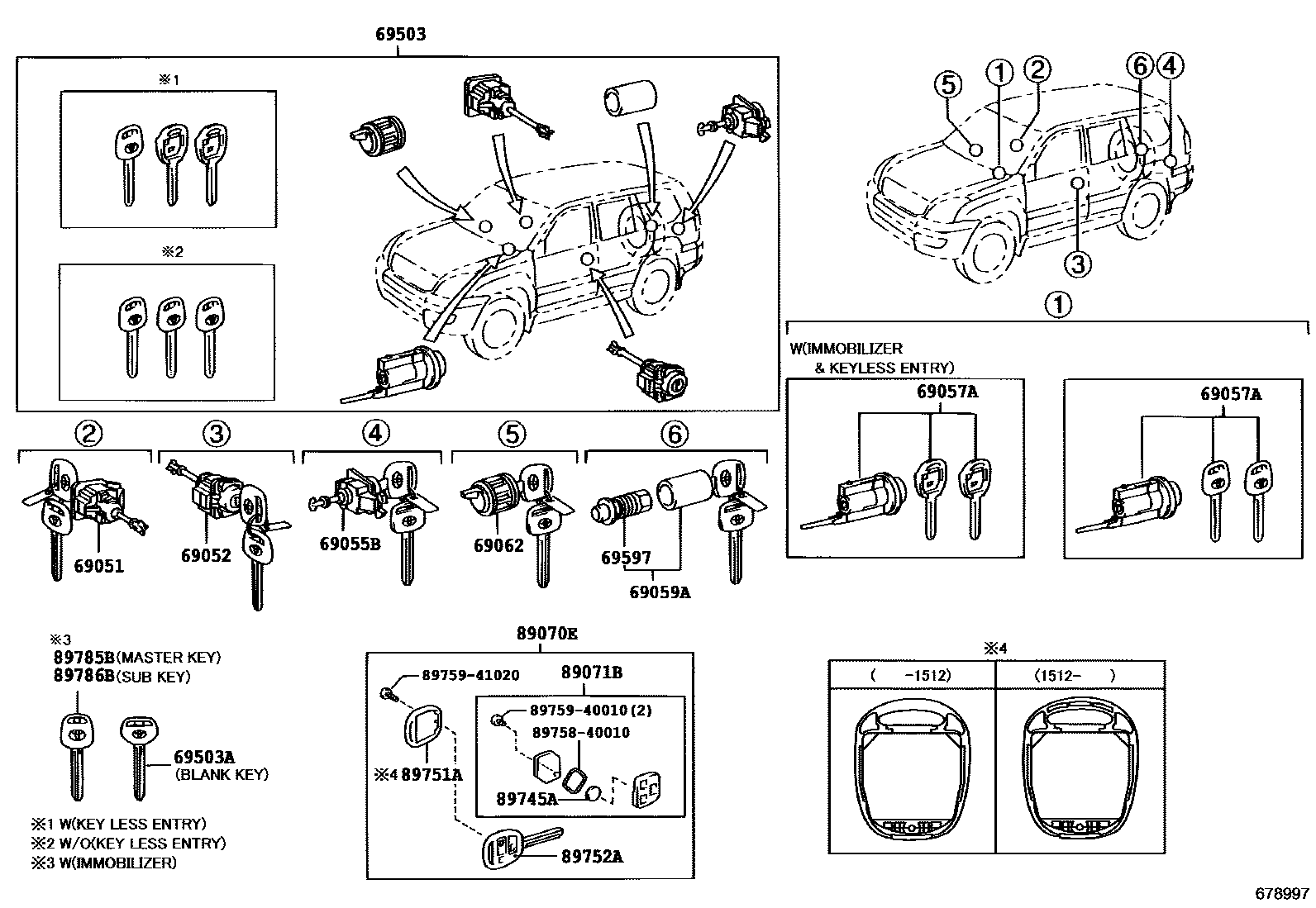

LOCK CYLINDER SET

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-60250i200209
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-60240i200209-200409
69055BCYLINDER & KEY SET, BACK DOOR LOCK
main69055-60270i200209
W/WIRELESS DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-60360i200209-200604
W/WIRELESS DOOR LOCK
sub69057-60361
main69057-60360i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub69057-60361
main69057-60360i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub69057-60361
main69057-60360i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub69057-60361
main69057-60360i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER
sub69057-60361
main69057-60360i200301-200604
sub69057-60361
main69057-60361i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main69057-60361i200605
ANTI-THEFT SYSTEM-IMMOBILIZER
main69057-60361i200605
W/WIRELESS DOOR LOCK
main69057-60361i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main69057-60361i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main69057-60420i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main69057-60420i200209
ANTI-THEFT SYSTEM-IMMOBILIZER
main69057-60430i200209
main69057-60560i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub69057-60561
main69057-60560i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub69057-60561
main69057-60560i200209-200604
W/WIRELESS DOOR LOCK
sub69057-60561
main69057-60560i200301-200604
sub69057-60561
main69057-60561i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main69057-60561i200605
W/WIRELESS DOOR LOCK
main69057-60561i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main69057-60570i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main69057-60570i200209
ANTI-THEFT SYSTEM-IMMOBILIZER
main69057-60580i200209
69059ACYLINDER & KEY SET, SPARE WHEEL LOCK
main69059-60220i200209
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
main69059-60220i200309-200409
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-60160i200209
GLOBE BOX-WITH(KEY)
main69056-60160i200309-200409
69503CYLINDER SET, LOCK
main69005-6B430i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub69005-6B431
main69005-6B430i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub69005-6B431
main69005-6B430i200408-200604
W/WIRELESS DOOR LOCK
sub69005-6B431
main69005-6B431i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main69005-6B431i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main69005-6B431i200605
W/WIRELESS DOOR LOCK
main69005-6B680i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub69005-6B681
main69005-6B680i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER
sub69005-6B681
main69005-6B680i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub69005-6B681
main69005-6B680i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub69005-6B681
main69005-6B680i200301-200604
sub69005-6B681
main69005-6B680i200408-200604
W/WIRELESS DOOR LOCK
sub69005-6B681
main69005-6B681i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main69005-6B681i200605
ANTI-THEFT SYSTEM-IMMOBILIZER
main69005-6B681i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main69005-6B681i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main69005-6B681i200605
W/WIRELESS DOOR LOCK
main69005-6B700i200209-200604
W/WIRELESS DOOR LOCK
sub69005-6B701
main69005-6B701i200605
W/WIRELESS DOOR LOCK
main69005-6B710i200209-200604
W/WIRELESS DOOR LOCK
sub69005-6B711
main69005-6B711i200605
W/WIRELESS DOOR LOCK
main69005-6B790i200408-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B791
main69005-6B790i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B791
main69005-6B790i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B791
main69005-6B791i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main69005-6B791i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main69005-6B791i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main69005-6B800i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B801
main69005-6B800i200301-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B801
main69005-6B800i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B801
main69005-6B800i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B801
main69005-6B800i200408-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B801
main69005-6B800i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B801
main69005-6B801i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B681
main69005-6B801i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B681
main69005-6B801i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B681
main69005-6B801i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B681
main69005-6B801i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B681
main69005-6B801i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B681
main69005-6B820i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B821
main69005-6B821i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main69005-6B830i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B831
main69005-6B830i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B831
main69005-6B831i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
main69005-6B831i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main69005-6B850i200209-200604
W/WIRELESS DOOR LOCK
sub69005-6B851
main69005-6B850i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6B850i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6B850i200408-200604
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6B850i200301-200604
sub69005-6B851
main69005-6B851i200605
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main69005-6B851i200605
W/WIRELESS DOOR LOCK
main69005-6B851i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main69005-6B851i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main69005-6B860i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B860i200209-200604
W/WIRELESS DOOR LOCK
sub69005-6B861
main69005-6B860i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B860i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B860i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B860i200301-200604
GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B860i200309-200511
sub69005-6B861
main69005-6B860i200408-200604
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B861i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&GLOBE BOX-WITH(KEY)
main69005-6B861i200512
main69005-6B861i200605
GLOBE BOX-WITH(KEY)
main69005-6B861i200605
W/WIRELESS DOOR LOCK
main69005-6B861i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&GLOBE BOX-WITH(KEY)
main69005-6B861i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main69005-6B861i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main69005-6B861i200605
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main69005-6B870i200209-200604
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B871
main69005-6B871i200605
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6B890i200209-200604
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B891
main69005-6B890i200209-200604
GLOBE BOX-WITH(KEY)
sub69005-6B891
main69005-6B891i200605
GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6B891i200605
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C020i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C021
main69005-6C020i200408-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C021
main69005-6C020i200301-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6C021
main69005-6C020i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6C021
main69005-6C020i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C021
main69005-6C021i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6C021i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6C021i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B851
main69005-6C021i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B851
main69005-6C021i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B851
main69005-6C030i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C030i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C030i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C030i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C030i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6C031
main69005-6C030i200301-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6C031
main69005-6C030i200301-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C030i200408-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C031i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C031i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub69005-6B861
main69005-6C031i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C031i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub69005-6B861
main69005-6C031i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C031i200605
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C031i200605
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C031i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6B861
main69005-6C040i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C041
main69005-6C041i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C021
main69005-6C050i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6C051
main69005-6C050i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C051
main69005-6C051i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C051i200605
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
sub69005-6C031
main69005-6C060i200209
ANTI-THEFT SYSTEM-IMMOBILIZER
sub69005-6C100
main69005-6C060i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub69005-6C100
main69005-6C060i200408
sub69005-6C100
main69005-6C070i200408
sub69005-6C110
main69005-6C070i200209
ANTI-THEFT SYSTEM-IMMOBILIZER
sub69005-6C110
main69005-6C070i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub69005-6C110
main69005-6C080i200209
sub69005-6C120
main69005-6C090i200209
sub69005-6C130
main69005-6C100i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&GLOBE BOX-WITH(KEY)
main69005-6C100i200408
GLOBE BOX-WITH(KEY)
main69005-6C100i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&GLOBE BOX-WITH(KEY)
main69005-6C110i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&GLOBE BOX-WITH(KEY)
main69005-6C110i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&GLOBE BOX-WITH(KEY)
main69005-6C110i200408
GLOBE BOX-WITH(KEY)
main69005-6C120i200209
GLOBE BOX-WITH(KEY)
main69005-6C130i200209
GLOBE BOX-WITH(KEY)
69503AKEY, BLANK
main90999-00200i200209-200408
SUB KEY,W(*68),SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main90999-00200i200209-200408
SUB KEY,W(*68),GLOBE BOX-WITH(KEY)
main90999-00200i200209
SUB KEY,W(*68),SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&GLOBE BOX-WITH(KEY)
main90999-00200i200209-200408
SUB KEY,W(*68),W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main90999-00251i200209-200408
MASTER KEY,W(*68),W/WIRELESS DOOR LOCK
main90999-00251i200209-200408
MASTER KEY,W(*68)
main90999-00251i200209-200408
MASTER KEY,W(*68),GLOBE BOX-WITH(KEY)
main90999-00251i200209-200408
MASTER KEY,W(*68),SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
69597NUT, SPARE WHEEL LOCK
main69597-60090i200209
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
main69597-60090i200309-200409
89070ETRANSMITTER ASSY, DOOR CONTROL
main89070-60761i200301-200408
main89070-60761i200209-200408
W/WIRELESS DOOR LOCK
main89070-60790i200303-200408
SOUTH AFRICA SPEC&W/WIRELESS DOOR LOCK
sub89070-60791
main89070-60790i200303-200408
SOUTH AFRICA SPEC
sub89070-60791
main89070-60790i200303-200408
CHINA SPEC
sub89070-60791
main89070-60790i200303-200408
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89070-60791
main89070-60790i200408-200604
W/WIRELESS DOOR LOCK
sub89070-60791
main89070-60791i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub89070-60792
main89070-60791i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub89070-60792
main89070-60791i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub89070-60792
main89070-60791i200605-200706
W/WIRELESS DOOR LOCK
sub89070-60792
main89070-60791i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER
sub89070-60792
main89070-60792i200707
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub89070-60793
main89070-60792i200707
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub89070-60793
main89070-60792i200707
W/WIRELESS DOOR LOCK
sub89070-60793
main89070-60792i200707
ANTI-THEFT SYSTEM-IMMOBILIZER
sub89070-60793
main89070-60792i200707
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub89070-60793
main89070-60A20i200408-200604
CHINA SPEC
sub89070-60A21
main89070-60A20i200309-200604
sub89070-60A21
main89070-60A20i200408-200604
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89070-60A21
main89070-60A21i200605-200705
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89070-60A22
main89070-60A21i200605-200606
CHINA SPEC
sub89070-60A22
main89070-60A22i200706
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89070-60A23
main89070-60C10i200702-200706
W/WIRELESS DOOR LOCK
sub89070-60C11
main89070-60C11i200707
W/WIRELESS DOOR LOCK
sub89070-60C12
main89070-6A030i200209-200303
SOUTH AFRICA SPEC&W/WIRELESS DOOR LOCK
sub89070-60790
main89070-6A030i200209-200303
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89070-60790
main89070-6A030i200301-200303
CHINA SPEC
sub89070-60790
main89070-6A030i200301-200303
SOUTH AFRICA SPEC
sub89070-60790
main89070-6A040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER
sub89070-6A041
main89070-6A040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub89070-6A041
main89070-6A040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub89070-6A041
main89070-6A040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
sub89070-6A041
main89070-6A040i200301-200604
sub89070-6A041
main89070-6A040i200408-200604
W/WIRELESS DOOR LOCK
sub89070-6A041
main89070-6A041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER
main89070-6A041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89070-6A041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main89070-6A041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89070-6A041i200605-200702
W/WIRELESS DOOR LOCK
main89070-6A050i200209-200604
W/WIRELESS DOOR LOCK
sub89070-6A051
main89070-6A051i200605-200702
W/WIRELESS DOOR LOCK
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-28040i200209-200702
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89071-28040i200209-200702
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89071-28040i200209-200702
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89071-28040i200209-200702
W/WIRELESS DOOR LOCK
main89071-33061i200702-200706
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89071-33061i200702-200706
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89071-33061i200702-200706
W/WIRELESS DOOR LOCK
main89071-33061i200702-200706
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89071-42050i200301-200408
CHINA SPEC
main89071-42050i200702
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89071-42050i200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main89071-42050i200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89071-42050i200408
W/WIRELESS DOOR LOCK
main89071-42050i200702
ANTI-THEFT SYSTEM-IMMOBILIZER
main89071-42050i200209-200408
SOUTH AFRICA SPEC&W/WIRELESS DOOR LOCK
main89071-42050i200209-200408
CHINA SPEC&W/WIRELESS DOOR LOCK
main89071-42050i200301-200408
SOUTH AFRICA SPEC
main89071-42060i200408
CHINA SPEC&W/WIRELESS DOOR LOCK
main89071-42060i200309-200409
main89071-42060i200408-200606
CHINA SPEC
main89071-60190i200301-200408
main89071-60190i200209-200408
W/WIRELESS DOOR LOCK
main89071-60220i200209-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main89071-60220i200209-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89071-60220i200209-200702
ANTI-THEFT SYSTEM-IMMOBILIZER
main89071-60220i200209-200702
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89071-60220i200301-200702
main89071-60220i200408-200702
W/WIRELESS DOOR LOCK
89745ABATTERY, TRANSMITTER
main89745-40010i200209
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89745-40010i200209
W/WIRELESS DOOR LOCK
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89745-40010i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89745-40010i200209
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89745-40010i200209
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89745-40010i200209-200312
CHINA SPEC&W/WIRELESS DOOR LOCK
main89745-40010i200209-200312
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89745-40010i200309-200409
main89745-40010i200209-200408
SOUTH AFRICA SPEC&W/WIRELESS DOOR LOCK
main89745-40010i200209-200408
SOUTH AFRICA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
89751ACOVER, TRANSMITTER HOUSING
main89751-13010i200301-200312
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub89751-13012
main89751-13010i200301-200312
CHINA SPEC
sub89751-13012
main89751-13010i200312-200512
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13010i200209-200408
SOUTH AFRICA SPEC&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13010i200209-200408
SOUTH AFRICA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13010i200312-200512
W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13010i200209-200312
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13010i200209-200312
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13010i200301-200408
SOUTH AFRICA SPEC
sub89751-13012
main89751-13010i200301-200408
SOUTH AFRICA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub89751-13012
main89751-13011i200512-200706
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13011i200512-200706
W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13011i200702-200706
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-13012
main89751-13011i200702-200706
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-13012
main89751-13011i200702-200706
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-13012
main89751-28020i200408-200511
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-35080
main89751-28020i200408-200511
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89751-35080
main89751-28020i200408-200511
CHINA SPEC
sub89751-35080
main89751-28020i200408-200511
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub89751-35080
main89751-28020i200309-200512
sub89751-35080
main89751-28021i200512-200706
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-28022
main89751-28021i200512-200606
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE
sub89751-28022
main89751-28021i200512-200606
CHINA SPEC
sub89751-28022
main89751-28021i200512-200706
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89751-28022
main89751-28022i200706
CHINA SPEC&W/WIRELESS DOOR LOCK
sub89751-35080
main89751-28022i200706
CHINA SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-35080
main89751-44020i200209-200408
W/WIRELESS DOOR LOCK
sub89751-44021
main89751-44020i200209-200408
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-44021
main89751-44020i200301-200408
sub89751-44021
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-44041
main89751-44040i200209-200604
W/WIRELESS DOOR LOCK
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub89751-44041
main89751-44040i200209-200604
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-44041
main89751-44040i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-44041
main89751-44040i200209-200604
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-44041
main89751-44040i200209-200604
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-44041
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89751-44041i200605-200702
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89751-44041i200605-200702
W/WIRELESS DOOR LOCK
main89751-44041i200605-200702
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
main89751-44041i200605-200702
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89751-44041i200605-200702
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
main89751-60060i200707
W/WIRELESS DOOR LOCK
sub89751-35070
main89751-60060i200707
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-35070
main89751-60060i200707
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK
sub89751-35070
main89751-60060i200707
W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-35070
main89751-60060i200707
SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE&W/WIRELESS DOOR LOCK&GLOBE BOX-WITH(KEY)
sub89751-35070
89752ACASE, TRANSMITTER HOUSING
main89752-60050i200209-200408
SOUTH AFRICA SPEC&W/WIRELESS DOOR LOCK
main89752-60050i200209
W/WIRELESS DOOR LOCK
main89752-60050i200209
ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89752-60050i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
main89752-60050i200209
CHINA SPEC&W/WIRELESS DOOR LOCK
main89752-60050i200309
89785BTRANSMITTER, TRANSPONDER KEY MASTER
main89785-60160i200209
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89785-60160i200209
ANTI-THEFT SYSTEM-IMMOBILIZER
89786BTRANSMITTER, TRANSPONDER KEY SUB
main89786-60170i200209-200409
BLANK KEY
main89786-60170i200209
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
main89786-60170i200209
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER
main89786-60170i200209
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER&W/WIRELESS DOOR LOCK
main89786-60170i200209
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&W/WIRELESS DOOR LOCK
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020

19 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
