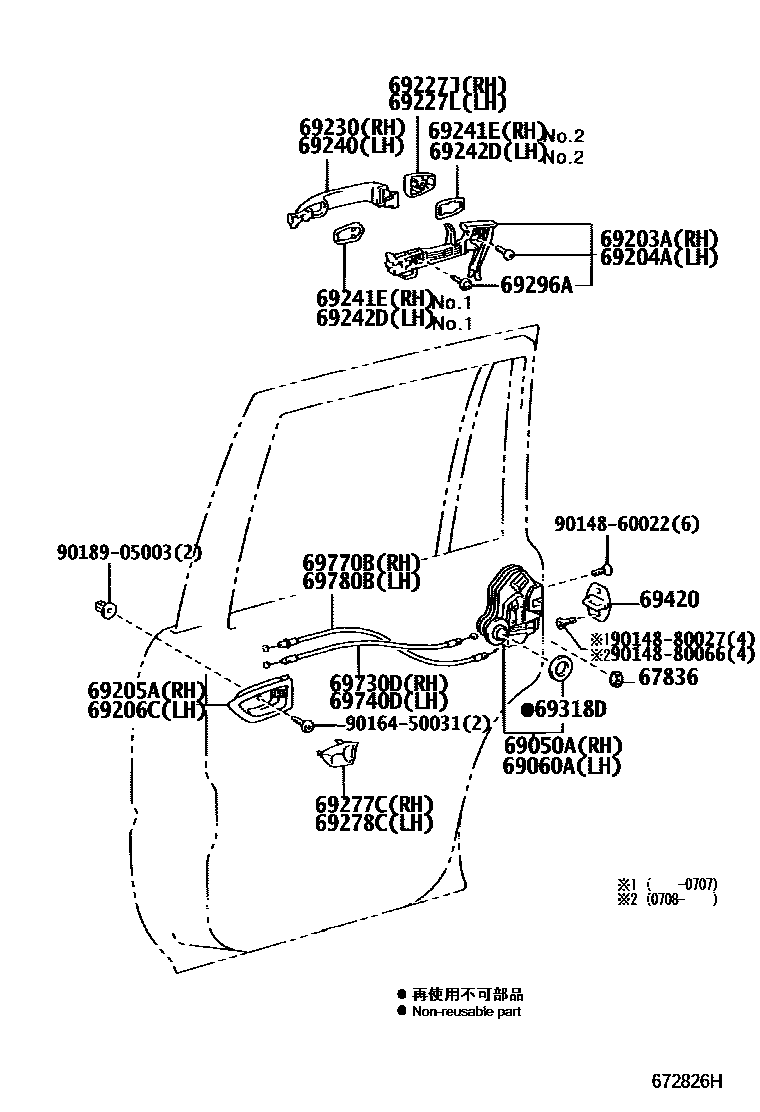

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040×2iGRJ120..CHI200309-200409

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-60090iGRJ120..CHI200309-200610

main69050-60091iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200610

main69050-0G010supersedes 69050-60091iGRJ120..CHI200501-200610

POWER DOOR LOCK-WITH(MADE IN CHINA)

main69050-0G011supersedes 69050-60091iGRJ120..CHI200611

POWER DOOR LOCK-WITH(MADE IN CHINA)

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-60090iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200609

main69060-60091iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200610

main69060-0G010supersedes 69060-60091iGRJ120..CHI200501-200610

POWER DOOR LOCK-WITH(MADE IN CHINA)

main69060-0G011supersedes 69060-60091iGRJ120..CHI200611

POWER DOOR LOCK-WITH(MADE IN CHINA)

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-60010iGRJ120..CHI200309-200409

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-60010iGRJ120..5FC..CHI200309

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-60100-A0supersedes 69205-60090-A0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

IVORY,TRIM00

main69205-60100-B0supersedes 69205-60090-B0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

MD.GRAY,TRIM10

main69205-60100-C0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

BLACK,TRIM00,10

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-60100-A0supersedes 69206-60090-A0iGRJ120..VX..CHI200606

IVORY,TRIM0#

main69206-60100-B0supersedes 69206-60090-B0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

MD.GRAY,TRIM10

main69206-60100-C0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

BLACK,TRIM00,10

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-60010iKZJ120,LJ120,RZJ120..GX200211-200301

main69227-60020-A0supersedes 69227-60020-A0iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

WHITE,056

main69227-60020-A1supersedes 69227-60020-A1iGRJ120,KDJ120,TRJ120..ARL,GCC200209-200908

WHITE PEARL CS.,070

main69227-60020-B0supersedes 69227-60020-B0iGRJ120..CHI200409

SILVER ME.,1D4

main69227-60020-B1supersedes 69227-60020-B1iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GRAY M.M.,1E9

main69227-60020-C0iKZJ120,LJ120,RZJ120..GX200209-200211

BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4

main69227-60020-D1supersedes 69227-60020-D1iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DARK RED MC.,3Q8

main69227-60020-E1iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

BEIGE ME.,4R4

main69227-60020-F0supersedes 69227-60020-F0iKZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN)200209-200908

CHAMPAGNE M.M.,587

main69227-60020-G0supersedes 69227-60020-G0iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GREEN MC.,6Q7

main69227-60020-J2supersedes 69227-60020-J2iTRJ120;GRJ120..(5FC,6F)..(ARL,GCC,GEN)200209-200508

DARK BLUE M.M.,8R4

main69227-60020-R4iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

DK.BLUE MC.,8S6

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-60010iKZJ120,LJ120,RZJ120..GX200211-200301

main69227-60020-A0supersedes 69227-60020-A0iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

WHITE,056

main69227-60020-A1supersedes 69227-60020-A1iGRJ120,KDJ120,TRJ120..ARL,GCC200209-200908

WHITE PEARL CS.,070

main69227-60020-B0supersedes 69227-60020-B0iGRJ120..CHI200409

SILVER ME.,1D4

main69227-60020-B1supersedes 69227-60020-B1iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GRAY M.M.,1E9

main69227-60020-C0iKZJ120,LJ120,RZJ120..GX200209-200211

BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4

main69227-60020-D1supersedes 69227-60020-D1iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DARK RED MC.,3Q8

main69227-60020-E1iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

BEIGE ME.,4R4

main69227-60020-F0supersedes 69227-60020-F0iKZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN)200209-200908

CHAMPAGNE M.M.,587

main69227-60020-G0supersedes 69227-60020-G0iGRJ120..CHI200309

DK.GREEN MC.,6Q7 ,KL2

main69227-60020-J2supersedes 69227-60020-J2iTRJ120;GRJ120..(5FC,6F)..(ARL,GCC,GEN)200209-200508

DARK BLUE M.M.,8R4

main69227-60020-R4iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

DK.BLUE MC.,8S6

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-28070-A2supersedes 69211-28070-A2iGRJ120..CHI200309-200409

WHITE,056 ,KL1 ,KL5

main69211-28070-A3supersedes 69211-28070-A3iGRJ120,KDJ120,TRJ120..ARL,GCC200209-200908

WHITE PEARL CS.,070

main69211-28070-B0supersedes 69211-28070-B0iGRJ120..CHI200409

SILVER ME.,1D4

main69211-28070-B4supersedes 69211-28070-B4iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GRAY M.M.,1E9

main69211-28070-C1iKZJ120,LJ120,RZJ120..GX200209-200211

BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4

main69211-28070-D3supersedes 69211-28070-D3iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DARK RED MC.,3Q8

main69211-28070-E1iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

BEIGE ME.,4R4

main69211-28070-F2supersedes 69211-28070-F2iTRJ120;GRJ120..(5FC,6F)..(ARL,GCC,GEN)200209-200508

CHAMPAGNE M.M.,587

main69211-28070-G1supersedes 69211-28070-G1iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GREEN MC.,6Q7

main69211-28070-J3supersedes 69211-28070-J3iKZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN)200209-200908

DARK BLUE M.M.,8R4

main69211-28070-R9iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

DK.BLUE MC.,8S6

main69211-60060iKZJ120,LJ120,RZJ120..GX200211-200301

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-28070-A2supersedes 69211-28070-A2iGRJ120..CHI200409

WHITE,056 ,KL5

main69211-28070-A3supersedes 69211-28070-A3iGRJ120,KDJ120,TRJ120..ARL,GCC200209-200908

WHITE PEARL CS.,070

main69211-28070-B0supersedes 69211-28070-B0iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

SILVER ME.,1D4

main69211-28070-B4supersedes 69211-28070-B4iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GRAY M.M.,1E9

main69211-28070-C1iRZJ120..4FC..GCC;GRJ120,RZJ120..5F..ARL200301-200408

BLACK,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4

main69211-28070-D3supersedes 69211-28070-D3iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DARK RED MC.,3Q8

main69211-28070-E1iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

BEIGE ME.,4R4

main69211-28070-F2supersedes 69211-28070-F2iKZJ120..GEN;GRJ120..(4FC,5F)..(ARL,GCC,GEN)200209-200908

CHAMPAGNE M.M.,587

main69211-28070-G1supersedes 69211-28070-G1iKZJ120..GEN;GRJ120,KDJ120,TRJ120..ARL,GCC,GEN200209-200908

DK.GREEN MC.,6Q7

main69211-28070-J3supersedes 69211-28070-J3iTRJ120;GRJ120..(5FC,6F)..(ARL,GCC,GEN)200209-200508

DARK BLUE M.M.,8R4

main69211-28070-R9iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200508-200908

DK.BLUE MC.,8S6

main69211-60060iKZJ120,LJ120,RZJ120..GX200211-200301

NO PAINT REQ.

69241EPAD, REAR DOOR OUTSIDE HANDLE, RH

main69241-28060iGRJ120..CHI200309

NO.1

main69242-33030iGRJ120..CHI200706

NO.2

main69242-60030iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200704

NO.2

69242DPAD, REAR DOOR OUTSIDE HANDLE, LH

main69241-28060iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209

NO.1

main69242-33030iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200705

NO.2

main69242-60030iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200704

NO.2

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-30030-A0iGRJ120..VX..(4FC,5F);GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN)200209-200908

IVORY,TRIM0#

main69297-30030-B4iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

MD.GRAY,TRIM10

main69297-30030-C0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

BLACK,TRIM00,10

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-30030-A0iGRJ120..VX..CHI200606

IVORY,TRIM0#

main69298-30030-B4iGRJ120..VX..(4FC,5F);GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..GX..(ARL,GCC,GEN)200209-200908

MD.GRAY,TRIM1#

main69298-30030-C0iGRJ120,KDJ120,KZJ120..VX..(ARL,GCC,GEN)200408-200908

BLACK,TRIM00,10

69296ASCREW, DOOR INSIDE HANDLE

main69296-48010×2supersedes 69296-48010iGRJ120..CHI200309-201003

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010×2iGRJ120..CHI200309-200409

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-60010iGRJ120..5FC..CHI200309

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-60010iGRJ120..CHI200309-200409

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-60030iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-60030iGRJ120..5FC..CHI200309

9014860022

main90148-60022

9014880027

main90148-80027

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003
