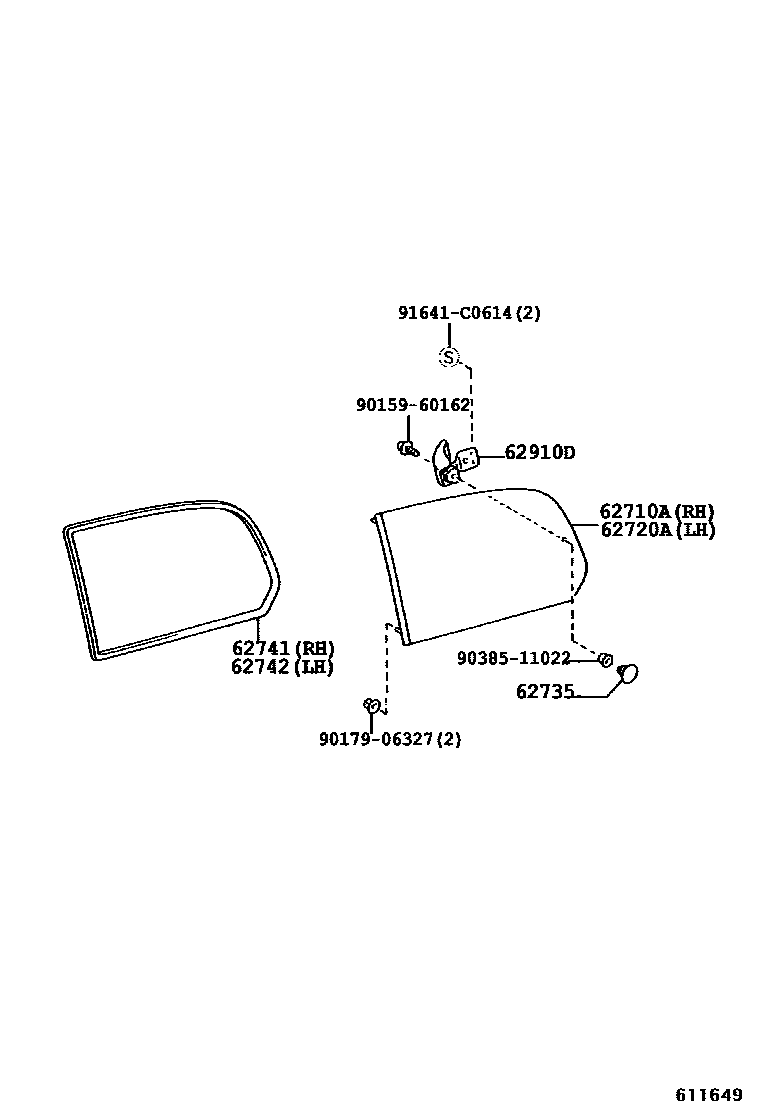

SIDE WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-0G030i200501

REAR QUARTER GLASS-MADE IN CHINA

main62710-60760i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62710-60761

main62710-60760i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

sub62710-60761

main62710-60760i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62710-60761

main62710-60761i200212-200408

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62710-60761i200311-200408

*TT,T=3.1,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62710-60761i200212-200408

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

main62710-60761i200212-200408

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62710-60880i200209-200212

*TT,T=3.1,GREEN

sub62710-60881

main62710-60881i200212-200408

*TT,T=3.1,GREEN

main62710-60890i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62710-60891

main62710-60890i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

sub62710-60891

main62710-60890i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62710-60891

main62710-60890i200209-200212

*UVCTT,T=3.1,GREEN,ANTENNA-AM/FM MAIN & FM SUB

sub62710-60891

main62710-60891i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62710-60891i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62710-60891i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

main62710-60891i200212-200707

*UVCTT,T=3.1,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62710-60891i200309-200409

*UVCTT,T=3.1,GREEN

main62710-6A010i200209-200212

*UVCTT,T=3.1,GREEN

sub62710-6A011

main62710-6A011i200212-200408

*UVCTT,T=3.1,GREEN

main62710-6A030i200209-200212

*TT,T=3.1,DK.GRAY

sub62710-6A031

main62710-6A031i200212

*TT,T=3.1,DK.GRAY

main62710-6A050i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62710-6A051

main62710-6A050i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62710-6A051

main62710-6A050i200209-200212

*TT,T=3.1,DK.GRAY,ANTENNA-AM/FM MAIN & FM SUB

sub62710-6A051

main62710-6A050i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

sub62710-6A051

main62710-6A051i200212-200707

*TT,T=3.1,DK.GRAY,ANTENNA-AM/FM MAIN & FM SUB

main62710-6A051i200212-200311

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62710-6A051i200212-200311

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62710-6A051i200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

main62710-6A060i200209-200212

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62710-6A061

main62710-6A060i200209-200212

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62710-6A061

main62710-6A061i200212-200408

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62710-6A061i200212-200408

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62710-6A061i200311-200408

*TT,T=4.0,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62710-6A070i200209-200408

*TT,T=4.0,GREEN

main62710-6A080i200209-200408

*UVCTT,T=4.0,GREEN

main62710-6A100i200209

*TT,T=4.0,DK.GRAY

main62710-6A110i200209-200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62710-6A111

main62710-6A110i200209-200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62710-6A111

main62710-6A111i200212-200311

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62710-6A111i200212-200311

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62710-6A111i200311-200408

*TT,T=4.0,DK.GRAY,ANTENNA-AM/FM MAIN & FM SUB

main62710-6A140i200209-200212

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62710-6A141

main62710-6A140i200209-200212

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62710-6A141

main62710-6A141i200212-200408

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62710-6A141i200212-200408

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62710-6A141i200311-200408

*UVCTT,T=4.0,GREEN,ANTENNA-AM/FM MAIN & FM SUB

62720AWINDOW ASSY, QUARTER, LH

main62720-0G030i200501

REAR QUARTER GLASS-MADE IN CHINA

main62720-60650i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62720-60651

main62720-60650i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

sub62720-60651

main62720-60650i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62720-60651

main62720-60650i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

sub62720-60651

main62720-60650i200209-200212

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

sub62720-60651

main62720-60651i200212-200401

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

main62720-60651i200212-200401

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62720-60651i200311-200401

*TT,T=3.1,GREEN,ANTENNA-AM/FM MAIN

main62720-60651i200311-200401

*TT,T=3.1,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62720-60651i200212-200401

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62720-60651i200212-200401

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

main62720-60651i200212-200401

*TT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

main62720-60670i200209-200212

*TT,T=3.1,GREEN

sub62720-60671

main62720-60671i200212-200401

*TT,T=3.1,GREEN

main62720-60790i200209-200212

*UVCTT,T=3.1,GREEN

sub62720-60791

main62720-60790i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62720-60791

main62720-60790i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62720-60791

main62720-60790i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

sub62720-60791

main62720-60790i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

sub62720-60791

main62720-60790i200209-200212

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

sub62720-60791

main62720-60791i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

main62720-60791i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62720-60791i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62720-60791i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

main62720-60791i200212-200408

*UVCTT,T=3.1,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

main62720-60791i200311-200408

*UVCTT,T=3.1,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62720-60791i200311-200408

*UVCTT,T=3.1,GREEN,ANTENNA-AM/FM MAIN

main62720-60791i200212-200409

*UVCTT,T=3.1,GREEN

main62720-60810i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

sub62720-60811

main62720-60810i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

sub62720-60811

main62720-60810i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

sub62720-60811

main62720-60810i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62720-60811

main62720-60810i200209-200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62720-60811

main62720-60810i200209-200212

*TT,T=3.1,DK.GRAY

sub62720-60811

main62720-60811i200212-200311

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

main62720-60811i200212-200311

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62720-60811i200212-200311

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62720-60811i200311

*TT,T=3.1,DK.GRAY,ANTENNA-AM/FM MAIN

main62720-60811i200311

*TT,T=3.1,DK.GRAY,ANTENNA-AM/FM MAIN & FM SUB

main62720-60811i200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

main62720-60811i200212

*TT,T=3.1,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CDCHANGER 6SP

main62720-60811i200212

*TT,T=3.1,DK.GRAY

main62720-60820i200209-200212

*TT,T=3.1,DK.GRAY

sub62720-60821

main62720-60821i200212

*TT,T=3.1,DK.GRAY

main62720-60840i200209-200212

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62720-60841

main62720-60840i200209-200212

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62720-60841

main62720-60840i200209-200212

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

sub62720-60841

main62720-60840i200209-200212

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

sub62720-60841

main62720-60841i200212-200408

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

main62720-60841i200212-200408

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62720-60841i200212-200408

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62720-60841i200212-200408

*TT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

main62720-60841i200311-200408

*TT,T=4.0,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62720-60841i200311-200408

*TT,T=4.0,GREEN,ANTENNA-AM/FM MAIN

main62720-60850i200209-200408

*TT,T=4.0,GREEN

main62720-60860i200209-200212

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62720-60861

main62720-60860i200209-200212

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

sub62720-60861

main62720-60860i200209-200212

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62720-60861

main62720-60860i200209-200212

*UVCTT,T=4.0,GREEN

sub62720-60861

main62720-60860i200209-200212

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

sub62720-60861

main62720-60861i200212-200408

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

main62720-60861i200212

*UVCTT,T=4.0,GREEN

main62720-60861i200212-200408

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

main62720-60861i200311-200408

*UVCTT,T=4.0,GREEN,ANTENNA-AM/FM MAIN

main62720-60861i200311-200408

*UVCTT,T=4.0,GREEN,ANTENNA-AM/FM MAIN & FM SUB

main62720-60861i200212-200408

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62720-60861i200212-200408

*UVCTT,T=4.0,GREEN,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62720-60880i200209-200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

sub62720-60881

main62720-60880i200209-200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

sub62720-60881

main62720-60880i200209-200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

sub62720-60881

main62720-60880i200209-200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

sub62720-60881

main62720-60880i200209-200212

*TT,T=4.0,DK.GRAY

sub62720-60881

main62720-60881i200212-200311

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP

main62720-60881i200212-200311

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AM/FM/MW/CDCHANGER 6SP

main62720-60881i200212-200311

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-6SP ONLY(AUDIO LESS)

main62720-60881i200212

*TT,T=4.0,DK.GRAY,AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS FRONT 4SP

main62720-60881i200212

*TT,T=4.0,DK.GRAY

main62720-60881i200311-200408

*TT,T=4.0,DK.GRAY,ANTENNA-AM/FM MAIN & FM SUB

main62720-60881i200311-200408

*TT,T=4.0,DK.GRAY,ANTENNA-AM/FM MAIN

main62720-60890i200209

*TT,T=4.0,DK.GRAY

main62720-6A020i200209-200212

*UVCTT,T=3.1,GREEN

sub62720-6A021

main62720-6A021i200212-200408

*UVCTT,T=3.1,GREEN

main62720-6A030i200209-200408

*UVCTT,T=4.0,GREEN

62735RETAINER, QUARTER WINDOW HINGE

main62735-28040i200209-200409

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0G010i200507

(L)

main62741-60110i200209-200308

sub62741-60111

main62741-60111i200308-200507

main62741-60111i200507

(J)

main62741-60120i200209-200308

sub62741-60121

main62741-60121i200308

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-0G010i200507

(L)

main62742-60100i200209-200308

sub62742-60101

main62742-60101i200308-200507

main62742-60101i200507

(J)

main62742-60110i200209-200308

sub62742-60111

main62742-60111i200308

62910DLOCK ASSY, QUARTER WINDOW

main62910-0G010-B0i200507-200508

MD.GRAY,TRIM1#,(L)

main62910-60060-A0i200209-200908

IVORY,TRIM0#

main62910-60060-B0i200507-200508

MD.GRAY,TRIM1#,(J)

main62910-60060-B0i200209-200908

MD.GRAY,TRIM1#

9015960162

main90159-60162

9017906327

main90179-06327

9038511022

main90385-11022

91641C0614

main91641-C0614

10 parts on this diagram · 1 diagram in section
