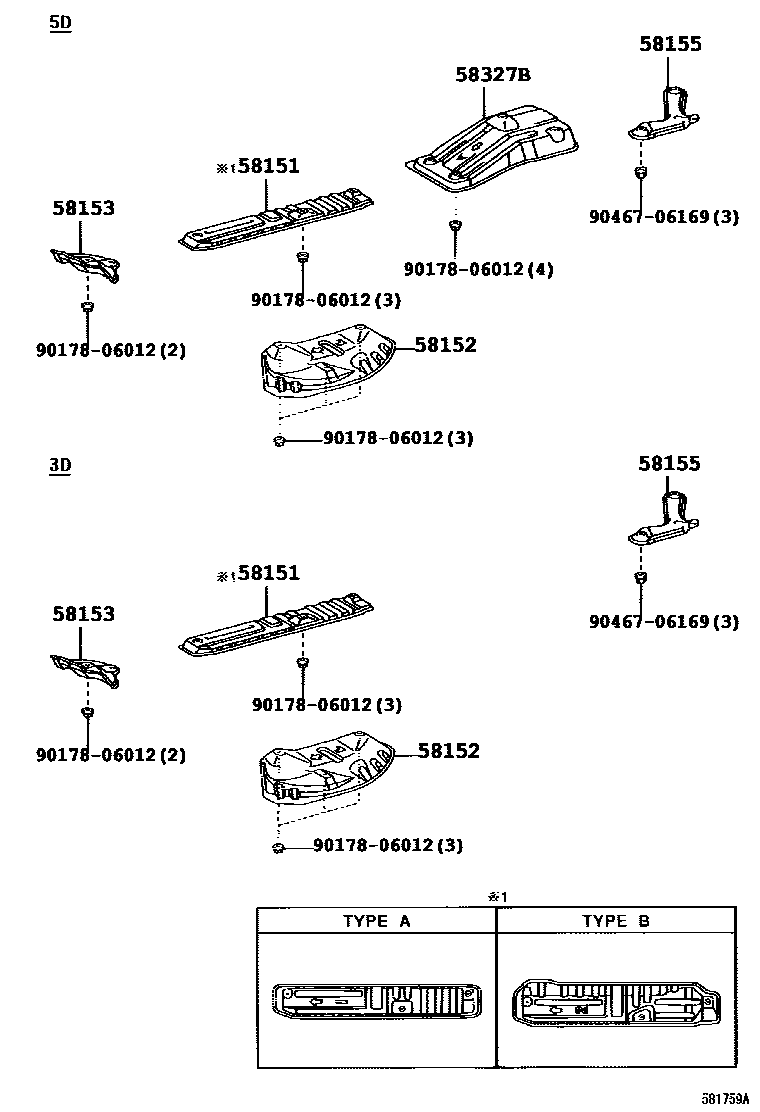

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-35120iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

TYPE A:REFER ILLUST.

sub58151-35121

main58151-60080iGRJ120..5FC..CHI200309-200409

TYPE B:REFER ILLUST.

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-35010iGRJ120..5FC..CHI200301-200409

sub58152-35020

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-35130iGRJ120..CHI200209-200409

sub58153-60130

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0G010iGRJ120..CHI200507

(L)

main58155-35020iGRJ120..CHI200209-200507

sub58155-60100

sub90178-06012

main58155-35020iGRJ120..CHI200507

(J)

sub58155-60100

sub90178-06012

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-35050iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200409

9017806012

main90178-06012

9046706169

main90467-06169

7 parts on this diagram · 1 diagram in section
