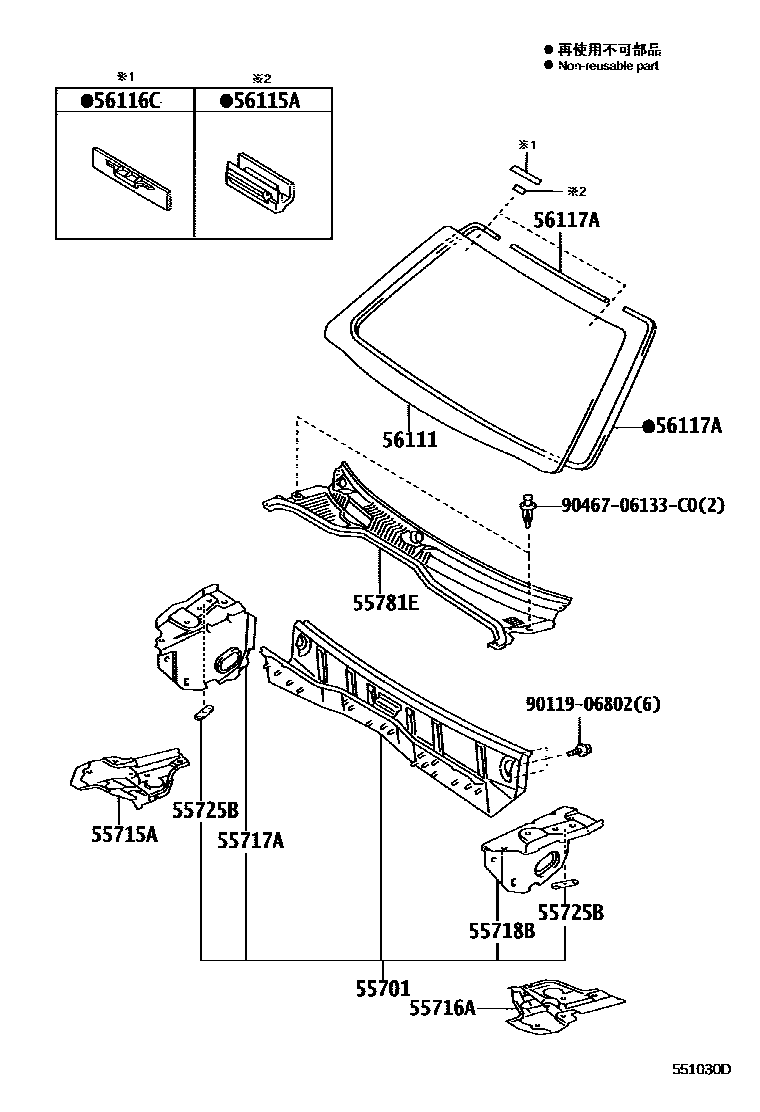

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-6A830iGRJ120,KDJ120,KZJ120,RZJ120..ATM..ARL200209-200908

sub55700-6A840

main55700-6A850iGRJ12#,KZJ120,RZJ12#,TRJ120..ATM..GEN200209-200908

sub55700-6A880

main55700-6A860iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..MTM..GEN200209-200908

sub55700-6A880

main55700-6A870iGRJ12#,RZJ12#,TRJ12#..ATM..GCC200209-200908

main55700-6A880iGRJ120,RZJ12#,TRJ120..MTM..GCC200209-200908

AREA OF ARABIC EXP. SAUDI SPEC

main55700-6A890iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD..MTM200209-200908

sub55700-6B010

main55700-6A840iGRJ120,KZJ120..ATM..ARL200707-200908

SOUTH AFRICA SPEC

sub55700-6B010

main55700-6B010iKZJ120..5F..ARL200707-200908

SOUTH AFRICA SPEC

55715ABRACE, COWL TOP TO APRON, RH

main55715-60030iGRJ120..CHI200209-200908

55716ABRACE, COWL TOP TO APRON, LH

main55716-60030iGRJ120..CHI200209-200908

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60040iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60030iGRJ120,KZJ120,LJ120,RZJ120..RHD200209-200402

sub55708-60031

main55708-60031iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..RHD200402

main55708-60050iGRJ12#,KZJ120,LJ12#,RZJ12#..LHD200209-200310

sub55708-60051

main55708-60051iGRJ120..CHI200308-200409

56111GLASS, WINDSHIELD

main56111-60450iKZJ120,LJ12#,RZJ12#..ARL,GEN200209-200212

*LAM,T=5.3,GREEN

sub56111-60451

main56111-60451iGRJ120..GX..ARL;KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GEN200212

*LAM,T=5.3,GREEN

main56111-60460iRZJ12#..GCC200209-200212

*LAM,T=5.3,GREEN,AREA OF ARABIC EXP. SAUDI SPEC

sub56111-60461

main56111-60461iRZJ12#,TRJ12#..GCC200212

*LAM,T=5.3,GREEN,AREA OF ARABIC EXP. SAUDI SPEC

main56111-60461iGRJ120..CHI200309-200606

*LAM,T=5.3,GREEN

main56111-60471iGRJ12#..VX..(ARL,GEN)200301

*LAM,T=5.3,GREEN

main56111-60481iGRJ12#..GCC200301

*LAM,T=5.3,GREEN

sub56111-60482

main56111-60650iKDJ120200608

*LAM,T=5.4,GREEN

sub56111-60651

main56111-0G020iGRJ120..CHI200501-200606

*LAM,T=5.3,GREEN,WINDSHIELD GLASS-GREEN LAMINETED(MADE IN CHINA)

main56111-60470iKZJ120..4FC..ARL200209-200212

*LAM,T=5.3,GREEN,WINDSHIELD GLASS-WITH(TOP SHADE)

sub56111-60471

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGRJ120..5FC..CHI200209-200409

56117ADAM, WINDOW GLASS ADHESIVE

main56117-60080iGRJ120..5FC..CHI200209-200409

L=812

sub56117-74010

main56117-60090iGRJ120..5FC..CHI200209-200409

L=3106

sub56117-64010

9011906802

main90119-06802

9046706133C0

main90467-06133C0

13 parts on this diagram · 1 diagram in section
