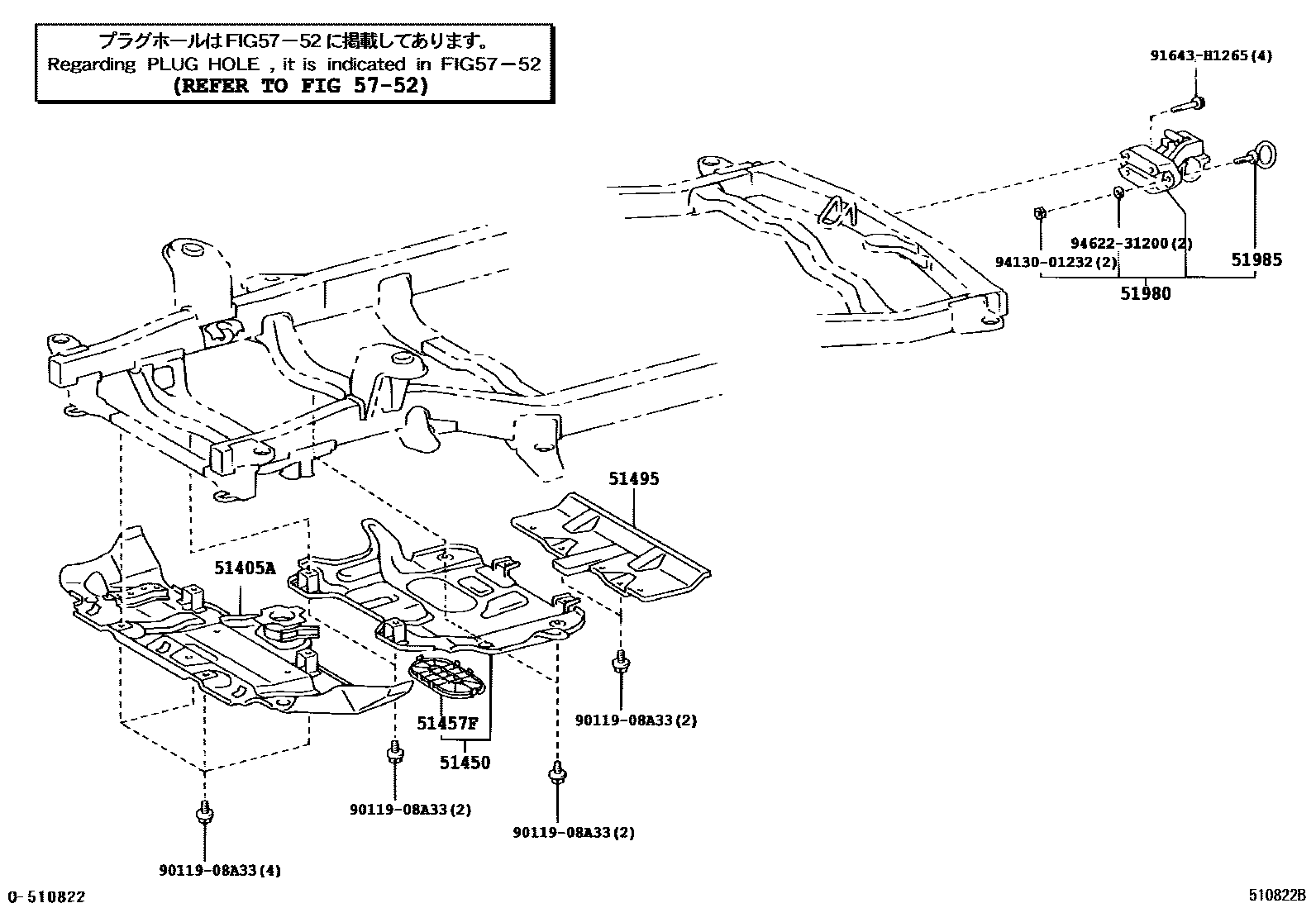

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35100iGRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN200209-200311

sub51405-35101

main51405-35101iGRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200310-200409

main51440-35011iKDJ120200608

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iGRJ120..CHI200209-200409

main51450-35020iKDJ120200608

51457FSEAL, ENGINE UNDER COVER

main51457-35030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

51495COVER, TRANSMISSION UNDER

main51495-35050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

51980HOOK ASSY, PINTLE

main51980-35010

51985HOOK, EYELET PINTLE

main51985-60011

9011908A33

main90119-08A33

91643H1265

main91643-H1265

9413001232

main94130-01232

9462231200

main94622-31200

10 parts on this diagram · 1 diagram in section
