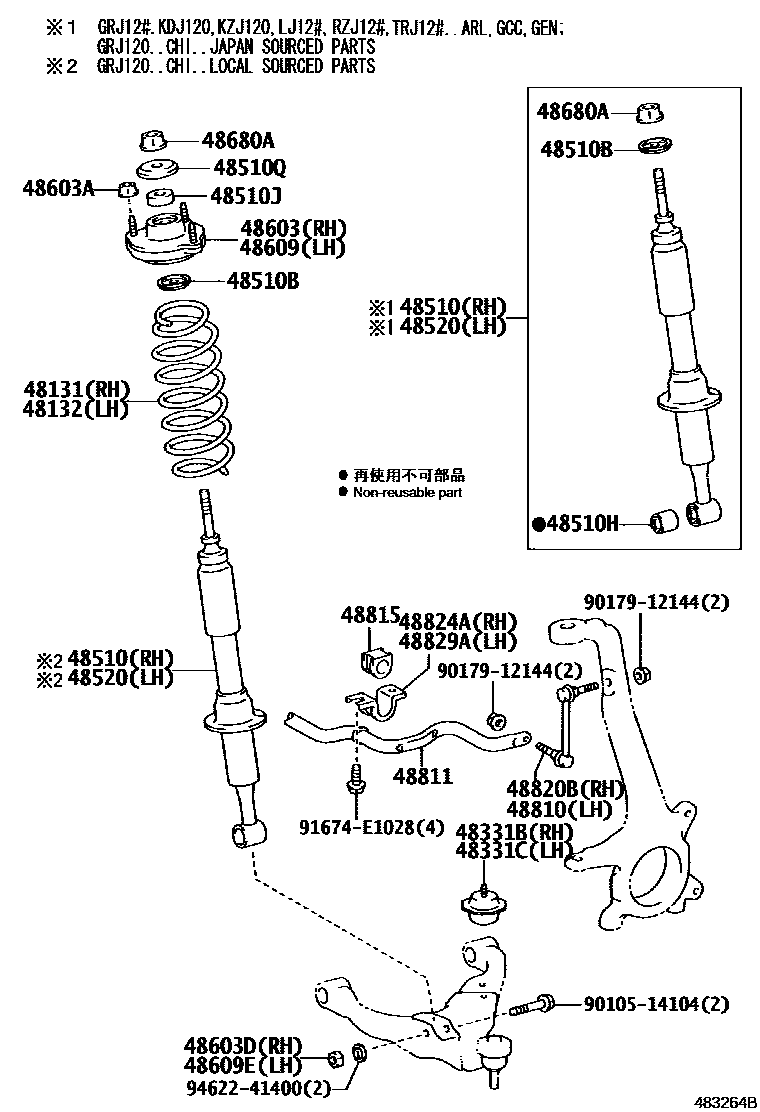

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1W(TEMS) OR W(AIR SUSPENSION)

48131SPRING, FRONT COIL, RH

main48131-60B80iGRJ125,TRJ125200702

main48131-60B90iLJ125200702

main48131-6B400iGRJ125,RZJ125,TRJ125200209-200702

sub48131-60B80

main48131-6B410iLJ125200209-200702

sub48131-60B90

main48131-6B430iGRJ120..ARL,GEN;GRJ120..MTM..GCC;RZJ120,TRJ120..GCC,GEN200209-200409

main48131-6B440iGRJ120..VX..CHI200209

main48131-6B450iKZJ120;LJ120..RHD200209

main48131-6B460iKDJ120200608

48132SPRING, FRONT COIL, LH

main48131-60B90iTRJ125200702

main48131-60C00iGRJ125,LJ125200702

main48131-6B410iRZJ125,TRJ125200209-200702

sub48131-60B90

main48131-6B420iGRJ125,LJ125200209-200702

sub48131-60C00

main48131-6B430iRZJ120,TRJ120..RHD..GEN200209

main48131-6B440iTRJ120..LHD;RZJ120..ARL,GCC;RZJ120..LHD..GEN;GRJ120,LJ120..RHD200209

main48131-6B450iGRJ120,LJ120..LHD..(GCC,GEN)200209-200409

main48131-6B460iKZJ120200209

main48131-6B470iKDJ120200608

48331BBUMPER, FRONT SPRING, RH

main48304-60120iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

main48304-0G010iGRJ120..CHI200507

MADE IN CHINA

sub48304-0G020

48331CBUMPER, FRONT SPRING, LH

main48304-60120iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

main48304-0G010iGRJ120..CHI200507

MADE IN CHINA

sub48304-0G020

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69175iGRJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200510

MARK 48510-60100

sub48510-69176

main48510-69175iGRJ120..CHI200309-200510

MARK 48510-60100,JAPAN SOURCED PARTS

sub48510-69176

main48510-69176iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200510-200908

MARK 48510-60101

sub48510-69535

main48510-69185iGRJ125,LJ125,RZJ125,TRJ125200209-200410

MARK 48510-60110

sub48510-69295

main48510-69195iGRJ120..VX..CHI200606-200708

MARK 48510-60120,JAPAN SOURCED PARTS

sub48510-69415

main48510-69295iGRJ125,LJ125,TRJ125200410-200510

MARK 48510-60111

sub48510-69315

main48510-69315iGRJ125,LJ125,TRJ125200510-200702

MARK 48510-60112

sub48510-69325

main48510-69325iGRJ125,LJ125,TRJ125200702-200908

MARK 48510-60113

sub48510-69545

main48510-69415iGRJ120..VX..CHI200708

MARK 48510-60121,JAPAN SOURCED PARTS

sub48510-60121

main48510-0G010iGRJ120..CHI200501-200509

MARK 48510-0G010,TEMS-WITHOUT,LOCAL SOURCED PARTS

sub48510-0G011

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02159iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90903-89012iTRJ125;GRJ125,LJ125..5F,5FC200209-200912

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01056iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69175iGRJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200510

MARK 48510-60100

sub48510-69176

main48510-69175iGRJ120..CHI200309-200510

MARK 48510-60100,JAPAN SOURCED PARTS

sub48510-69176

main48510-69176iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200510

MARK 48510-60101

sub48510-69535

main48510-69185iGRJ125,LJ125,RZJ125,TRJ125200209-200410

MARK 48510-60110

sub48510-69295

main48510-69195iGRJ120..VX..CHI200606-200708

MARK 48510-60120,JAPAN SOURCED PARTS

sub48510-69415

main48510-69295iGRJ125,LJ125,TRJ125200410-200510

MARK 48510-60111

sub48510-69315

main48510-69315iGRJ125,LJ125,TRJ125200510-200702

MARK 48510-60112

sub48510-69325

main48510-69325iGRJ125,LJ125,TRJ125200702

MARK 48510-60113

sub48510-69545

main48510-69415iGRJ120..VX..CHI200708

MARK 48510-60121,JAPAN SOURCED PARTS

sub48510-60121

main48510-0G010iGRJ120..CHI200501-200509

MARK 48510-0G010,TEMS-WITHOUT,LOCAL SOURCED PARTS

sub48510-0G011

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60030iGRJ120..CHI200209-200409

sub48609-60100

main48609-0G010iGRJ120..GX..CHI200602

MADE IN CHINA

sub48609-0G050

main48609-60040iKZJ120..4FC;KZJ120..5F..GEN;GRJ120..ARL,GCC,GEN200209-200402

TEMS

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10212iGRJ120..5FC..CHI200209-200409

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14026iGRJ120..CHI200209-200409

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60030iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

sub48609-60100

main48609-0G010iGRJ120..GX..CHI200602

MADE IN CHINA

sub48609-0G050

main48609-60040iKZJ120..4FC;KZJ120..5F..GEN;GRJ120..ARL,GCC,GEN200209-200402

TEMS

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14026iGRJ120..5FC..CHI200209-200409

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241iGRJ120..CHI200209-200409

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

48811BAR, STABILIZER, FRONT

main48811-60230iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200910

main48811-60370iGRJ120..CHI200910

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60180iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200910

sub48815-60350

main48815-0G010iGRJ120..CHI200511-200910

MADE IN CHINA

main48815-0G030iGRJ120..CHI200910

MADE IN CHINA

sub48815-0G060

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60140iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200910

main48824-60190iGRJ120..CHI200910

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-60090iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200910

main48829-60120iGRJ120..CHI200910

9010514104

main90105-14104

9017912144

main90179-12144

91674E1028

main91674-E1028

9462241400

main94622-41400

26 parts on this diagram · 2 diagrams in section
