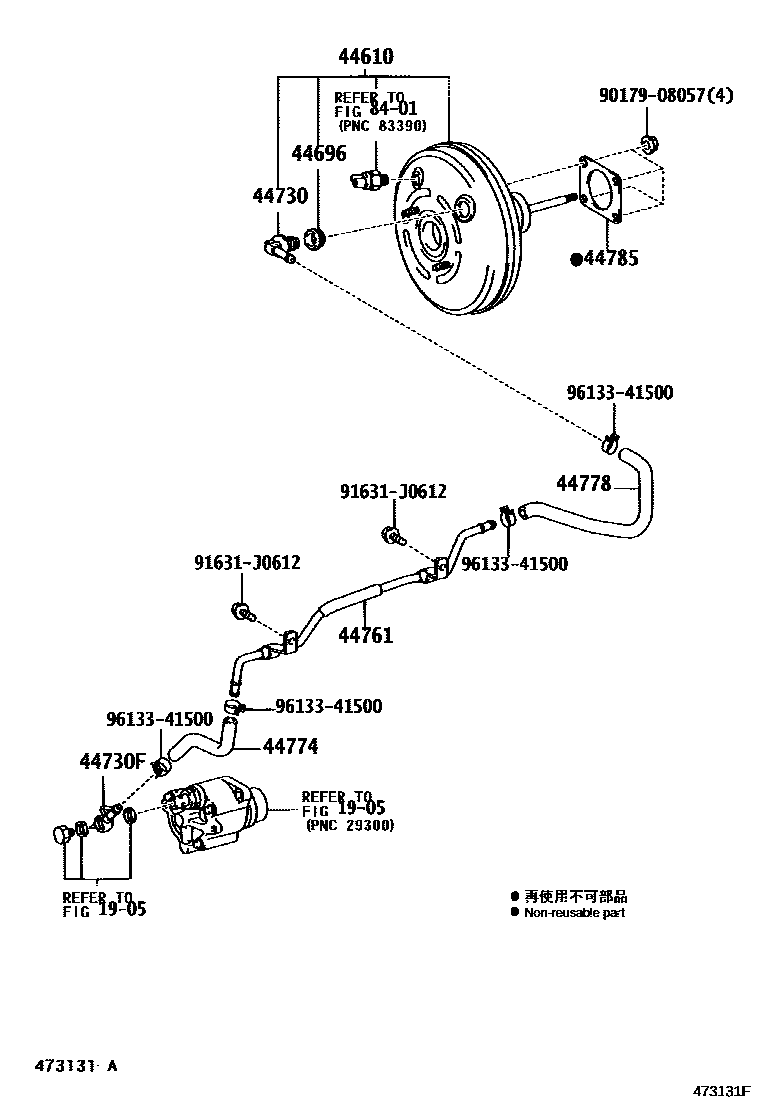

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS & VSC & ACTIVE TRC) 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

1905

44610BOOSTER ASSY, BRAKE

main44610-6A180iGRJ120..CHI200309-200603

sub44610-6A181

main44610-6A181iGRJ120..GX..CHI200603-200902

CHINA SPEC&ABS-WITH

sub44610-6A182

main44610-6A182iGRJ120..GX..CHI200903

CHINA SPEC&ABS-WITH

main44610-6A220iLJ12#..LHD200209-200902

sub44610-6A221

main44610-6A221iLJ12#..LHD200903

main44610-6A270iLJ120..RHD200209-200904

sub44610-6A271

main44610-6A271iLJ120..RHD200905

main44610-6A200iKZJ120..GEN200209-200603

ABS-WITH

sub44610-6A201

main44610-6A201iKZJ120..GEN200603-200902

ABS-WITH

sub44610-6A202

main44610-6A202iKZJ120..GEN200903

ABS-WITH

main44610-6A230iGRJ120,RZJ120,TRJ120..RHD200209-200603

ABS-WITH

sub44610-6A231

main44610-6A231iGRJ120,TRJ120..RHD200603-200904

ABS-WITH

sub44610-6A232

main44610-6A232iGRJ120,TRJ120..RHD200905

ABS-WITH

main44610-6A250iKZJ120..ARL200209-200603

ABS-WITH

sub44610-6A251

main44610-6A251iKDJ120,KZJ120..ARL200603-200904

ABS-WITH

sub44610-6A252

main44610-6A252iKDJ120,KZJ120..ARL200905

ABS-WITH

44696GROMMET, CHECK VALVE

main90480-24439iGRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN200209

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iKDJ120,KZJ120200209

main44730-14050iGRJ120,RZJ120,TRJ120..RHD200209

main44730-20080iGRJ120..GX..CHI200209

main44730-60050iLJ12#200209

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iRZJ12#200209-200408

main90405-09080iLJ12#200209

main90405-09175iKDJ120,KZJ120200209

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-60040iKDJ120,KZJ120..(4FC,5F,5FC)..ARL200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-60250iLJ12#200209

main44774-60260iGRJ120..(4FC,5F,5FC)..ARL200301

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main44774-60270iRZJ120..RHD200209-200408

main44774-60290iKDJ120,KZJ120..(4FC,5F,5FC)..ARL200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.2

main44774-60310iTRJ120..RHD200408

main95447-09180iKDJ120,KZJ120..(4FC,5F,5FC)..ARL200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-60180iLJ12#200209

main44778-60190iKZJ120..GEN200209

main44778-60200iGRJ120,KDJ120,KZJ120..(4FC,5F,5FC)..ARL200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

44785GASKET, BRAKE BOOSTER

main44785-60020iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

8401

9017908057

main90179-08057

91631J0612

main91631-J0612

9613341500

main96133-41500

13 parts on this diagram · 11 diagrams in section
