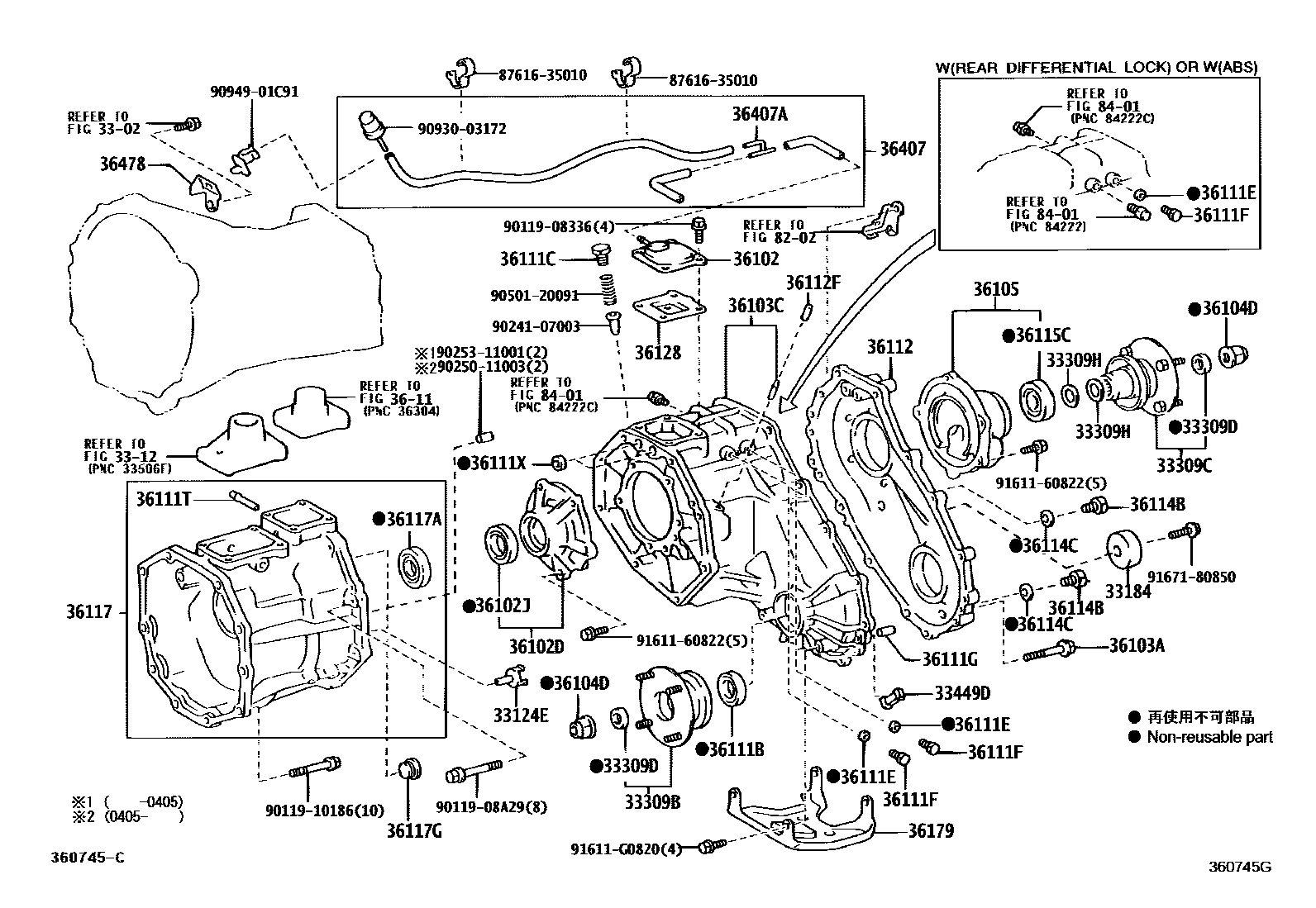

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1W(PART TIME 4WD) 0008 1W(ABS & VSC & ACTIVE TRC) 0010 1W(ABS & VSC & ACTIVE TRC) 0012 1W(ABS & VCS & ACTIVE TRC) 0013 1 0014 1 0015 1 0016 1W(ABS & VSC & ACTIVE TRC) 0017 1W(ABS & VSC & ACTIVE TRC) 0018 1 0019 1W(ABS & VSC & ACTIVE TRC) 0021 1W(ABS & VSC & ACTIVE TRC)

3302

3312

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35020iRZJ12#..5F200209-200408

main33124-35100iGRJ120,KZJ120,TRJ12#..5F200209

main33124-36010iLJ12#200209

33184WEIGHT, DYNAMIC DAMPER

main33184-60020iGRJ120..ATM..(ARL,GCC,GEN);KDJ120,KZJ120..(4FC,5F,5FC)..ARL200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main33184-60020iGRJ120..5F200209-200409

main33184-60030iGRJ120..MTM200306

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35110iGRJ120..CHI200209-200807

sub33309-35113

sub90311-41017

main33309-35111iGRJ120..CHI200807-200908

sub33309-35112

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iGRJ120..CHI200209-200908

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGRJ120..CHI200209

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010iLJ12#200209

N=30,OD=38

main36275-35030iGRJ120..CHI200209-200409

N=31,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGRJ120..CHI200209-200409

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iKDJ120,KZJ120;RZJ12#,TRJ12#..4FC200209

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F,5FC)..(ARL,GCC,GEN)200209-200409

main36102-35080iGRJ120,KDJ120..6F200408

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43007iGRJ120,KDJ120..6F200408

NO.1

main90311-43008iGRJ120,KDJ120..6F200408

NO.2

main90311-43008iGRJ120..CHI200209

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iGRJ120..CHI200209-200409

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-60340iLJ12#200209

sub36111-60261

main36103-60350iGRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN200209

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iGRJ120..CHI200209-200409

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iLJ12#200209

main36105-35050iGRJ120..VX..CHI200606

main36105-60040iGRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41010iGRJ120..CHI200209-200609

sub90311-41012

main90311-41012iKDJ120..6F200609-200807

TYPE A:REFER ILLUST.

main90311-41013iKDJ120..5FC;GRJ12#,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200807

TYPE B:REFER ILLUST.

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

DIFFERENTIAL LOCK-WITH&ABS-WITH

main90430-18008iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

DIFFERENTIAL LOCK-WITH

main90430-18008iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

ABS-WITH

main90430-18008iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main90430-18008iKDJ120..6F200606

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iGRJ120,KZJ120,RZJ12#,TRJ12#..MTM200209

ABS-WITH

main90341-18006iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

DIFFERENTIAL LOCK-WITH&ABS-WITH

main90341-18006iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main90341-18006iGRJ120,KZJ120,RZJ12#,TRJ12#..MTM..(ARL,GEN)200209

DIFFERENTIAL LOCK-WITH

main90341-18006iKDJ120..6F200606

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

sub90406-T0007

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90311-15008iGRJ120,KDJ120,KZJ120..ATM..ARL200209

DIFFERENTIAL LOCK-WITHOUT&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main90311-15008iGRJ120..GX..CHI200309

36112CASE, TRANSFER, REAR

main36112-35040iLJ12#200209

main36112-60170iGRJ120..VX..CHI200606

main36112-60180iGRJ120..CHI200209-200409

36112FCAP, TRANSFER, REAR CASE

main90339-04024iGRJ120..CHI200209-200409

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

sub90311-41020

36117ADAPTER, TRANSFER

main33102-35060iGRJ120..6F200408-200511

sub33102-35061

sub90119-08213

main33102-35061iGRJ120..6F200511

main33102-60121iKDJ120..6F200608

main36107-60050iLJ12#200209

main36107-60060iRZJ12#..5F200209-200408

main36107-60070iKZJ120..5F200209

main36107-60080iGRJ120,TRJ12#..5F200301

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-43007iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..5F200209

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-24006iKZJ120..5F200209

36128DEFLECTOR, BREATHER OIL

main36128-35060iKDJ120,KZJ120;RZJ12#,TRJ12#..4FC200209

main36128-60050iGRJ120..VX..CHI200606

main36128-60060iRZJ12#..5F..GEN200209-200211

TRANSFER-PART TIME

sub36128-60061

main36128-60061iRZJ12#,TRJ12#..5F;GRJ12#..ARL,GCC,GEN200211-200409

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35020iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200409

sub36179-60030

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60060iLJ12#,RZJ12#,TRJ12#..5F200209

main36407-60070iKZJ120,TRJ12#..4FC200209

main36407-60080iKZJ120..5F200209

main36407-60100iGRJ120..5F200301-200408

main36407-60110iGRJ12#,RZJ12#..4FC..(ARL,GCC,GEN)200209-200409

main36407-60120iGRJ120..CHI200408

main36407-60140iKDJ120..6F200608

main36407-60150iGRJ120..6F200408

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04008iGRJ120..CHI200209-200409

36478BRACKET, TRANSFER BREATHER

main36478-60010iGRJ120..CHI200209-200409

main36478-60020iRZJ12#..5F200209-200408

8202

8401

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910186

main90119-10186

9024107003

main90241-07003

9025011003

main90250-11003

9025311001

main90253-11001

9050120091

main90501-20091

9093003172

main90930-03172

9094901C91

main90949-01C91

9161160822

main91611-60822

91611G0820

main91611-G0820

9167180850

main91671-80850

52 parts on this diagram · 17 diagrams in section
