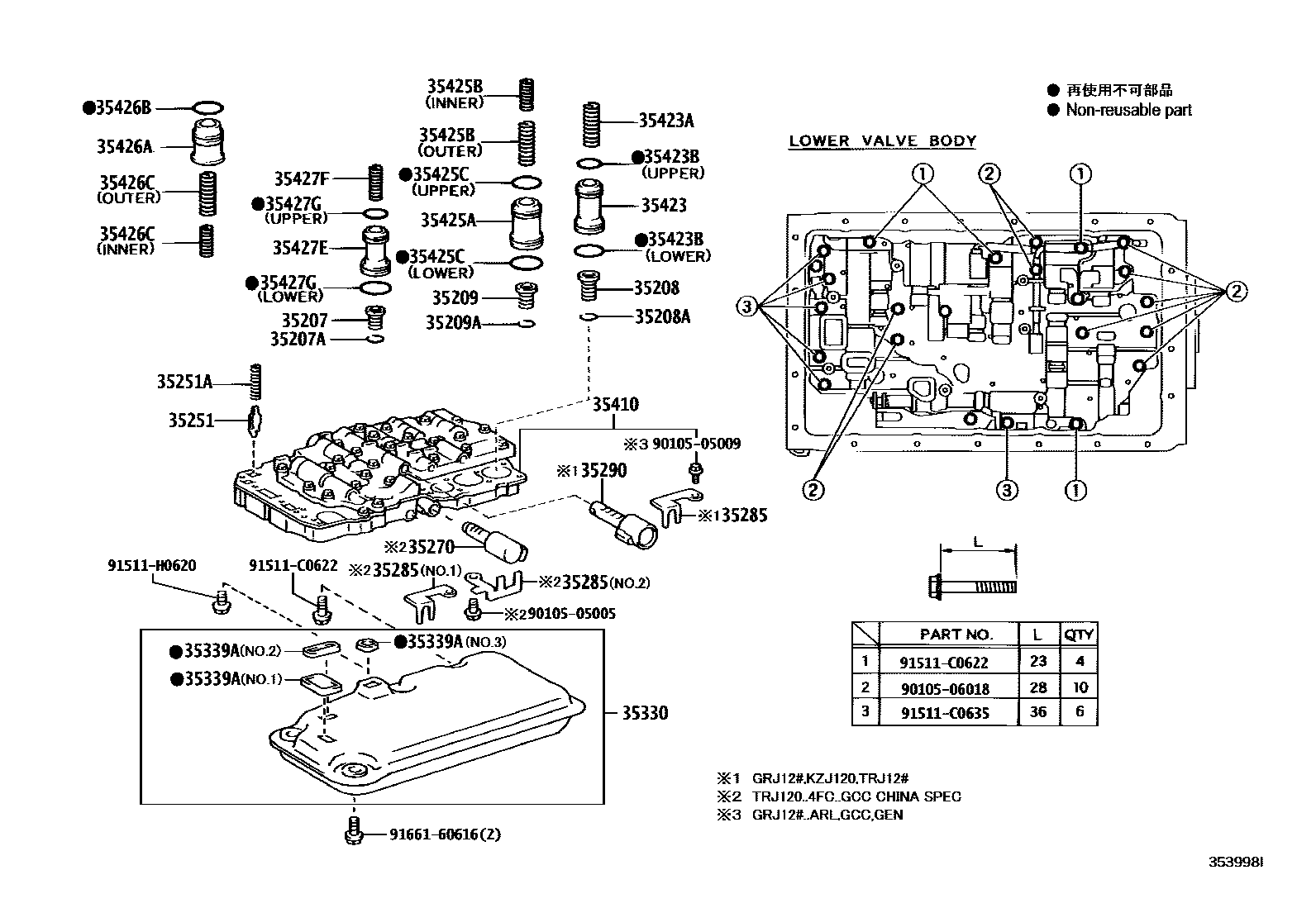

VALVE BODY & OIL STRAINER (ATM)

0001 1A340F,A343F 0002 1A340F,A343F 0003 1A750F 0004 1A750F

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209-200409

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209-200409

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKZJ120..4FC200209

main35209-30010iGRJ120..CHI200301-200409

main35209-50020iRZJ12#,TRJ12#..4FC200209

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209-200409

35251BODY, CHECK BALL

main35251-30020iGRJ120..CHI200209-200908

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iGRJ120..5FC..CHI200209-200908

35270SOLENOID ASSY, SHIFT CONTROL

main35270-14010

35285PLATE, SOLENOID LOCK

main35285-24020iGRJ12#,KZJ120,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

NO.1

main35285-34010iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-34010iGRJ120..CHI200611-200908

main35290-50010iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200611

sub35290-34010

main35290-60020iGRJ12#,KZJ120..4FC..(ARL,GCC,GEN)200209-200908

main35290-71010iTRJ12#..4FC200408-200908

35330STRAINER ASSY, VALVE BODY OIL

main35330-60030iGRJ120..CHI200209-200908

main35330-60050iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35339AGASKET, OIL STRAINER, NO.1

main35339-30080iGRJ120..CHI200209-200409

NO.1

main35339-30090iKZJ120,TRJ12#..4FC200209-200409

NO.2

main35339-30100iGRJ120..CHI200209-200409

NO.3

35410BODY ASSY, TRANSMISSION VALVE

main35410-60530iRZJ12#..4FC200209-200408

main35410-60550iKZJ120..4FC200209-200908

main35410-60560iGRJ120..CHI200301-200409

main35410-60580iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

sub35410-35870

main35410-71020iTRJ12#..4FC200408-200908

35423PISTON, B-2 ACCUMULATOR

main35423-30030iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-23094iRZJ12#..4FC200209-200408

main90501-24015iTRJ12#..4FC200408

main90501-25028iKZJ120..4FC200209

main90501-28011iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iGRJ120..CHI200209-200409

UPPER

main90301-31010iGRJ120..CHI200209-200409

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-30020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

main35425-50020iGRJ120..CHI200608-200908

main35425-60060iGRJ120..CHI200408-200608

sub35425-50020

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iGRJ12#,KZJ120,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

OUTER

main90501-22062iGRJ120..CHI200408-200908

main90501-23135iRZJ12#..4FC200209-200408

OUTER

main90501-25027iGRJ120..CHI200209-200908

INNER

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-20008iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

UPPER

main90301-25010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

UPPER

main90301-28008iGRJ120..CHI200408-200908

LOWER

main90301-31010iGRJ120..CHI200209-200908

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-40010iKZJ120,RZJ12#,TRJ12#..4FC200209

main35426-50010iGRJ120..CHI200301-200409

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-19030iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

INNER

main90501-22008iKZJ120,RZJ12#,TRJ12#..4FC200209

INNER

main90501-22043iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

OUTER

main90501-23073iKZJ120,RZJ12#,TRJ12#..4FC200209

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iGRJ120..CHI200209-200409

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iGRJ12#,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

main90501-23095iKZJ120..4FC200209

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iGRJ120..CHI200209-200409

UPPER

main90301-26011iGRJ120..CHI200209-200409

LOWER

9010505005

main90105-05005

9010505009

main90105-05009

9010506018

main90105-06018

91511C0622

main91511-C0622

91511C0635

main91511-C0635

91511H0620

main91511-H0620

9166160616

main91661-60616

33 parts on this diagram · 4 diagrams in section
