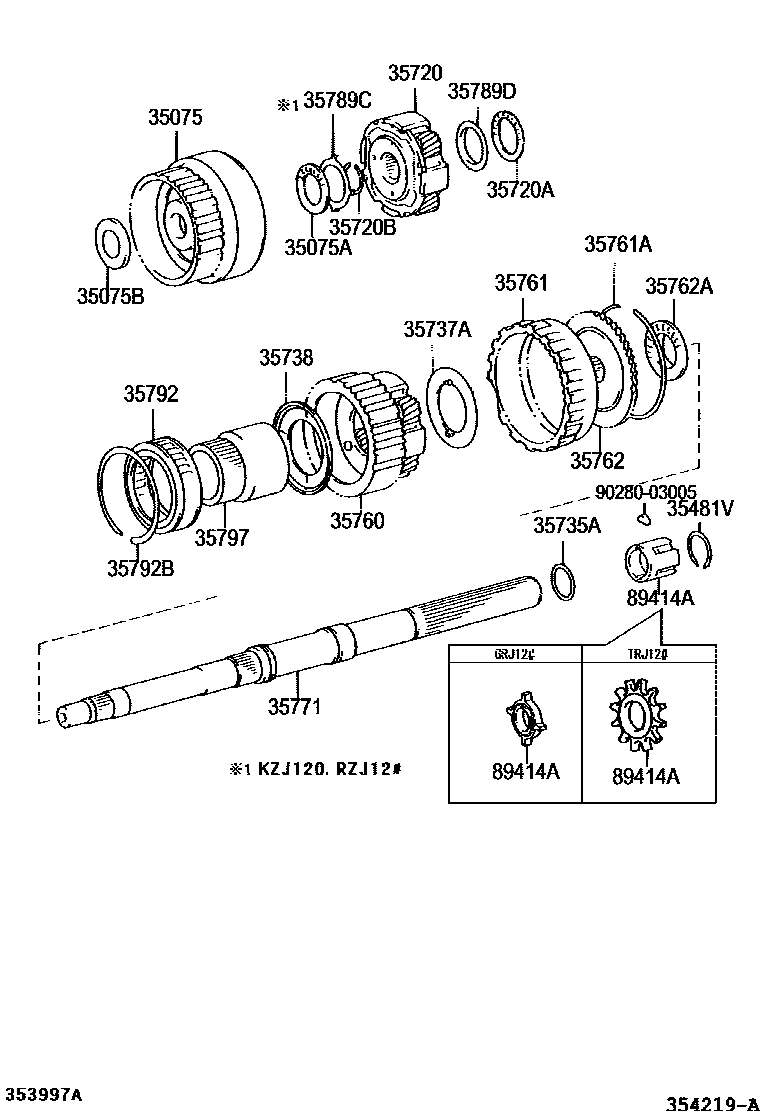

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A340F,A343F 0002 1A750F

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iKZJ120,RZJ12#,TRJ12#..4FC200209

main35075-60010iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-35004iKZJ120,RZJ12#,TRJ12#..4FC200209

main90374-49004iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iKZJ120,RZJ12#,TRJ12#..4FC200209

main35789-30210iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-29004iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

T=1.50,OD=34.8

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iRZJ12#,TRJ12#..4FC200209-200908

main35720-30100iGRJ120..CHI200301-200409

main35720-35030iKZJ120..4FC200209-200908

main35720-60070iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iKZJ120,RZJ12#,TRJ12#..4FC200209

main90374-35005iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iGRJ120..CHI200209-200409

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

main35737-60030iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-60030iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

main35739-30030iGRJ120..CHI200209-200908

35760GEAR ASSY, REAR PLANETARY

main35705-14010iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

main35705-30010iKZJ120,RZJ12#,TRJ12#..4FC200209-200908

main35760-60060iGRJ12#..5FC..(ARL,GCC,GEN)200408-200411

sub35760-60061

main35760-60061iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200411-200905

main35760-60100iGRJ120..CHI200905-200908

35761GEAR, REAR PLANETARY RING

main35761-30020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

main35761-60040iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200409-200908

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90521-99024iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-38003iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35771SHAFT, OUTPUT

main35073-34010iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

main35073-35030iKZJ120,RZJ12#,TRJ12#..4FC200209-200911

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iKZJ120,RZJ12#,TRJ12#..4FC200209

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iKZJ120,RZJ12#,TRJ12#..4FC200209

main35789-30200iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

35792CLUTCH, 1 WAY, NO.2

main35792-14020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iGRJ120..CHI200209-200409

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200409

89414AROTOR, SENSOR

main35736-34010iGRJ12#..4FC..(ARL,GCC,GEN)200301-200409

main89414-35020iKZJ120,RZJ12#..4FC200209-200908

main89414-60020iTRJ12#..4FC200408-200908

9028003005

main90280-03005

23 parts on this diagram · 2 diagrams in section
