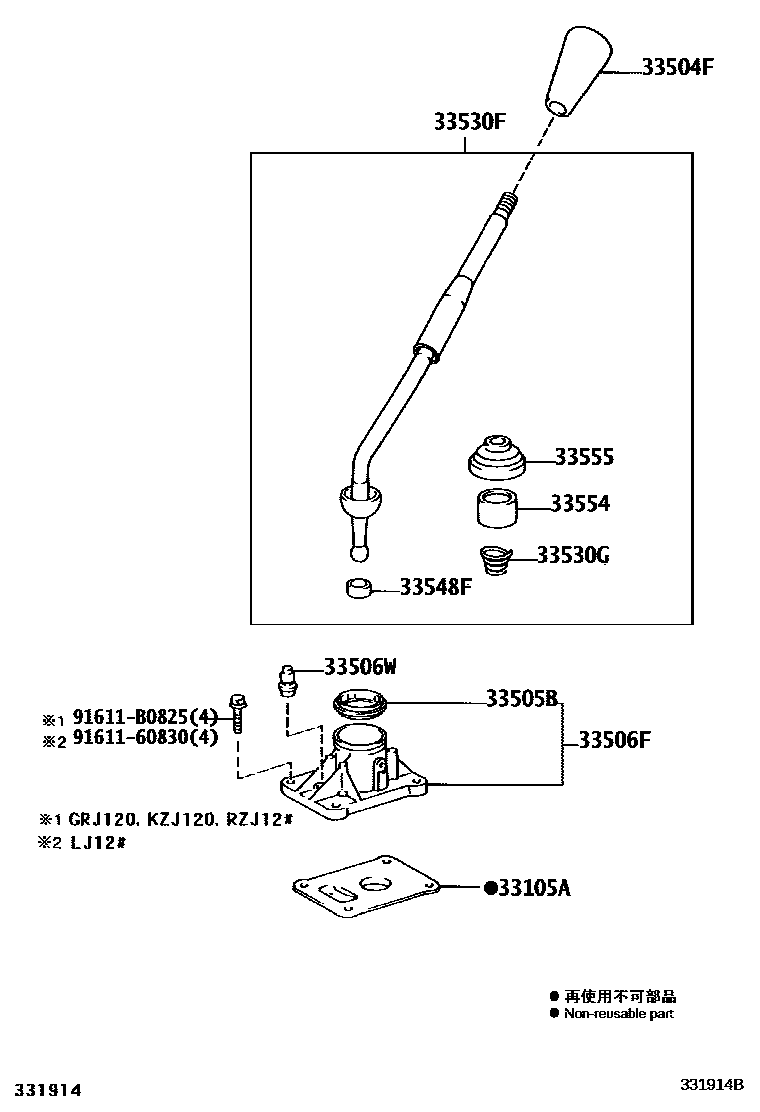

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35030iGRJ120,KZJ120,TRJ12#..5F200209

main33144-60050iLJ12#,RZJ12#..5F200209

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12250-C0iGRJ120..VX..6F200408-200908

W(*LEP1),BLACK,TRIM0#,1#

main33504-12250-C0iGRJ120..VX..6F200408-200908

W(*LEP2),BLACK,TRIM0#,1#

main33504-12250-C0iGRJ120,KDJ120..6F..ARL200408-200908

BLACK,TRIM0#,1#

main33504-20100-C0iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..5F200209-200908

BLACK,TRIM0#,1#

sub33504-24010

sub33504-20100

main33504-20120-C0iGRJ120,KZJ120,RZJ120..5F..ARL200209-200908

BLACK,TRIM0#,1#

sub33504-20120

main33504-20120-C0iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..5F200209-200908

W(*LEP2),BLACK,TRIM0#,1#

sub33504-20120

main33504-20120-C0iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..GX..5F200209-200908

W(*LEP1),BLACK,TRIM0#,1#

sub33504-20120

main33504-35080-C0iGRJ120,KDJ120..6F..ARL200408-200908

BLACK,TRIM0#,1#

sub33504-35080

main33504-60140-C0iGRJ120,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..GX..(ARL,GCC,GEN)200209-200908

BLACK,TRIM0#,1#

main33504-60150-C0iGRJ120,KDJ120,KZJ120,RZJ120..ATM..GX..ARL200209-200908

W(*LEP2),BLACK,TRIM0#,1#

main33504-60150-C0iGRJ12#,KDJ120,KZJ120..ATM..VX..(ARL,GCC,GEN)200209-200908

BLACK,TRIM0#,1#

main33504-60150-C0iGRJ12#,KDJ120,KZJ120..ATM..VX..(ARL,GCC,GEN)200209-200908

W(*LEP1),BLACK,TRIM0#,1#

main33504-60150-C0iGRJ120..GX..CHI200309

BLACK,TRIM1#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iLJ12#,RZJ12#..5F200209

main33505-35030iGRJ120,KZJ120,TRJ12#..5F200209

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60060iGRJ120,KZJ120,TRJ12#..5F200209

sub33506-60061

main33506-60110iLJ12#,RZJ12#..5F200209

main33506-60120iGRJ120,KDJ120..6F200408

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iGRJ120,KZJ120,LJ12#,TRJ12#..5F200209

main90930-03114iRZJ12#..5F200209-200408

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60490iLJ12#..LHD200209

sub33530-60491

main33530-60500iLJ120..RHD200209

sub33530-60501

main33530-60510iGRJ120,RZJ12#..LHD..5F200209-200408

sub33530-60511

main33530-60520iGRJ120,RZJ120..RHD..5F200209-200408

sub33530-60521

main33530-60530iKZJ120..5F..GEN200209

sub33530-60531

main33530-60540iKZJ120..5F..ARL200209

sub33530-60541

main33530-60561iKDJ120..6F200608-200610

sub33530-60562

main33530-60562iKDJ120..6F200611

sub33530-60563

main33530-60580iGRJ120..6F..ARL200408-200607

sub33530-60581

main33530-60581iGRJ120..6F..ARL200608-200610

sub33530-60582

main33530-60582iGRJ120..6F..ARL200611

sub33530-60583

main33530-60590iGRJ120..VX..6F200408-200607

sub33530-60591

main33530-60591iGRJ120..VX..6F200608-200610

sub33530-60592

main33530-60592iGRJ120..VX..6F200611

sub33530-60593

main33530-60600iTRJ120..RHD200408

sub33530-60601

main33530-60610iTRJ12#..LHD..5F200408

sub33530-60611

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26008iGRJ120,RZJ12#..5F200209-200408

sub90502-26009

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGRJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..5F200209

main33548-60040iKDJ120..6F200408-200610

33554CAP, SHIFT LEVER

main33554-60120iGRJ120,RZJ12#..5F200209-200408

33555BOOT, SHIFT LEVER

main33555-60030iGRJ120,RZJ12#..5F200209-200408

9161160830

main91611-60830

91611B0825

main91611-B0825

12 parts on this diagram · 6 diagrams in section
