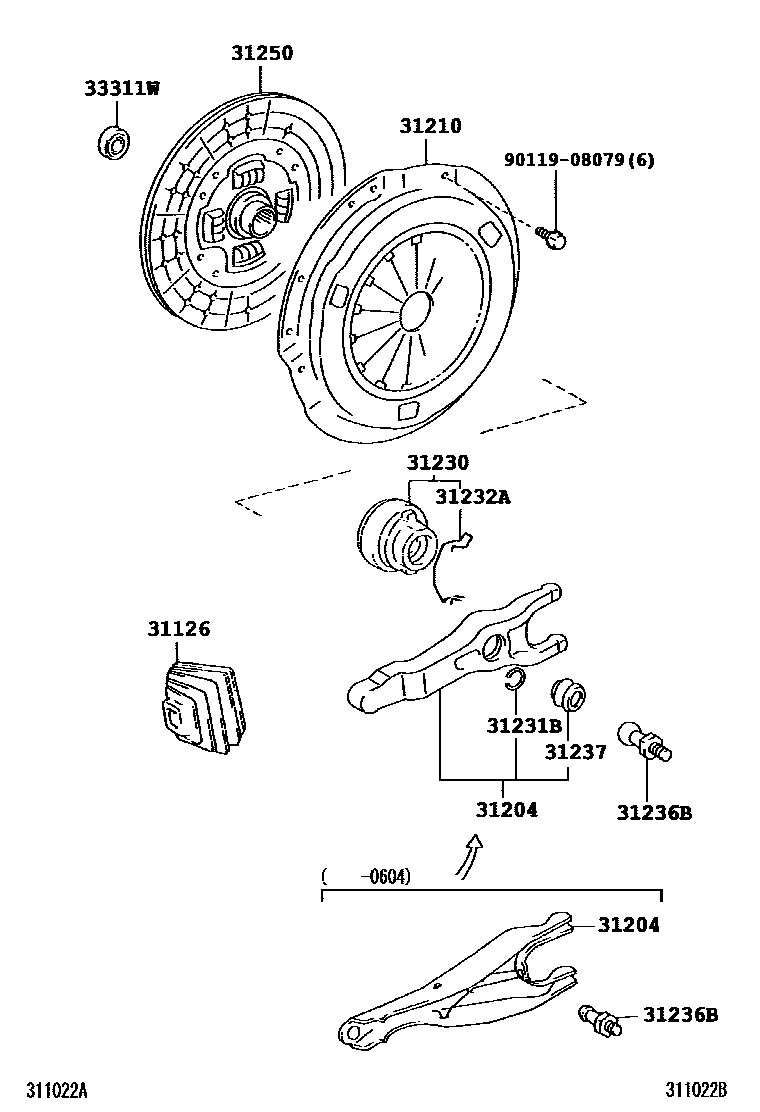

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iLJ12#200209-200908

main31126-26020iRZJ12#..5F200209-200408

main31126-36080iTRJ12#..5F200408

main31126-60081iKZJ120..5F200209

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZJ12#..5F200209-200408

main31204-35031iTRJ12#..5F200408

main31204-35050iLJ12#200209

main31204-35060iGRJ120..6F200408

main31204-35070iKZJ120..5F200604

sub31204-35071

main31204-60090iKZJ120..5F200209-200604

main31204-60110iGRJ120..5F200301-200408

main31204-60120iKDJ120..6F200608-200701

sub31204-60140

main31204-60140iKDJ120..6F200701

31210COVER ASSY, CLUTCH

main31210-26160iLJ12#200408-200602

sub31210-26161

main31210-26161iLJ12#200603-200702

sub31210-26162

main31210-26162iLJ12#200703-200705

sub31210-26163

main31210-26163iLJ12#200706-200902

sub31210-26164

main31210-26164iLJ12#200903

main31210-26170iTRJ12#..5F200408-200602

sub31210-26171

main31210-26171iTRJ12#..5F200603-200707

sub31210-26172

main31210-26172iTRJ12#..5F200708

main31210-35122iLJ12#200209-200407

sub31210-26160

main31210-35200iRZJ12#..5F200209-200408

sub31210-26170

main31210-60220iKZJ120..5F200209-200406

sub31210-60221

main31210-60221iKZJ120..5F200407-200711

sub31210-60270

main31210-60230iGRJ120..5F200301-200408

sub31210-60290

main31210-60240iGRJ120..6F200408-200707

sub31210-60280

main31210-60250iKDJ120..6F200608-200609

sub31210-60251

main31210-60251iKDJ120..6F200609

main31210-60270iKZJ120..5F200712

main31210-60280iGRJ120..6F200707

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLJ12#200209-200302

sub31230-35061

main31230-35061iLJ12#200302

main31230-35070iTRJ12#..5F200408-200805

sub31230-35071

main31230-35071iTRJ12#..5F200805

main31230-35091iRZJ12#..5F200209-200408

main31230-60220iKZJ120..5F200209-200803

sub31230-60221

main31230-60221iKZJ120..5F200803

main31230-60230iGRJ120..5F200301-200408

sub31230-60241

main31230-60240iGRJ120..6F200408

sub31230-60241

main31230-60250iKDJ120..6F200608

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90521-22003iGRJ120..6F200408

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTRJ12#..5F200805

TYPE A

main31232-35020iLJ12#,RZJ12#..5F200209

TYPE A:REFER ILLUST.

main31232-35030iLJ12#200302

TYPE B:REFER ILLUST.

main31232-35030iTRJ12#..5F200408

TYPE B

main31232-35040iRZJ12#..5F200209-200408

TYPE B:REFER ILLUST.

main31232-60030iKZJ120..5F200209

main31232-60050iGRJ120..MTM200301

31236BSUPPORT, RELEASE FORK

main31236-14030iKDJ120..6F200608

main31236-26010iLJ12#,RZJ12#..5F200209

main31236-35030iTRJ12#..5F200408

main31236-60060iKZJ120..5F200209-200604

main31236-71010iKZJ120..5F200604-200811

sub31236-71011

main31236-71011iKZJ120..5F200811

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-60010iKZJ120..5F200301-200408

31250DISC ASSY, CLUTCH

main31250-26182iLJ12#200209-200501

main31250-26220iLJ12#200502

sub31250-26221

main31250-26230iTRJ12#..5F200408

sub31250-26231

main31250-26250iKZJ120..5F200610-200901

sub31250-26251

main31250-26251iKZJ120..5F200902-200903

sub31250-26252

main31250-26252iKZJ120..5F200903

sub31250-26253

main31250-35400iRZJ12#..5F200209-200408

sub31250-26230

main31250-35450iGRJ120..6F200902-200903

sub31250-35451

main31250-35451iGRJ120..6F200904

sub31250-35452

main31250-60350iKZJ120..5F200209-200607

sub31250-60351

main31250-60351iKZJ120..5F200608-200609

sub31250-26250

main31250-60360iGRJ120..5F200301-200408

sub31250-60361

main31250-60370iGRJ120..6F200408-200901

sub31250-35450

main31250-60380iKDJ120..6F200608-200901

sub31250-60381

main31250-60381iKDJ120..6F200902-200905

sub31250-60382

main31250-60382iKDJ120..6F200906

sub31250-60383

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iGRJ120,KZJ120,LJ12#..5F200209-200908

sub90363-12024

main90363-12018iRZJ12#,TRJ12#..5F200209-200908

9011908079

main90119-08079

11 parts on this diagram · 7 diagrams in section
