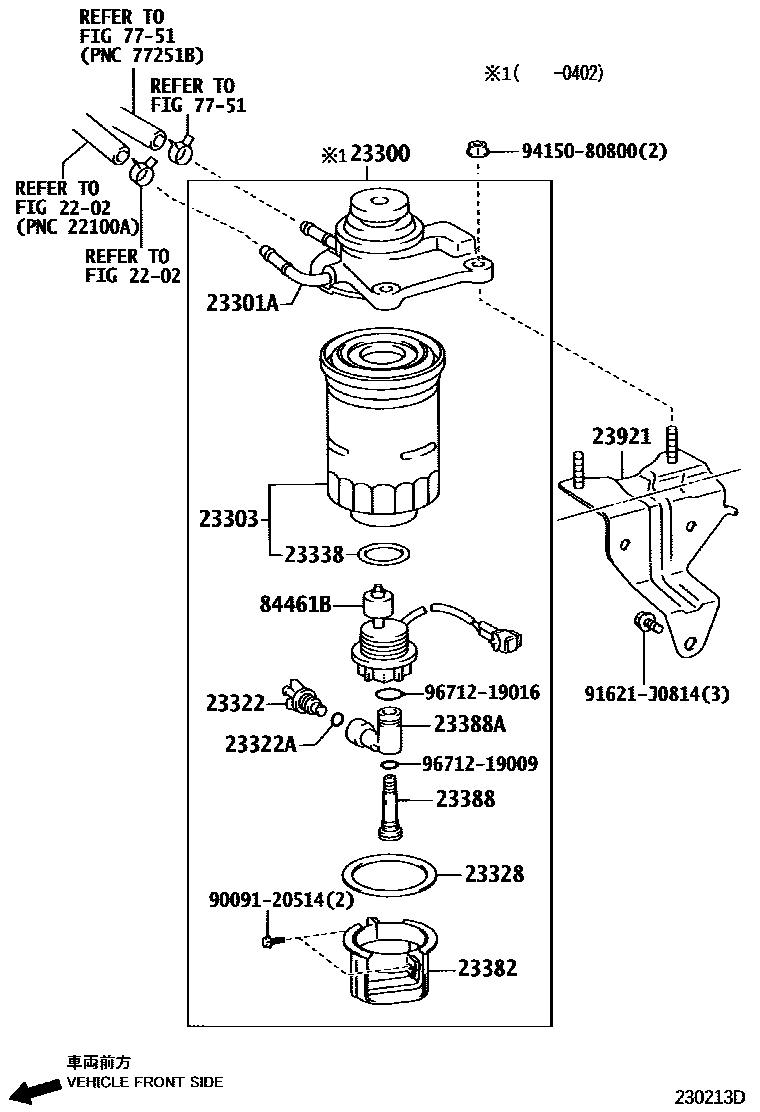

FUEL FILTER

0001 1 0002 1 0003 1

2202

23300FILTER ASSY, FUEL

main23300-30160i5LE..LJ12#200209-200402

sub23300-30181

23301ACAP ASSY, FUEL FILTER

main23380-30160i1KZTE..KZJ120200209-200809

sub23380-30161

main23380-30161i5LE..LJ12#200809-200908

main23380-30300i1KDFTV..KDJ120200608-200807

sub23380-30301

main23380-30301i1KDFTV..KDJ120200807-200908

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-30150i1KZTE..KZJ120200209-200402

main23390-30180i5LE..LJ12#200402-200908

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i5LE..LJ12#200209-200908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1K#..KDJ120,KZJ120200209-200908

23328GASKET(FOR FUEL FILTER)

main23385-30160i5LE..LJ12#200209-200908

23338GASKET(FOR WARNING SWITCH)

main23344-64010i5LE..LJ12#200209-200908

23382CASE, FUEL FILTER

main23382-30160i5LE..LJ12#200209-200908

23388PLUG, FUEL FILTER DRAIN

main23388-30160i5LE..LJ12#200209-200908

23388APLUG, FUEL FILTER DRAIN

main23388-30170i5LE..LJ12#200209-200908

23921SUPPORT, FUEL FILTER

main23921-30050i5LE..LJ12#200209-200908

7751

84461BSWITCH, LEVEL WARNING

main84461-60090iLJ12#200209-200908

9009120514

main90091-20514

91621J0814

main91621-J0814

9415080800

main94150-80800

9671219009

main96712-19009

9671219016

main96712-19016

19 parts on this diagram · 3 diagrams in section
