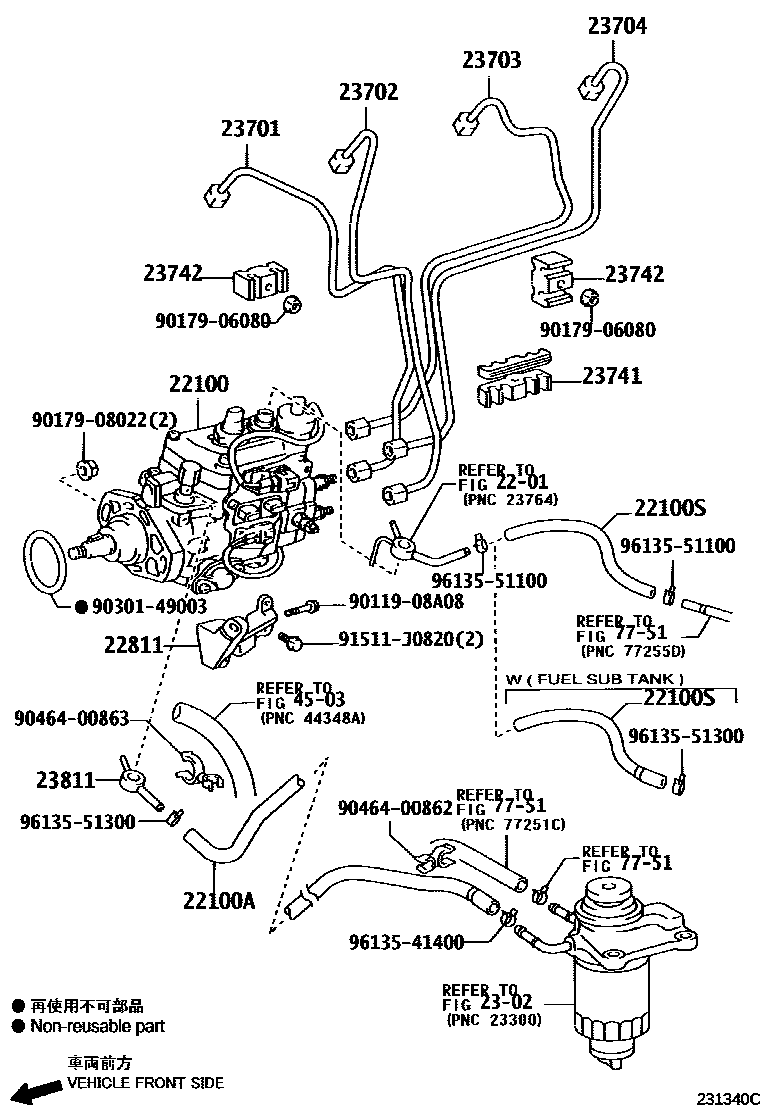

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-30040i1KDFTV..KDJ120¥214,000200608

sub22100-30090¥134,000

main22100-5D180i5LE..LJ12#¥215,000200209

main22100-67120i1KZTE..KZJ120¥342,000200209

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-30230i1KDFTV..KDJ120200608

main23271-54210i5LE..LJ120¥1,160200209

FUEL TANK-W(FUEL SUB TANK) 180L

main23271-67180i1KZTE..KZJ120¥1,170200209

FUEL TANK-W(FUEL SUB TANK) 180L

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30081i1KDFTV..KDJ120¥400200608

main23273-54140i5LE..LJ12#¥520200209

main23273-67120i1KZTE..KZJ120¥380200209

22811STAY, INJECTION PUMP, NO.1

main22811-05020i5LE..LJ12#¥1,290200209-200609

sub22811-05021

main22811-05021i5LE..LJ12#200609

main22811-67010i1KZTE..KZJ120¥2,190200209

2302

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30060i1KDFTV..KDJ120¥3,800200608

main23701-54140i5LE..LJ12#¥1,710200209

main23701-67021i1KZTE..KZJ120¥1,680200209

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30060i1KDFTV..KDJ120¥3,800200608

main23702-54140i5LE..LJ12#¥1,710200209

main23702-67021i1KZTE..KZJ120¥1,680200209

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30060i1KDFTV..KDJ120¥3,800200608

main23703-54100i5LE..LJ12#¥1,710200209

main23703-67031i1KZTE..KZJ120¥1,680200209

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-39055i1KDFTV..KDJ120¥3,800200608

main23704-54100i5LE..LJ12#¥1,710200209

main23704-67020i1KZTE..KZJ120¥1,680200209

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010i1KDFTV..KDJ120¥300200608

main23741-54030i5LE..LJ12#¥550200209

main23741-64030i1KZTE..KZJ120¥550200209

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010i1KDFTV..KDJ120¥1,080200608

main23742-67010i1KZTE..KZJ120¥380200209

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54220i5LE..LJ12#¥1,320200209

main23811-67020i1KZTE..KZJ120¥2,110200209

4503

7751

9011908A08

main90119-08A08¥170

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9046400862

main90464-00862¥150

9046400863

main90464-00863¥190

91511J0820

main91511-J0820¥130

9613541400

main96135-41400¥130

9613551100

main96135-51100¥130

9613551300

main96135-51300¥120

25 parts on this diagram · 3 diagrams in section
