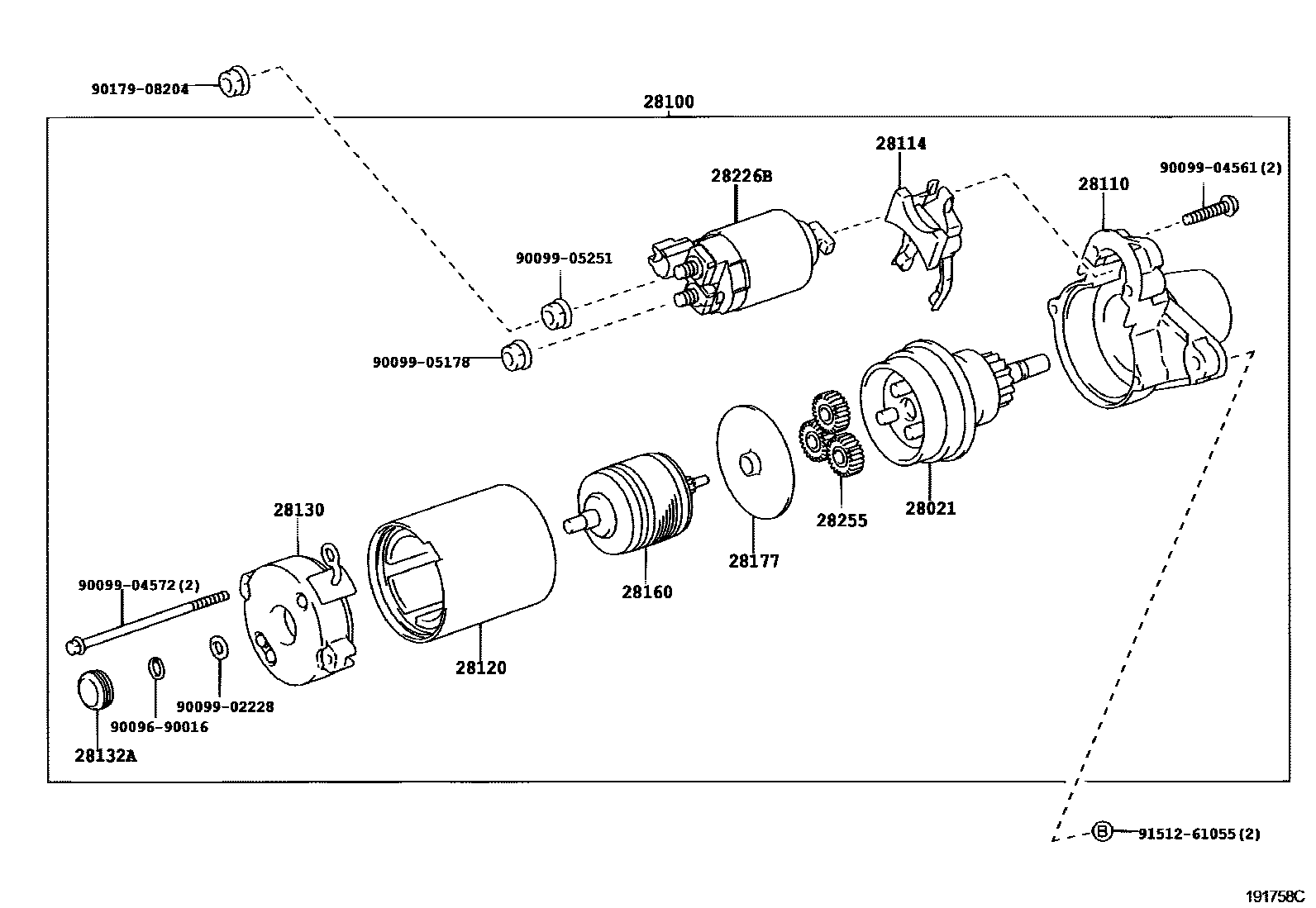

STARTER

0001 112V 1.6KW 0002 112V 2.2KW 0003 112V 2.2KW 0004 112V 2.7KW 0005 112V 1.6KW 0006 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1GRFE..GRJ12#..ARL,GCC,GEN200301

main28021-73020i3RZFE,2TRFE..RZJ12#,TRJ12#200209

28100STARTER ASSY

main28100-30050i1K#..KDJ120,KZJ120..ATM200209-200905

12V 2.7KW

main28100-30051i1K#..KDJ120,KZJ120..ATM200906

12V 2.7KW

main28100-31040i1GRFE..GRJ12#..ARL,GCC,GEN200301-200909

12V 1.6KW

main28100-31050i1GRFE..GRJ120..CHI200309

12V 2.0KW

main28100-54450i5LE..LJ12#200209-200910

12V 2.2KW

sub28100-54451

main28100-67050i1K#..KDJ120,KZJ120..MTM200209-200910

12V 2.2KW

sub28100-67051

main28100-75190i3RZFE,2TRFE..RZJ12#,TRJ12#200209-200909

12V 1.6KW

sub28100-75191

main28100-0P020i1GRFE..GRJ120..CHI200501-200710

12V 2.0KW,STARTING MOTOR-MADE IN CHINA

main28100-0P021i1GRFE..GRJ120..CHI200711

12V 2.0KW,STARTING MOTOR-MADE IN CHINA

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i1GRFE..GRJ12#..ARL,GCC,GEN200301

main28110-75190i3RZFE,2TRFE..RZJ12#,TRJ12#200209

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

28120YOKE ASSY, STARTER

main28120-28040i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200808

main28120-28060i1GRFE,2TRFE..GRJ12#,TRJ12#..ARL,GCC,GEN200808

main28120-54380i1GRFE..GRJ120..CHI200309

main28120-64040i1K#,5LE..KDJ120,KZJ120,LJ12#..MTM200209

main28120-67020i1K#..KDJ120,KZJ120..ATM200209

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31040i1GRFE..GRJ12#..ARL,GCC,GEN200301

main28130-75190i3RZFE,2TRFE..RZJ12#,TRJ12#200209

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

28160ARMATURE ASSY, STARTER

main28160-21060i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

main28160-54140i1K#..KDJ120,KZJ120..ATM200209

main28160-64041i1K#,5LE..KDJ120,KZJ120,LJ12#..MTM200209

main28160-75120i1GRFE..GRJ120..CHI200309

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i1GRFE..GRJ12#..ARL,GCC,GEN200301-200908

main28226-28051i3RZFE,2TRFE..RZJ12#,TRJ12#200209-200908

28255GEAR, PLANET

main28255-28040×3i1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009905251

main90099-05251

9017908204

main90179-08204

9151261055

main91512-61055

19 parts on this diagram · 6 diagrams in section
