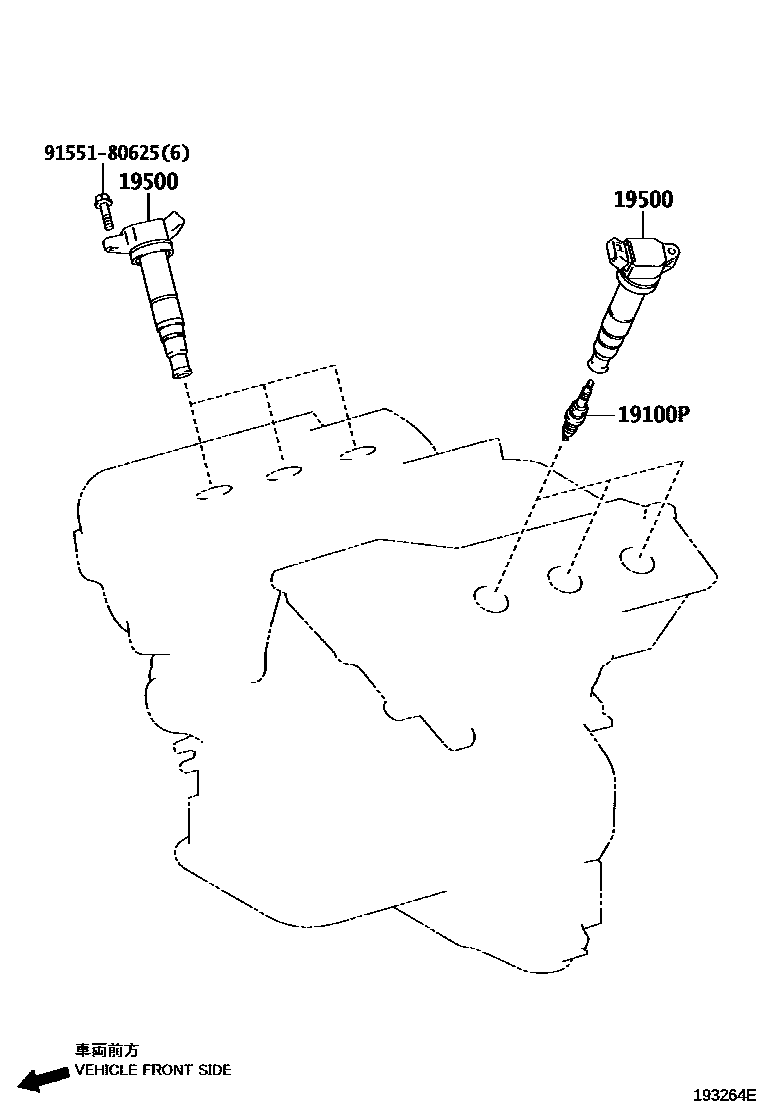

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1TYPE A 0005 1TYPE B 0006 1

19100PPLUG, SPARK

main90919-01164i3RZFE..RZJ12#..LHD..5F..GEN200209-200408

K16R-U11,OTHER CO IN S.AMERICA & NEW CALEDONIA

main90919-01176i3RZFE..RZJ12#..GEN200209-200408

K16R-U

main90919-01191i2TRFE..TRJ12#..LHD..5F..GEN200408

SK20HR11,UNLEADED GASOLINE SPEC

main90919-01235i1GRFE..GRJ12#..ARL,GCC,GEN200301-200408

K20HR-U11

sub90919-01236

19500COIL ASSY, IGNITION

main90919-02248i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200408

sub90919-02260

9155180625

main91551-80625

3 parts on this diagram · 6 diagrams in section
