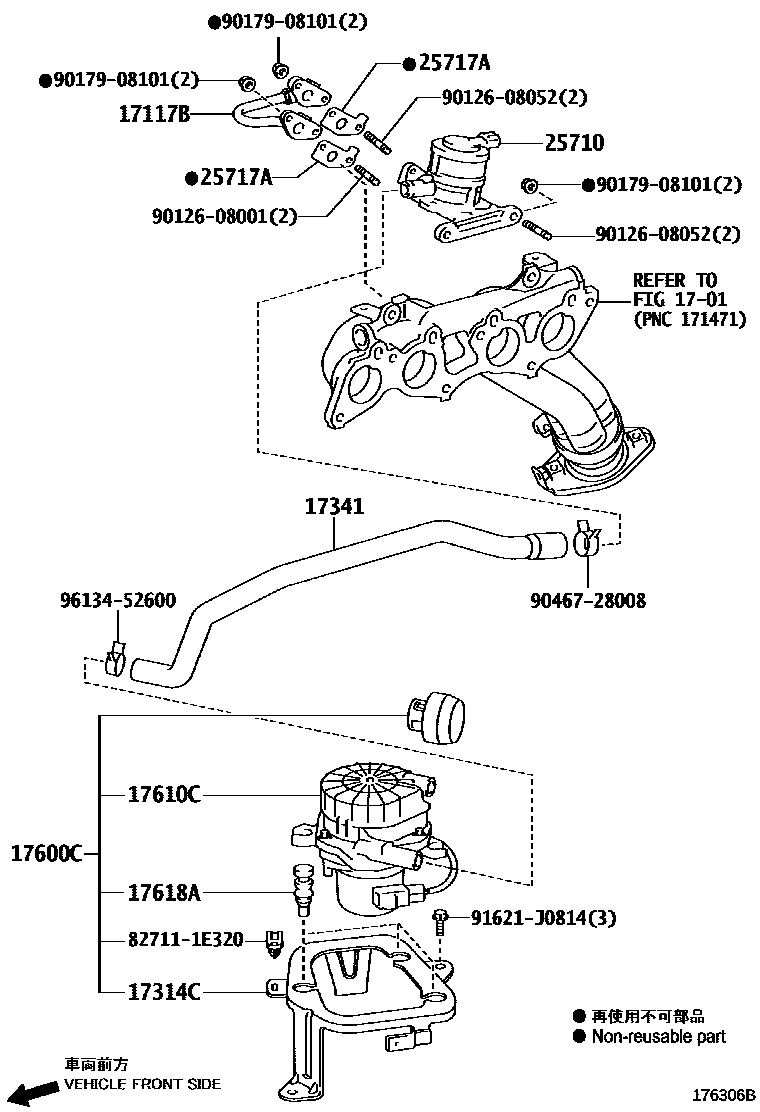

MANIFOLD AIR INJECTION SYSTEM
1701
17117BPIPE, INTAKE, NO.4
17314CBRACKET, AIR PUMP
OTHER CO IN S.AMERICA & NEW CALEDONIA
VIETNAM SPEC
UNLEADED GASOLINE SPEC
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
OTHER CO IN S.AMERICA & NEW CALEDONIA
VIETNAM SPEC
UNLEADED GASOLINE SPEC
17600CPUMP ASSY, AIR
OTHER CO IN S.AMERICA & NEW CALEDONIA
VIETNAM SPEC
UNLEADED GASOLINE SPEC
17610CPUMP ASSY, AIR
OTHER CO IN S.AMERICA & NEW CALEDONIA
VIETNAM SPEC
UNLEADED GASOLINE SPEC
17618AINSULATOR, AIR PUMP
OTHER CO IN S.AMERICA & NEW CALEDONIA
VIETNAM SPEC
UNLEADED GASOLINE SPEC
25710VALVE ASSY, AIR SWITCHING
25717AGASKET, AIR SWITCHING VALVE
OTHER CO IN S.AMERICA & NEW CALEDONIA
VIETNAM SPEC
UNLEADED GASOLINE SPEC
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9012608001
main90126-08001
9012608052
main90126-08052
9017908101
main90179-08101
9046728008
main90467-28008
91621J0814
main91621-J0814
9613452600
main96134-52600
16 parts on this diagram · 1 diagram in section
