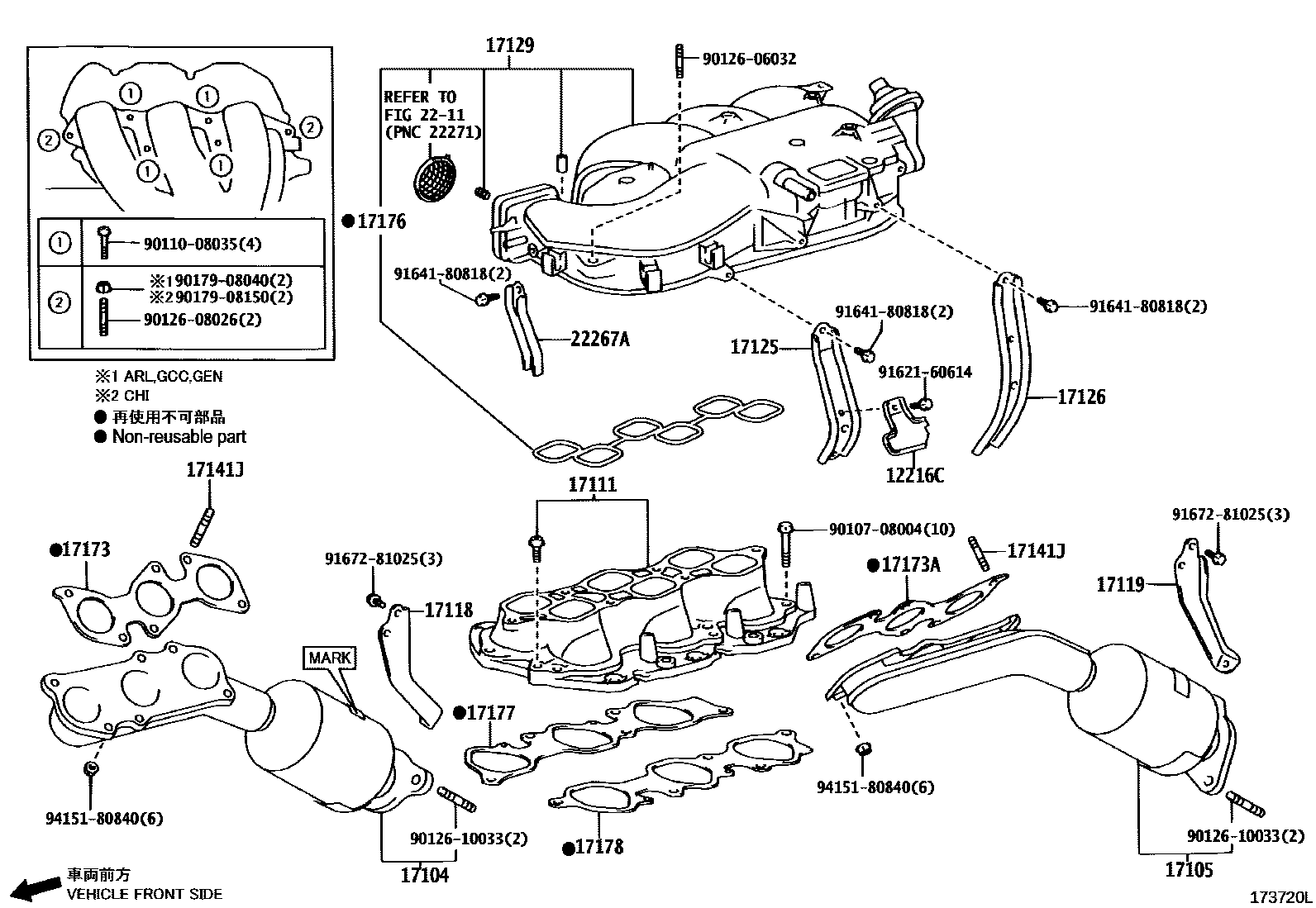

MANIFOLD
12216CPLATE, OIL BAFFLE
17104MANIFOLD SUB-ASSY, EXHAUST, RH
*114=*689
*114=*689,MARK 17140-31011
sub17140-31021
*114=*565,MYANMER SPEC
17111MANIFOLD, INTAKE
sub17101-31011
MOZANBEEK SPEC
SOUTH AFRICA SPEC
1KZ STEP2 COUNTRY SPEC
BRAZIL SPEC
OTHER CO IN S.AMERICA & NEW CALEDONIA
ARGENTINA SPEC
AREA OF ARABIC EXP. SAUDI SPEC
PHILIPPINE SPEC
VIETNAM SPEC
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17141MANIFOLD, EXHAUST
OTHER CO IN S.AMERICA & NEW CALEDONIA
AREA OF ARABIC EXP. SAUDI SPEC
ARGENTINA SPEC
1KZ STEP2 COUNTRY SPEC
BRAZIL SPEC
PHILIPPINE SPEC
VIETNAM SPEC
SOUTH AFRICA SPEC
MOZANBEEK SPEC
TYPE A:REFER ILLUST.
OTHER CO IN S.AMERICA & NEW CALEDONIA,TYPE B:REFER ILLUST.
VIETNAM SPEC,TYPE B:REFER ILLUST.
UNLEADED GASOLINE SPEC,TYPE B:REFER ILLUST.
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17173GASKET, EXHAUST MANIFOLD TO HEAD
PHILIPPINE SPEC
AREA OF ARABIC EXP. SAUDI SPEC
SOUTH AFRICA SPEC
VIETNAM SPEC
TYPE A:REFER ILLUST.
VIETNAM SPEC,TYPE B:REFER ILLUST.
UNLEADED GASOLINE SPEC,TYPE B:REFER ILLUST.
OTHER CO IN S.AMERICA & NEW CALEDONIA,TYPE B:REFER ILLUST.
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
PHILIPPINE SPEC
AREA OF ARABIC EXP. SAUDI SPEC
SOUTH AFRICA SPEC
VIETNAM SPEC
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211
22267ABRACKET, THROTTLE BODY
9010708004
main90107-08004
9011008035
main90110-08035
9012606032
main90126-06032
9012608026
main90126-08026
9012610033
main90126-10033
9017908040
main90179-08040
9017908150
main90179-08150
9162160614
main91621-60614
9164180818
main91641-80818
9167281025
main91672-81025
9415180840
main94151-80840
29 parts on this diagram · 8 diagrams in section
