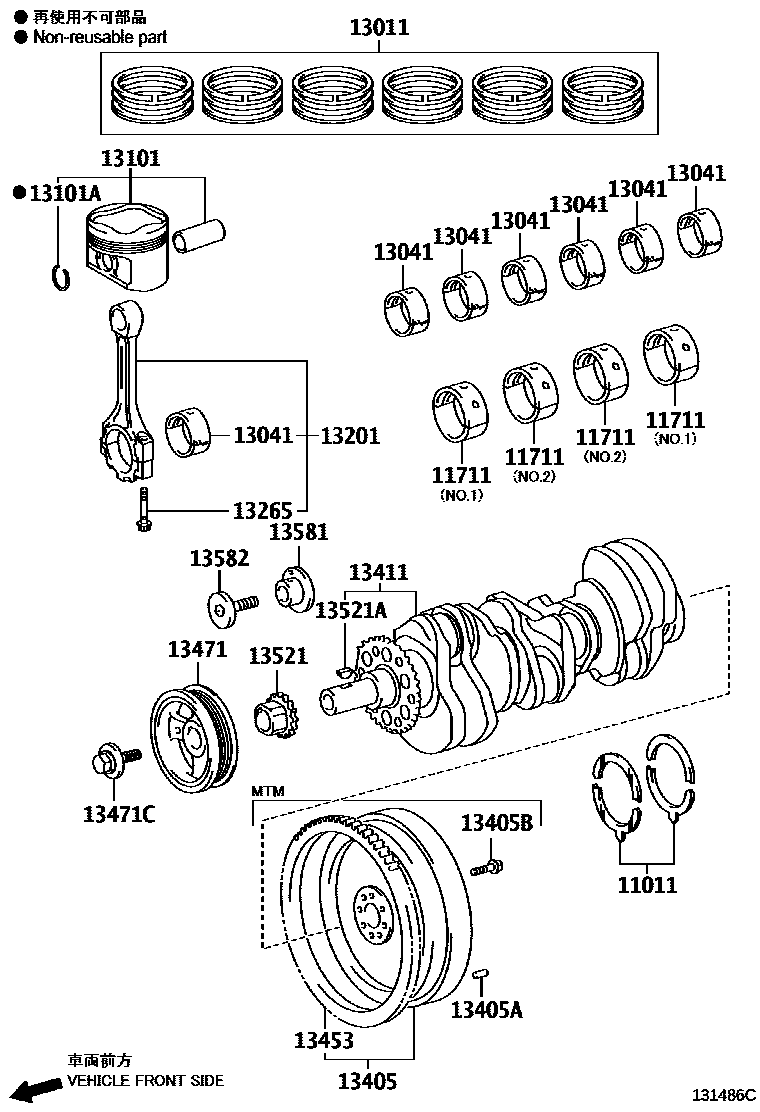

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
STD
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13011RING SET, PISTON
STD
STD
STD
STD,UNLEADED GASOLINE SPEC
STD
STD,OTHER CO IN S.AMERICA & NEW CALEDONIA
STD,VIETNAM SPEC
STD
STD,UNLEADED GASOLINE SPEC
STD,VIETNAM SPEC
STD,OTHER CO IN S.AMERICA & NEW CALEDONIA
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50,OTHER CO IN S.AMERICA & NEW CALEDONIA
O/S 0.50,VIETNAM SPEC
O/S 0.50,UNLEADED GASOLINE SPEC
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50,OTHER CO IN S.AMERICA & NEW CALEDONIA
O/S 0.50,VIETNAM SPEC
O/S 0.50,UNLEADED GASOLINE SPEC
O/S 0.50
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,REFER REPAIR MANUAL
sub13101-31030
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
sub13201-30021
sub13201-39125
sub13201-39126
sub13201-39235
sub13201-59216
sub13201-79466
sub13201-79576
sub13201-79577
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=23,OD=8
L=20,OD=10
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13582SHAFT, IDLE GEAR, NO.2
19 parts on this diagram · 6 diagrams in section
