VENTILATION HOSE

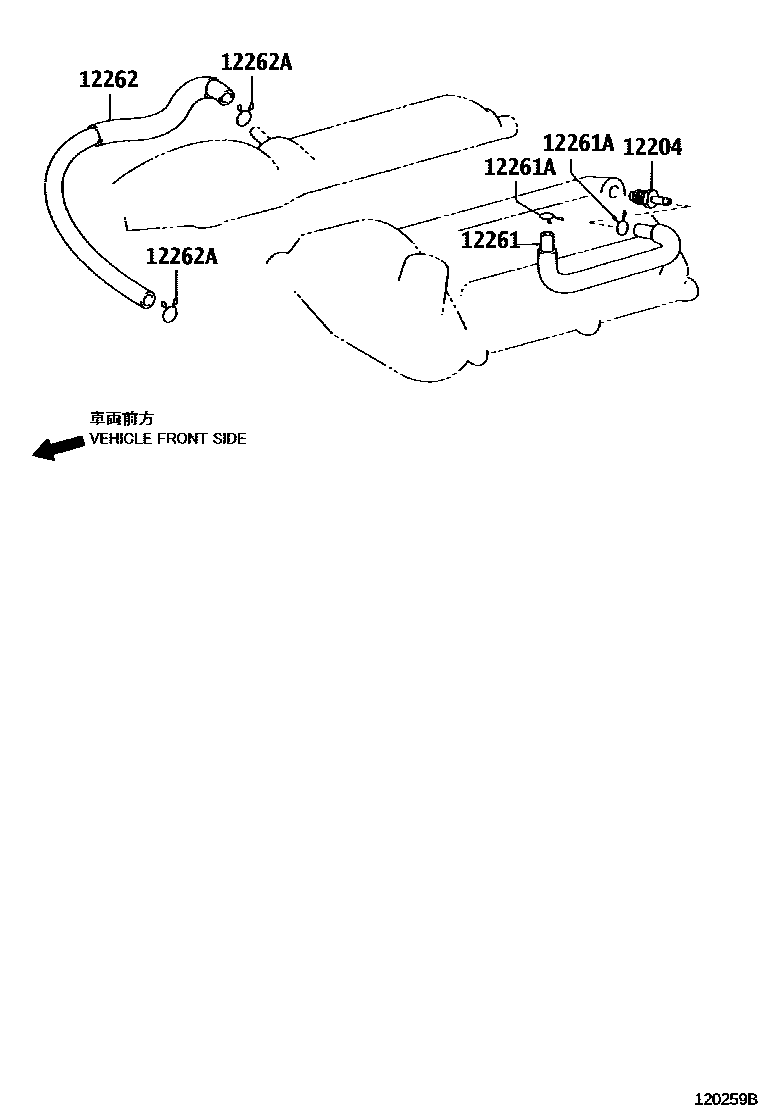

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-0C010i200408
main12204-31030i200301-200408
main12204-75020i200209-200408
12261HOSE, VENTILATION
main12261-30040i200608
main12261-31030i200301-200408
main12261-54200i200209
main12261-67010i200209-200704
main12261-75080i200209-200408
main12261-75100i200408
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14001i200209-200408
main90467-14017i200301-200408
main90467-18003i200209
12262HOSE, VENTILATION, NO.2
main12262-30040i200608
main12262-30060i200709
main12262-31030i200301-200408
main12262-67020i200209-200709
sub12262-30060
main12262-75130i200209-200408
main12262-75190i200408
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-21004i200408
NO.2
main90467-21152i200301-200408
main90467-22010i200209-200408
main90467-24038i200408
NO.1

5 parts on this diagram · 6 diagrams in section
