MOUNTING

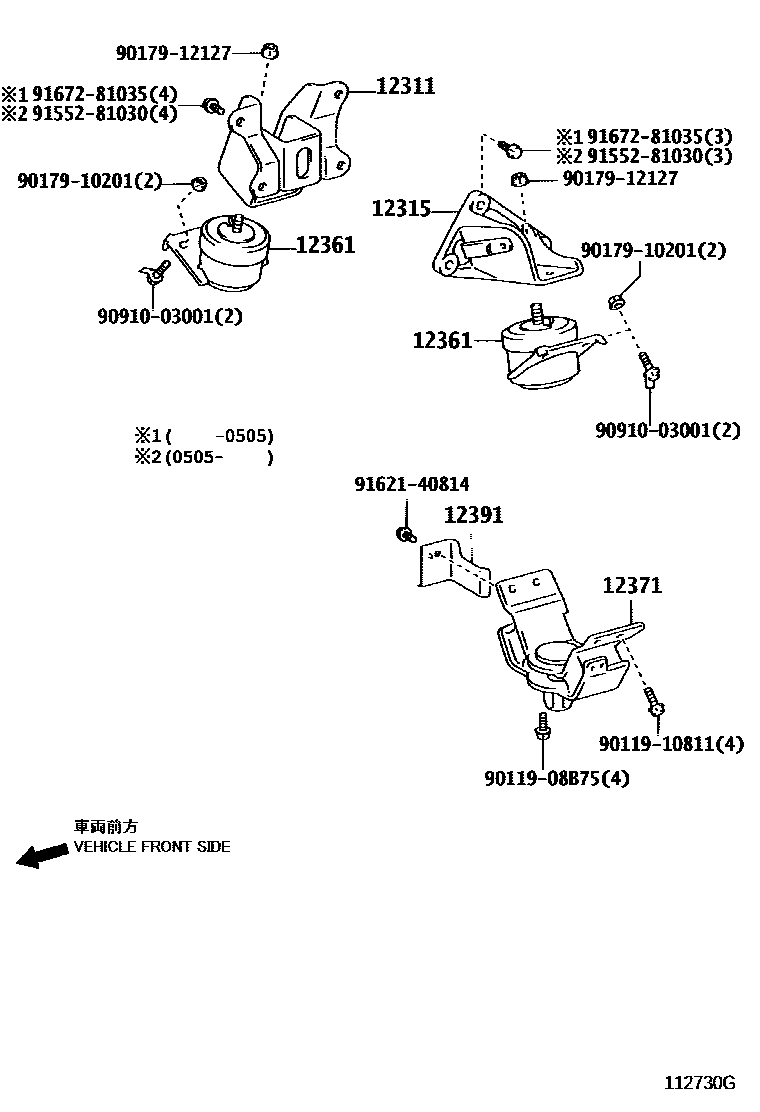

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30060i200608-200908

main12311-31020i200301-200505

main12311-31021i200505

main12311-54270i200209

main12311-67050i200209

main12311-75090i200209-200408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-30060i200608-200908

main12315-31050i200301-200505

main12315-31051i200505

main12315-54060i200209

main12315-67030i200209

main12315-75090i200209-200408

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30050i200608-200810

main12361-30051i200811

main12361-31080i200301-200811

main12361-31081i200812

main12361-54121i200209

main12361-67030i200209

main12361-75070i200209-200811

main12361-75071i200812

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-30060i200209-200811

main12371-30070i200608-200811

main12371-30080i200812

main12371-30090i200812

main12371-31050i200301-200409

main12371-54200i200209

main12371-75140i200209-200408

main12371-75160i200408

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31020i200301-200409

main12391-50070i200209-200408

9011908B75

main90119-08B75

9011910811

main90119-10811

9017910201

main90179-10201

9017912127

main90179-12127

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167281035

main91672-81035

13 parts on this diagram · 6 diagrams in section
