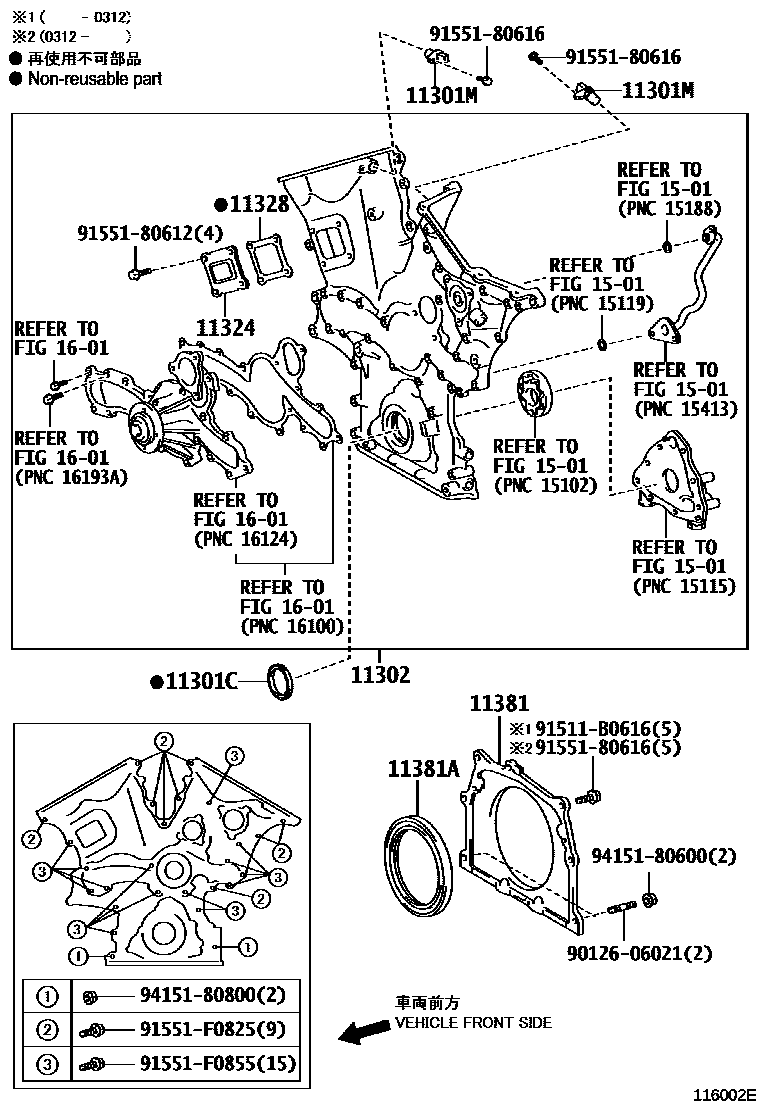

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-75021i3RZFE..RZJ12#200209-200408

main11311-54052i5LE..LJ12#200209

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42031i5LE..LJ12#200209

main90311-42036i1GRFE..GRJ12#..ARL,GCC,GEN200301-200403

main90311-42037i1GRFE..GRJ120..CHI200309-200904

sub90311-42045

main90311-42045i1GRFE..GRJ120..CHI200904

main90311-48020i2TRFE..TRJ12#200408-200704

main90311-48020i3RZFE..RZJ12#200209-200408

KOYO,NOK

main90311-48029i2TRFE..TRJ12#200704

sub90311-48031

11301MSENSOR, CAM POSITION

main90919-05026i1GRFE..GRJ120..CHI200301-200409

main90919-05036i2TRFE..TRJ12#200408

main90919-05060i1GRFE..GRJ120..CHI200408-201003

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-67020i1KZTE..KZJ120200209

main11310-31010i1GRFE..GRJ12#200301-200308

sub11310-31011

sub90126-08047

main11310-31011i1GRFE..GRJ120..CHI200308-200408

sub11310-31012

main11310-31012i1GRFE..GRJ12#..5FC,6F200408-200409

sub11310-31013

sub16603-31030

sub16649-31010

main11310-31013i1GRFE..GRJ12#..ARL,GCC,GEN200409

sub11310-31014

main11310-75070i2TRFE..TRJ12#200408-200711

sub11310-75071

main11310-75071i2TRFE..TRJ12#200711-200902

sub11310-75073

main11310-75073i2TRFE..TRJ12#200902

sub11310-75074

sub91671-80840

main11321-54020i5LE..LJ12#200209

sub11321-54021

11324PLATE, TIMING CHAIN COVER

main11324-31010i1GRFE..GRJ12#200301-200308

main11324-31020i1GRFE..GRJ12#..ARL,GCC,GEN200308

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5LE..LJ12#200301

(L)

main11328-31020i1GRFE..GRJ12#200301-200308

main11328-31030i1GRFE..GRJ12#..ARL,GCC,GEN200308

main11328-54021i5LE..LJ12#200301

(J)

main11328-67020i1KZTE..KZJ120200209

main11328-75021i3RZFE..RZJ12#200209-200408

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i1GRFE..GRJ120..CHI200301-200408

main11381-54030i5LE..LJ12#200209

main11381-67020i1K#..KDJ120,KZJ120200209

main11381-75010i3RZFE..RZJ12#200209-200812

sub11381-75011

main11381-75011i2TRFE..TRJ12#200812

sub11381-75012

11381ASEAL, ENGINE REAR OIL

main90311-85008i5LE..LJ12#200209

main90311-88005i3RZFE..RZJ12#200209-200408

NOK,ARS

sub90311-88006

main90311-88005i2TRFE..TRJ12#200408

sub90311-88006

main90311-95008i1K#..KDJ120,KZJ120200209

main90311-99010i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200408

1501

1601

9012606021

main90126-06021

91511B0616

main91511-B0616

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 7 diagrams in section
