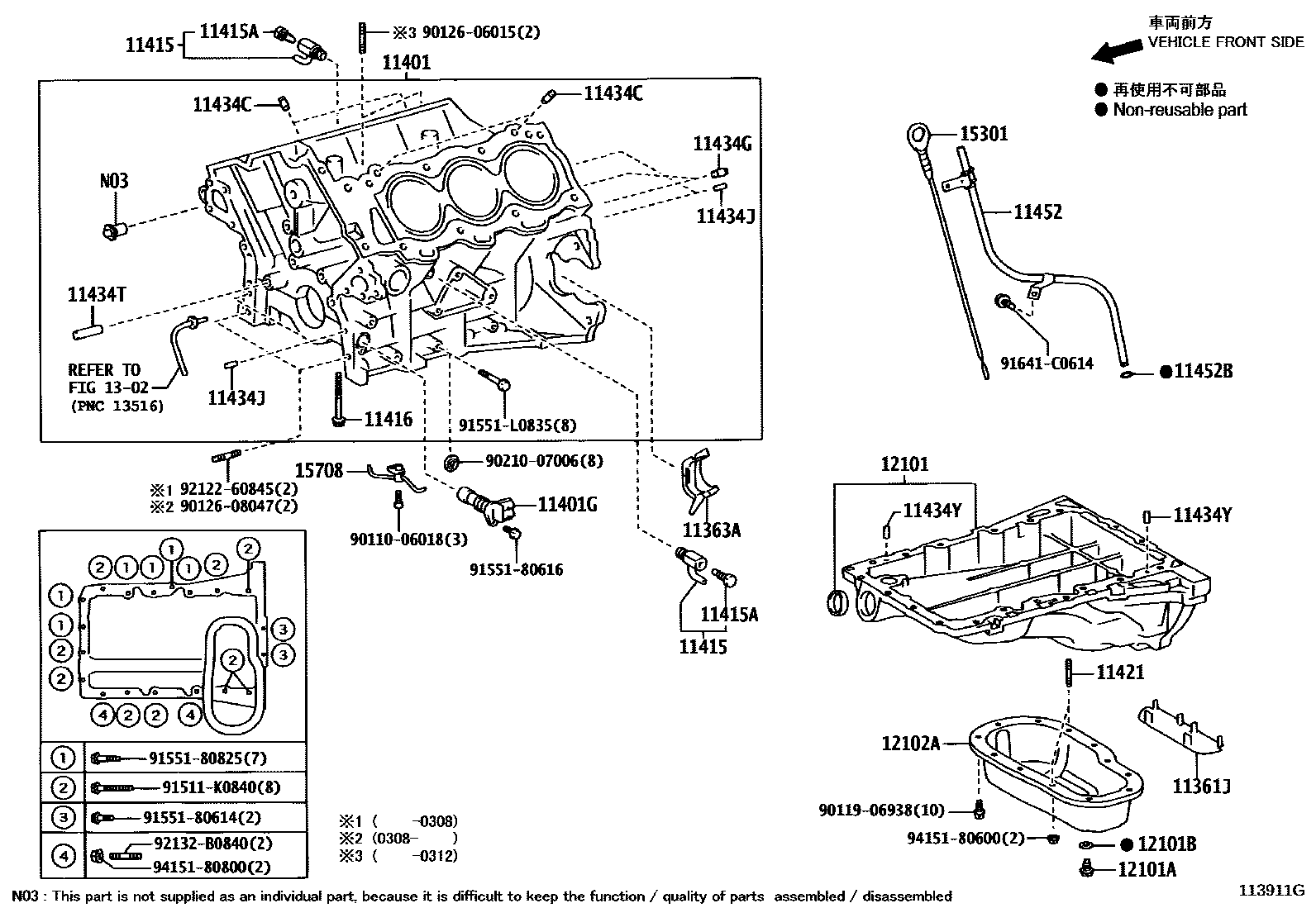

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200408

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GRJ12#..ARL,GCC,GEN200301-200408

sub11363-31050

11401BLOCK SUB-ASSY, CYLINDER

main11401-39575i1GRFE..GRJ120..CHI200301-200409

sub11401-39695

main11401-39695i1GRFE..GRJ12#..ARL,GCC,GEN200408-200906

sub11011-31070

sub11401-80790

sub11401-80791

main11401-39875i1KDFTV..KDJ120200608-200612

sub11401-39876

main11401-39876i1KDFTV..KDJ120200612-200904

sub11401-39877

main11401-39877i1KDFTV..KDJ120200904-200906

sub11401-39878

main11401-39878i1KDFTV..KDJ120200906

sub11401-80060

main11401-59765i5LE..LJ12#200209-200612

sub11401-59766

main11401-59766i5LE..LJ12#200612-200801

sub11401-59767

main11401-59767i5LE..LJ12#200801

main11401-69839i1KZTE..KZJ120200209-200408

sub11401-80766

main11401-79686i3RZFE..RZJ12#200209-200408

sub11401-79687

main11401-80737i1KZTE..KZJ120200408-200612

sub11401-80766

main11401-80741i2TRFE..TRJ12#200408

sub11401-75081

main11401-80766i1KZTE..KZJ120200612

main11401-80790i1GRFE..GRJ12#..ARL,GCC,GEN200906-200912

sub11401-80795

main11401-80795i1GRFE..GRJ120200912

sub11401-80845

11401GSENSOR, CRANK POSITION

main90919-05005i1KZTE..KZJ120200209

main90919-05057i1GRFE..GRJ12#..ARL,GCC,GEN200301-201003

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09110i5LE..LJ12#200209

main90910-09118i3RZFE..RZJ12#200209-200408

main90910-09125i1GRFE..GRJ12#..ARL,GCC,GEN200301-200503

sub90910-09129

main90910-09129i1GRFE..GRJ120..CHI200503

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3RZFE..RZJ12#200209-200408

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061i5LE..LJ12#200209

main90910-02072i1GRFE..GRJ12#..ARL,GCC,GEN200301-200912

sub90910-02176

main90910-02092i3RZFE..RZJ12#200209-200408

sub90910-02179

main90910-02113i1K#..KDJ120,KZJ120200209

main90910-02176i1GRFE..GRJ120200912

11421BOLT, STUD(FOR OIL PAN)

main90126-06015i2TRFE..TRJ12#200301-200312

main90126-06028i1GRFE..GRJ120..CHI200312-200408

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1GRFE..GRJ120..CHI200309

L=18,OD=8

main90253-15005i5LE..LJ12#200209

L=7,OD=14.5

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i5LE..LJ12#200209

main90250-10192i1K#..KDJ120,KZJ120200209

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097i1GRFE..GRJ120..CHI200309

main90253-15001i2TRFE..TRJ12#200408

main90253-15016i1K#..KDJ120,KZJ120200209-200408

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GRJ12#..ARL,GCC,GEN200309

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200408

main90253-14004i2TRFE..TRJ12#200408

11452GUIDE, OIL LEVEL GAGE

main11409-75020i3RZFE..RZJ12#200209-200408

main11409-75071i2TRFE..TRJ12#200408

main11452-30080i1KDFTV..KDJ120200608

main11452-31030i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200408

main11452-54180i5LE..LJ12#200209

main11452-67050i1KZTE..KZJ120200209

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09018i5LE..LJ12#200209

main96721-19010i1GRFE..GRJ12#..ARL,GCC,GEN200301-200904

main96723-19010i1GRFE..GRJ120..CHI200904

12101PAN SUB-ASSY, OIL

main12101-30080i1K#..KDJ120,KZJ120200209

sub12101-30081

main12101-31070i1GRFE..GRJ12#..ARL,GCC,GEN200301-200407

sub12101-31071

main12101-31071i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200407-200408

main12101-54330i5LE..LJ12#200209

main12101-75130i3RZFE..RZJ12#200209-200408

sub12101-75120

sub12129-54010

sub91651-60614

main12101-75140i2TRFE..TRJ12#200408

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3RZFE..RZJ12#200209-200408

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3RZFE..RZJ12#200209-200408

12102APAN SUB-ASSY, OIL, NO.2

main12102-30020i1K#..KDJ120,KZJ120200209

main12102-31010i1GRFE..GRJ12#..ARL,GCC,GEN200301-200408

main12102-75021i2TRFE..TRJ12#200408

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31060i1GRFE..GRJ120..CHI200301-200408

main15301-54111i5LE..LJ12#200209

main15301-67031i1K#..KDJ120,KZJ120200209

main15301-75011i3RZFE..RZJ12#200209-200408

main15301-75091i2TRFE..TRJ12#200408

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-30010i1KZTE..KZJ120200209-200307

sub15708-30011

main15708-30011i1K#..KDJ120,KZJ120200307

main15708-31020i1GRFE..GRJ12#..(5FC,6F)..(ARL,GCC,GEN)200301-200408

main15708-54060i5LE..LJ12#200209

main15708-75010i2TRFE..TRJ12#200408

sub15708-75020

9011006018

main90110-06018

9011906938

main90119-06938

9012606015

main90126-06015

9012608047

main90126-08047

9021007006

main90210-07006

91511K0840

main91511-K0840

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

91551L0835

main91551-L0835

91641C0614

main91641-C0614

9212260845

main92122-60845

92132B0840

main92132-B0840

9415180600

main94151-80600

9415180800

main94151-80800

37 parts on this diagram · 7 diagrams in section
