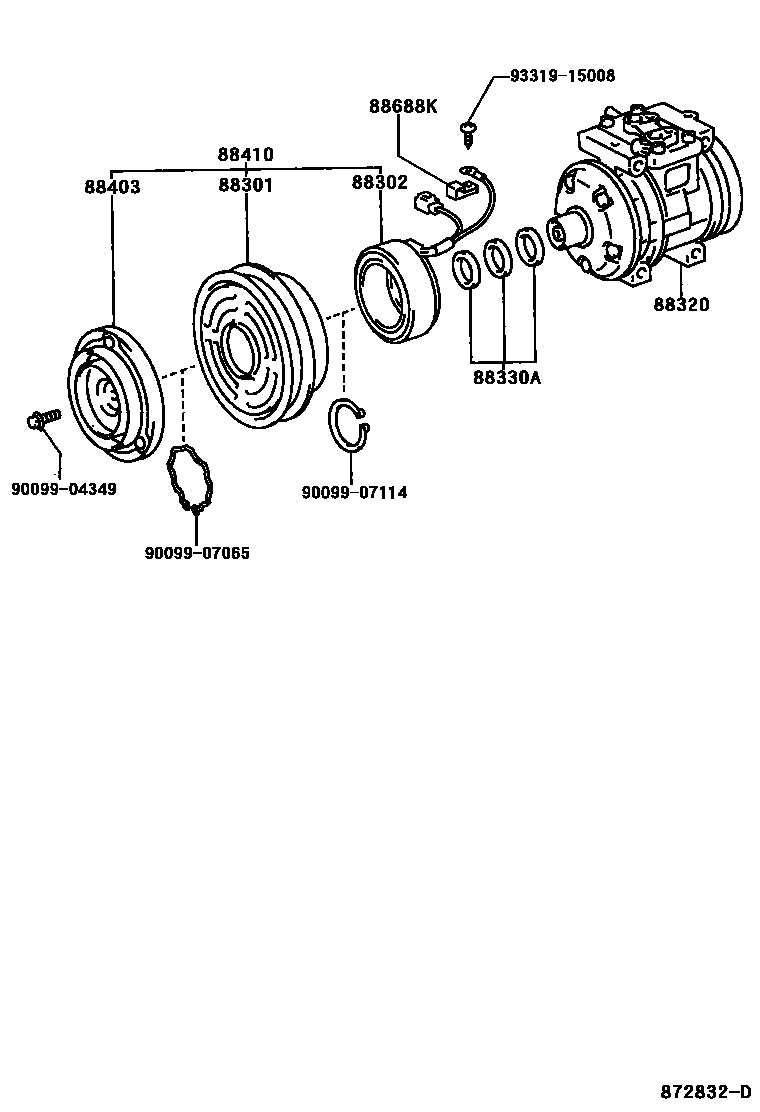

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZJ90;RZJ95..GX,VX;RZJ95..LHD..STD199604-200812

main88412-26030iKZJ9#,LJ9#199604-200209

main88412-35090iVZJ9#199604-200812

main88412-95J00iRZJ90..CO199808-199910

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199708

sub88411-2A030

main88411-2A030iRZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#199708-200812

88320COMPRESSOR ASSY, COOLER

main88320-26H91iRZJ90200608-200812

main88320-35450iRZJ95..RHD..STD199604-200608

sub88320-26H91

main88320-35600iVZJ95..ARL,CO199604-200812

main88320-35610iKZJ9#199604-200209

sub88320-26H91

main88320-60640iLJ9#199604-200209

sub88320-26H91

main88320-60650iVZJ9#..GCC199608-200310

sub88320-26H91

main88320-60660iRZJ95..GCC199604-200312

sub88320-26H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200812

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200812

88410CLUTCH ASSY, MAGNET

main88410-34040iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200812

main88410-35250iKZJ9#,LJ9#199604-200209

main88410-35340iVZJ9#199604-200812

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770iKZJ9#,LJ9#..GEN,MA199604-200209

main88688-2D770iKZJ95..ATM..ARL199909-200209

MAKER OPTION

main88688-35390iRZJ90;RZJ95..LHD..STD;RZJ95..(GX,VX)..(ARL,GEN,MA)199604-200812

main88688-35390iKZJ95..ARL199909-200209

DEALER OPTION

main88688-37320iVZJ95..ARL,CO199604-200812

main88688-60610iRZJ95,VZJ9#..GCC199604-200312

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

11 parts on this diagram · 5 diagrams in section
