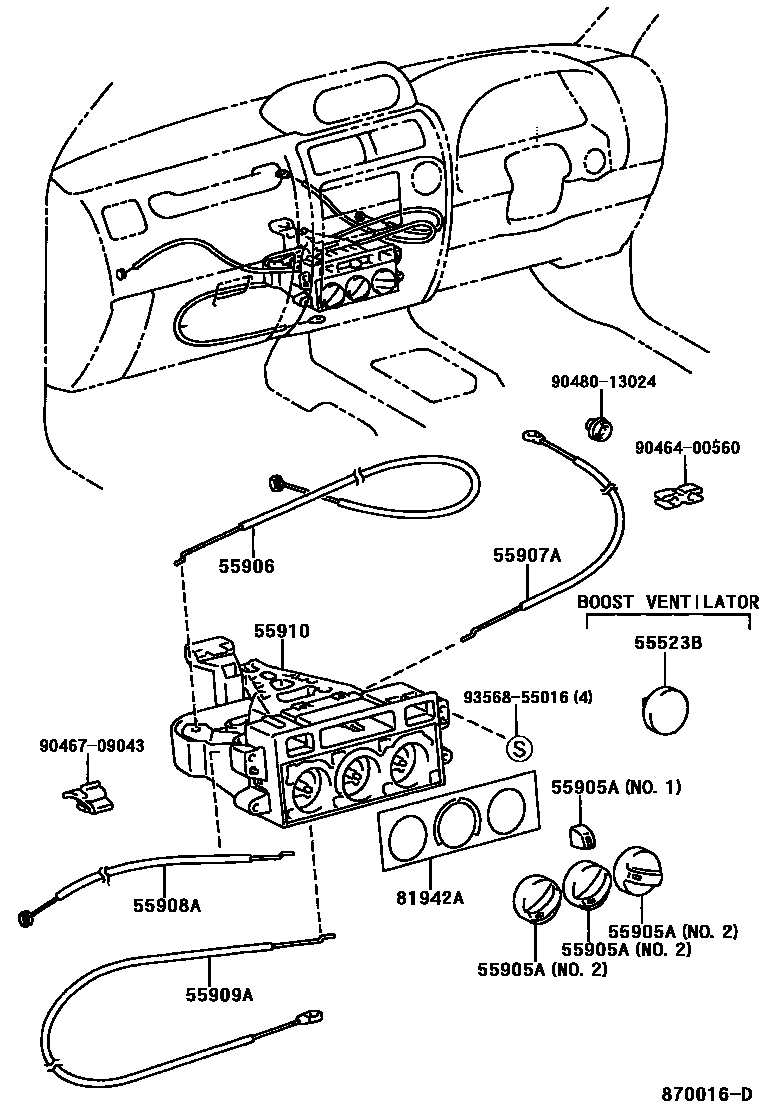

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTOROL..MANUAL A/C 0002 1FRONT CONTROL--AUTO A/C 0003 1FRONT AIR DUCT 0004 1REAR CONTROL & REAR AIR DUCT 0005 1REAR COOLER AIR DUCT 0006 1SENSOR

55523BCOVER, HEATER CONTROL OPENING

main55523-20030iLJ9#,RZJ9#..(CBR,DSL)..GEN199604-199906

55905AKNOB, HEATER CONTROL

main55905-2B040iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199910

NO.1

main55905-60160iVZJ95..GX;VZJ95..CO;KZJ9#,LJ9#,RZJ9#199604-199910

NO.2

main55905-60170iVZJ9#..VX..(ARL,GCC)199906-200310

TEMP

main55905-60180iVZJ95..VX..ARL199906-200209

A/C

main55905-60190iVZJ9#..VX..(ARL,GCC)199906-200310

FRONT DEF

main55905-60200iVZJ9#..VX..(ARL,GCC)199906-200310

REAR DEF

main55905-60210iVZJ9#..VX..(ARL,GCC)199906-200310

MODE

main55905-60220iVZJ9#..VX..(ARL,GCC)199906-200310

OFF

main55905-60230iVZJ9#..VX..(ARL,GCC)199906-200310

RECIRCU/FRESH

main55905-60240iVZJ95..VX..ARL199906-200209

AUTO

main55905-60320iVZJ9#..GCC199906-200310

AUTO

main55905-60330iVZJ9#..GCC199906-200310

A/C

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-60090iVZJ95..GX;KZJ95,LJ9#,RZJ95..RHD199604-200412

main55906-60100iVZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD199604-199910

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60120iLJ9#,RZJ95,VZJ95..RHD199604-200412

main55907-60130iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199604-199906

sub55907-60150

main55907-60150iVZJ95..CO;KZJ95,LJ9#,RZJ9#..LHD200201

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-60070iLJ9#,RZJ95,VZJ95..RHD199604-200412

main55908-60080iRZJ90,VZJ95..CO199604-199910

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-60060iLJ9#,RZJ95,VZJ95..RHD199604-200412

main55909-60080iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199604-199910

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60150iVZJ95..GX;KZJ95,LJ9#,RZJ95..RHD199604-200412

W(AIR CONDITIONER)

main55910-60160iVZJ95..CO;KZJ9#,LJ9#,RZJ9#..LHD..(DSL,EFI,TD)199604-199910

W(AIR CONDITIONER)

main55910-60160iRZJ90,VZJ9#..CO,GCC199608-200209

main55910-60170iLJ9#,RZJ95..RHD..(CBR,DSL)199604-199906

main55910-60180iLJ9#,RZJ9#..LHD..(CBR,DSL)..GEN199604-199906

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-60010iVZJ95..GX;KZJ95,LJ9#,RZJ95..RHD199604-200412

W(AIR CONDITIONER)

main81942-60020iRZJ90,VZJ9#..CO,GCC199608-200209

main81942-60020iRZJ90,VZJ95..CO199604-199910

W(AIR CONDITIONER)

main81942-60030iLJ9#,RZJ95..RHD..(CBR,DSL)199604-199906

main81942-60040iLJ9#,RZJ9#..LHD..(CBR,DSL)..GEN199604-199906

9046400560

main90464-00560

9046709043

main90467-09043

9048013024

main90480-13024

9356855016

main93568-55016

12 parts on this diagram · 6 diagrams in section
