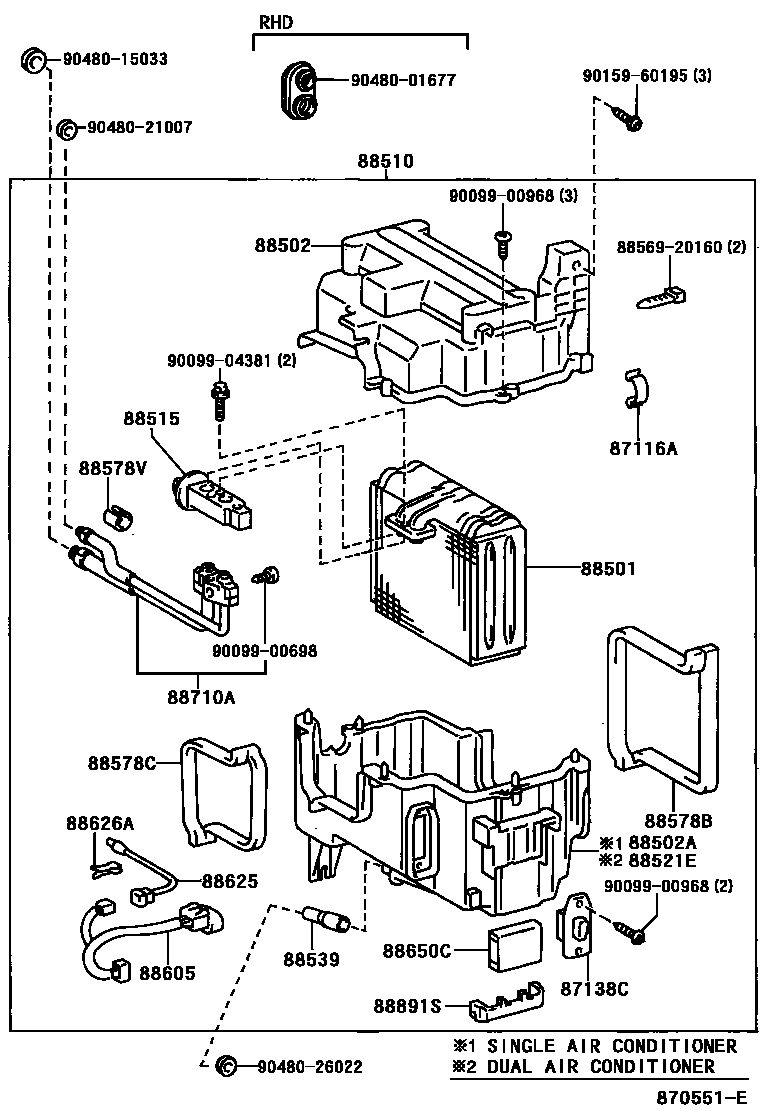

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT--MANUAL 0002 1FRONT--AUTO 0003 1REAR--MANUAL 0004 1REAR--AUTO 0005 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

87138CRESISTOR, BLOWER

main87138-35050iKZJ95..ATM..ARL199604-200209

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35040iKZJ95,LJ9#,RZJ95,VZJ95..RHD199604-200209

main88501-35050iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

88502CASE SUB-ASSY, COOLING UNIT

main88502-35010iKZJ95,LJ9#,RZJ95,VZJ95..RHD199604-200209

main88502-35030iLJ95,VZJ95..LHD..(GX,VX);KZJ95,RZJ9#..LHD..(CBR,TD)199604-199804

sub88502-35140

main88502-35140iLJ95..LHD..STD;KZJ90,LJ90,RZJ90,VZJ90..LHD..(DSL,EFI,TD)199802-199804

W(SINGLE AIR CONDITIONER)

main88502-35140iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199804-200312

88502ACASE SUB-ASSY, COOLING UNIT

main88502-35020iRZJ95,VZJ95..ARL199604-200209

main88502-35021iVZJ95..VX..ARL;LJ9#,RZJ95..RHD..GEN199804-200209

main88502-35040iKZJ9#,LJ9#,RZJ90,VZJ9#..LHD..(DSL,EFI,TD)199604-199802

sub88502-35150

main88502-35150iRZJ90..GX;KZJ9#,LJ9#,VZJ9#..LHD199802-200312

main88521-60060iRZJ9#..LHD..CBR199604-199807

88510UNIT ASSY, COOLER

main88510-35530iRZJ95..EFI..GEN199604-199801

sub88510-35531

main88510-35561iRZJ90,VZJ9#..LHD..EFI199802-199807

main88510-35570iKZJ9#,LJ9#..LHD199604-199802

sub88510-35571

main88510-35571iKZJ9#,LJ9#..LHD199802-199807

main88510-35580iRZJ90,VZJ9#..LHD..EFI199604-199802

main88510-35720iKZJ9#,LJ9#..LHD199807-200209

main88510-35730iKZJ95,RZJ9#..LHD..(EFI,TDEFI)..(GCC,GEN)199807-200312

main88510-35750iRZJ90,VZJ95..CO199910

main88510-60860iLJ9#..RHD199604-199807

main88510-60870iRZJ95..RHD..CBR199604-199807

main88510-60890iRZJ9#..LHD..CBR199604-199807

main88510-6A020iLJ95,RZJ95,VZJ95..RHD..(GX,VX)..(DSL,EFI)199604-199805

DUAL MANUAL AIR CONDITIONER

main88510-6A021iLJ95,RZJ95,VZJ95..RHD..(GX,VX)..(DSL,EFI)199805-199807

DUAL MANUAL AIR CONDITIONER

main88510-6A030iKZJ95,LJ95,VZJ95..LHD..(GX,VX)199604-199805

DUAL MANUAL AIR CONDITIONER

main88510-6A031iKZJ95,LJ95,VZJ95..LHD..(GX,VX)199805-199807

DUAL MANUAL AIR CONDITIONER

main88510-6A040iRZJ95..LHD..GX199604-199805

DUAL MANUAL AIR CONDITIONER

main88510-6A041iRZJ95..LHD..GX199805-199807

DUAL MANUAL AIR CONDITIONER

main88510-6A050iRZJ95..RHD..GX..CBR199604-199805

DUAL MANUAL AIR CONDITIONER

main88510-6A051iRZJ95..RHD..GX..CBR199805-199807

DUAL MANUAL AIR CONDITIONER

main88510-6A070iKZJ95,VZJ95..GX..ARL199604-200209

main88510-6A120iRZJ95..RHD..GEN199906-200209

main88510-6A130iRZJ95..RHD..CBR199807-199906

main88510-6A150iLJ9#..RHD199807-200209

main88510-6A160iVZJ95..VX..ARL199906-200112

sub88510-6A161

main88510-6A161iVZJ95..VX..ARL200112-200209

main88510-6A170iRZJ9#..LHD..CBR199807-199906

main88510-6A190iVZJ95..VX..ARL199906-200209

DUAL AUTOMATIC AIR CONDITIONER

main88510-6A200iRZJ95..RHD..GX..CBR199807-199906

DUAL MANUAL AIR CONDITIONER

main88510-6A210iKZJ95..ATM..ARL199807-200209

DUAL MANUAL AIR CONDITIONER

main88510-6A210iKZJ95,RZJ95..MA199910-200209

main88510-6A220iRZJ95..LHD..GX199807-199906

DUAL MANUAL AIR CONDITIONER

main88510-6A230iKZJ95,LJ95,VZJ95..LHD..(GX,VX)..(GCC,GEN)199807-200312

DUAL MANUAL AIR CONDITIONER

main88510-6A260iVZJ9#..GCC199906-200209

main88510-6A270iVZJ95..GCC199906-200310

DUAL AUTOMATIC AIR CONDITIONER

88515VALVE, COOLER EXPANSION

main88515-20100iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

sub88515-22240

88521CASE, COOLER UNIT

main88521-60030iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN)199604-200312

NO.1

main88521-60040iKZJ95..ATM..ARL199604-200312

NO.2

main88521-60070iRZJ95..ARL199604-200312

NO.3

88521ECASE SUB-ASSY, COOLING UNIT

main88521-60050iKZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX)199906-200209

main88521-60060iKZJ95,LJ95,RZJ95..LHD..GX199906-200312

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-35010iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main88539-89113iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

88578BPACKING, COOLING UNIT, NO.1

main88578-35040iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main88578-35060iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN)199604-200312

88578CPACKING, COOLING UNIT, NO.2

main88578-35050iLJ95..LHD..GX;LJ9#,VZJ95..RHD;KZJ95,RZJ9#,VZJ90199604-200312

88578VPACKING, COOLING UNIT, NO.3

main88578-35070iRZJ95..ARL;RZJ90,VZJ9#..EFI199604-200209

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35220iRZJ95..ARL;RZJ90,VZJ9#..EFI199604-200209

main88605-35240iKZJ9#,LJ9#..DSL,TD199604-200209

main88605-35290iVZJ9#..VX..(ARL,GCC)199906-200209

main88605-60850iRZJ9#..CBR199604-199906

main88605-60860iRZJ95..GX..CBR199604-199805

DUAL MANUAL AIR CONDITIONER

main88605-60861iRZJ95..GX..CBR199805-199906

DUAL MANUAL AIR CONDITIONER

main88605-60870iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)199604-199805

DUAL MANUAL AIR CONDITIONER

main88605-60871iRZJ95..ARL199805-200312

DUAL MANUAL AIR CONDITIONER

88625THERMISTOR, COOLER, NO.1

main88625-3A090iRZJ9#,VZJ95..LHD199604-200209

88626AHOLDER, THERMISTOR

main88626-28010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-35050iKZJ9#,LJ9#..DSL,TD199604-200209

main88650-35060iRZJ9#,VZJ9#..EFI199604-200209

main88650-60270iRZJ95..ARL199604-200312

DUAL MANUAL AIR CONDITIONER

main88650-60280iRZJ95..GX..CBR199604-199906

DUAL MANUAL AIR CONDITIONER

main88650-60290iRZJ9#..CBR199604-199906

88710ATUBE ASSY, AIR CONDITIONER

main88710-35280iRZJ95..ARL199807-200209

DEALER OPTION

main88710-35280iLJ9#,RZJ95,VZJ95..RHD199604-199807

main88710-35290iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199604-199807

main88710-35370iKZJ95..ATM..ARL199807-200209

MAKER OPTION

main88710-35370iKZJ95,RZJ95..MA199910-200209

main88710-35380iVZJ9#..GCC199906-200209

main88710-35380iKZJ9#,LJ9#,RZJ9#..LHD..(GCC,GEN)199807-200312

MAKER OPTION

main88710-6A310iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)199807-200312

MAKER OPTION,DUAL AIR CONDITIONER

88891SCOVER, COOLER, NO.1

main88891-35010iRZJ95..RHD..STD199604-200209

main88891-60010iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN)199604-200312

DUAL MANUAL AIR CONDITIONER

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

9009900698

main90099-00698

9009900968

main90099-00968

9009904381

main90099-04381

9015960195

main90159-60195

9048001677

main90480-01677

9048015033

main90480-15033

9048021007

main90480-21007

9048026022

main90480-26022

28 parts on this diagram · 5 diagrams in section
