HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT BLOWER(MANUAL A/C) 0002 1FRONT BLOWER(AUTO A/C) 0003 1FRONT BLOWER(AUTO A/C) 0004 1FRONT RADIATOR(MANUAL A/C) 0005 1FRONT RADIATOR(MANUAL A/C) 0006 1FRONT RADIATOR(AUTO A/C) 0007 1FRONT RADIATOR(AUTO A/C) 0008 1FRONT VENTILATOR 0009 1REAR

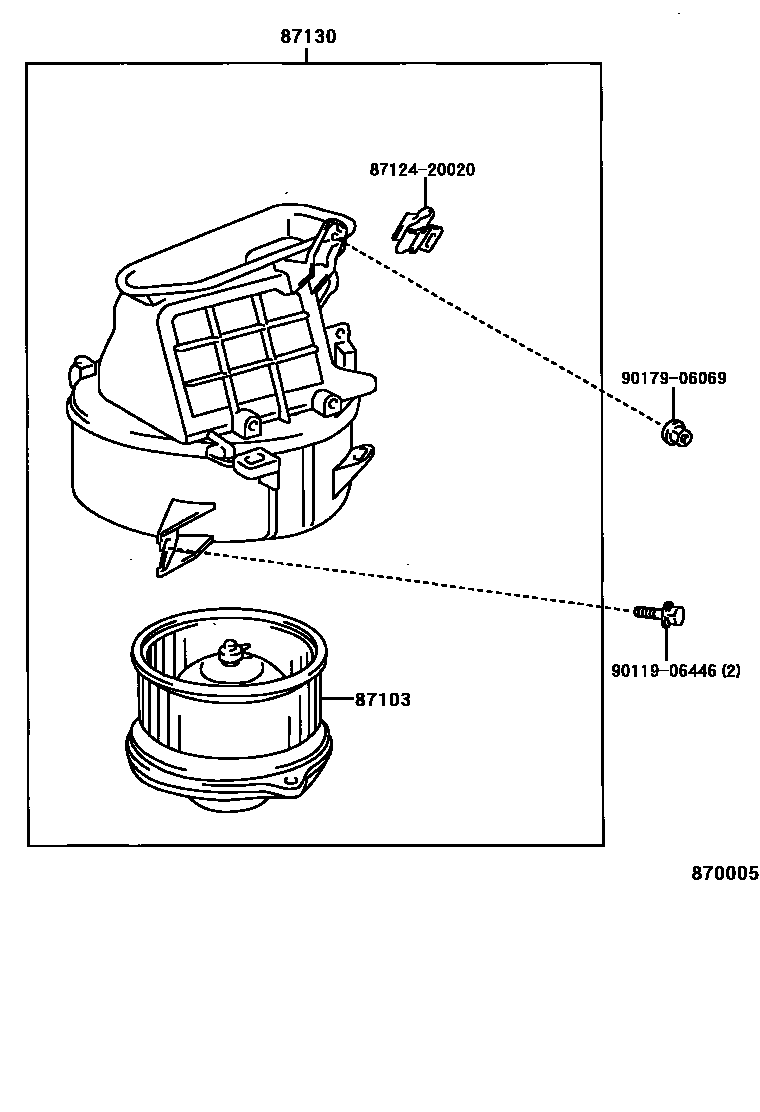

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-35010iLJ9#,RZJ95,VZJ95..RHD199604-199807

main87103-35020iRZJ95,VZJ9#..GCC199604-199611

sub87103-35021

main87103-35021iRZJ95,VZJ9#..GCC199611-199807

sub87103-35022

main87103-35022iRZJ95,VZJ9#..GCC199808-200312

main87103-35030iVZJ95..VX..ARL199808-200412

main87103-60170iKZJ9#,LJ9#,RZJ9#..LHD..GEN199604-199702

sub87103-60171

main87103-60171iKZJ9#,LJ9#,RZJ9#..LHD..GEN199702-199807

sub87103-60172

main87103-60172iRZJ90..GX;RZJ9#..LHD..CBR..GEN;KZJ9#,LJ9#,VZJ95..LHD..(CO,GEN)199808-199910

87130BLOWER ASSY, HEATER, FRONT

main87130-35050iVZJ95..GX;KZJ95,LJ9#,RZJ95..RHD199604-200412

main87130-35070iRZJ95,VZJ9#..GCC199604-199802

sub87130-35110

main87130-35110iRZJ95,VZJ9#..GCC199802-200312

main87130-35130iVZJ95..VX..ARL199906-200209

W(DUAL AUTOMATIC AIR CONDITIONER)

main87130-60310iRZJ90..GX;RZJ9#..LHD..CBR..GEN;KZJ9#,LJ9#,VZJ95..LHD..(CO,GEN)199604-199910

main87130-60410iVZJ9#..GCC199906-200310

8712420020CLAMP, HEATER

main87124-20020

9011906446

main90119-06446

9017906069

main90179-06069

5 parts on this diagram · 9 diagrams in section
