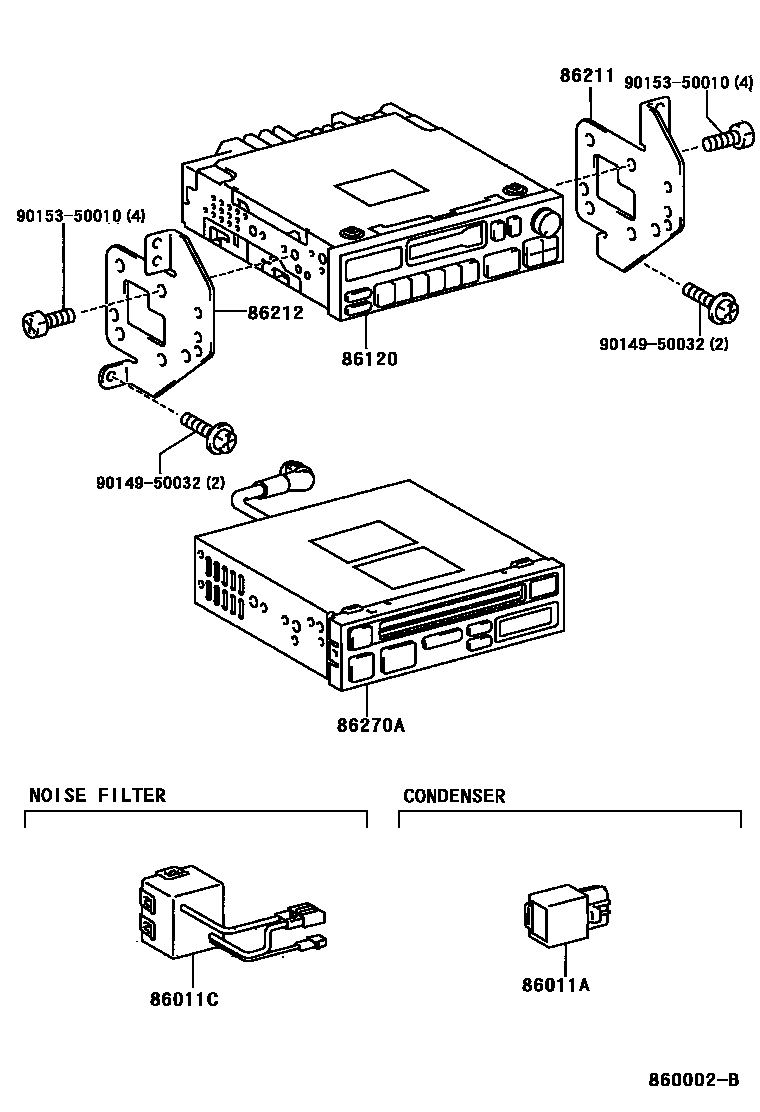

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1KNOB,RADIO RECEIVER 0003 1KNOB,RADIO RECEIVER

86011ACONDENSER, RADIO SETTING

main90980-04083iRZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

86011CFILTER, NOISE

main90980-05243iVZJ9#..GCC199608-199906

86120RECEIVER ASSY, RADIO

main86120-16660iKZJ9#,LJ9#,RZJ9#..GCC,GEN199801-200209

FUJITSU TEN,ID=17409,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER

main86120-16670iKZJ9#,LJ9#,RZJ9#..GCC,GEN199801-200209

FUJITSU TEN,ID=17410,AM/FM MULTIPLEX ETR CASSETTE (AM=10KHZ STEP) 2 SPEAKER

main86120-16680iRZJ95..LHD;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90..GEN199801-200312

MATSUSHITA, ID=57206,AM/FM/SW1/SW2 CASSETTE

main86120-17280iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199801

MATSUSHITA,ID=57201,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER

main86120-17310iRZJ95..GX..GEN;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(GCC,GEN)199604-199801

MATSUSHITA,ID=57404,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER

main86120-2A180iVZJ9#..GCC199608-199801

MATSUSHITA,ID=57403,AM/FM/SW MULTIPLEX CASSETTE (AM=9KHZ STEP)

main86120-2B360iKZJ9#,LJ95,RZJ9#..GX..GEN199604-199801

MATSUSHITA,ID=57400,AM/FM MULTIPLEX ETR CASSETTE (AM=5KHZ STEP) 4 SPEAKER

main86120-2B610iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN)199812-200209

FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE 4 SPEAKER

main86120-2B620iKZJ9#,LJ95,RZJ9#..GX..GEN199812-200209

MATSUSHITA,ID=57410,AM/FM ETR CASSETTE 4 SPEAKER

main86120-35050iKZJ9#,LJ9#,RZJ9#..GEN199604-199801

MATSUSHITA,ID=57100,AM ETR CASSETTE 2 SPEAKER

main86120-35080iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-200209

MATSUSHITA,ID=52100,AM ETR (AM=9KHZ STEP)

sub86120-60N00

main86120-35090iKZJ9#,LJ9#,RZJ9#..GEN199604-199801

MATSUSHITA,ID=57400,AM/FM MULTIPLEX ETR CASSETTE (AM=5KHZ STEP) 2 SPEAKER

main86120-35100iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199801

MATSUSHITA,ID=57401,AM/FM/SW MULTIPLEX CASSETTE (AM=9KHZ STEP)

main86120-35190iKZJ9#,LJ9#,RZJ9#..GEN199812-200412

MATSUSHITA, ID=57101,AM ETR CASSETTE (AM=9KHZ STEP)

main86120-60360iRZJ95..MTM..GCC199801-200310

MATSUSHITA, ID=57409,AM/FM/SW MULTIPLEX CASSETTE (AM=9KHZ STEP)

86211BRACKET, RADIO, NO.1

main86211-60061iRZJ90,VZJ95..CO199604-199910

sub86211-60100

main86211-60100iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200312

86212BRACKET, RADIO, NO.2

main86212-60061iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199910

sub86212-60100

main86212-60100iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199906-200312

86270ADISC PLAYER ASSY

main86270-60050iRZJ95..LHD;RZJ95..RHD..GX..GEN;KZJ9#,LJ9#,RZJ90,VZJ9#..GCC,GEN199812-200312

main86270-89101iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199801

9014950032

main90149-50032

9015350010

main90153-50010

8 parts on this diagram · 3 diagrams in section
