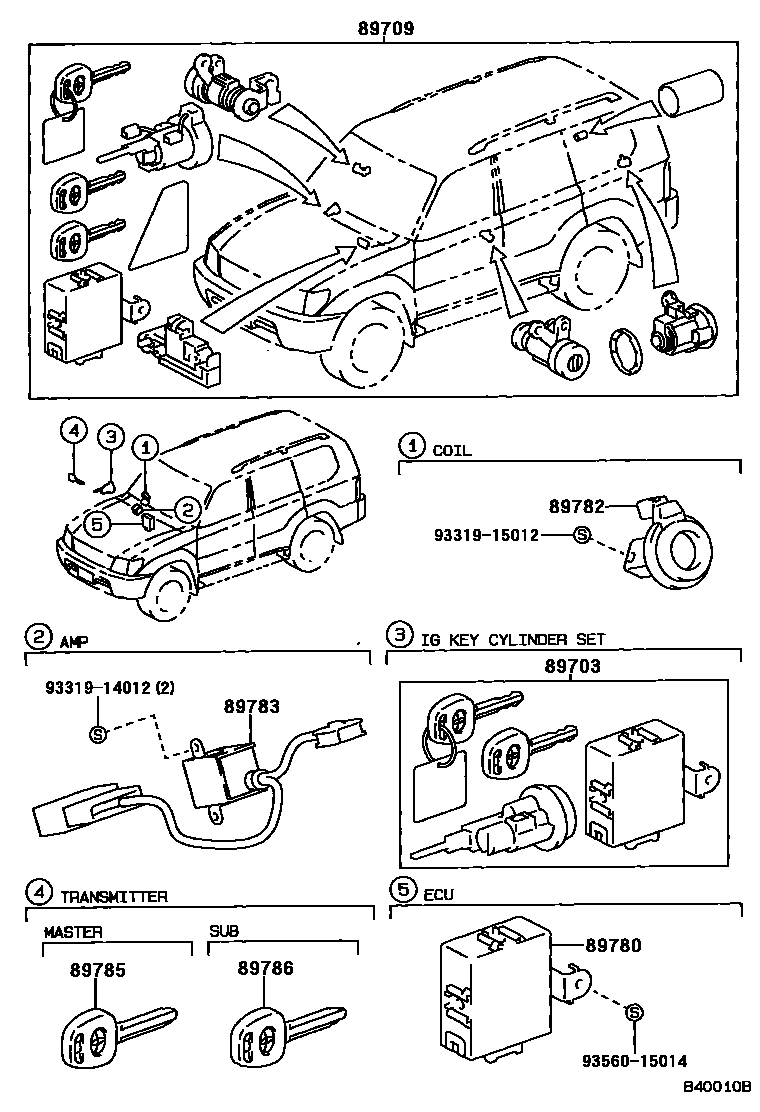

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1W/O(WIRELESS DOOR LOCK) 0004 1W(WIRELESS DOOR LOCK)

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-60030iRZJ95..ARL199604-200209

main89703-60110iKZJ95,VZJ95..ARL199906

main89703-60350iVZJ95..ARL199801-199906

89709COMPUTER SET, TRANSPONDER KEY

main89709-60040iRZJ95,VZJ95..ARL199604-199706

main89709-60041iRZJ95,VZJ95..ARL199706-200209

main89709-60400iVZJ95..ARL199801-199906

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-60030iRZJ95..ARL199604-200209

main89780-60080iVZJ95..ARL199801-199906

main89780-60160iRZJ95..GCC200008-200312

main89780-60170iKZJ95..ARL199909-200106

sub89780-60171

main89780-60171iKZJ95..ARL200106-200209

89782COIL, TRANSPONDER KEY

main89782-60022iRZJ95..ARL199604-200209

89783AMPLIFIER, TRANSPONDER KEY

main89783-60020iRZJ95,VZJ95..ARL199604-200312

main89783-60070iVZJ95..ARL199906

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iRZJ95,VZJ95..ARL199604-200209

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iRZJ95,VZJ95..ARL199604-200209

9331914012

main93319-14012

9331915012

main93319-15012

9356015014

main93560-15014

10 parts on this diagram · 4 diagrams in section
