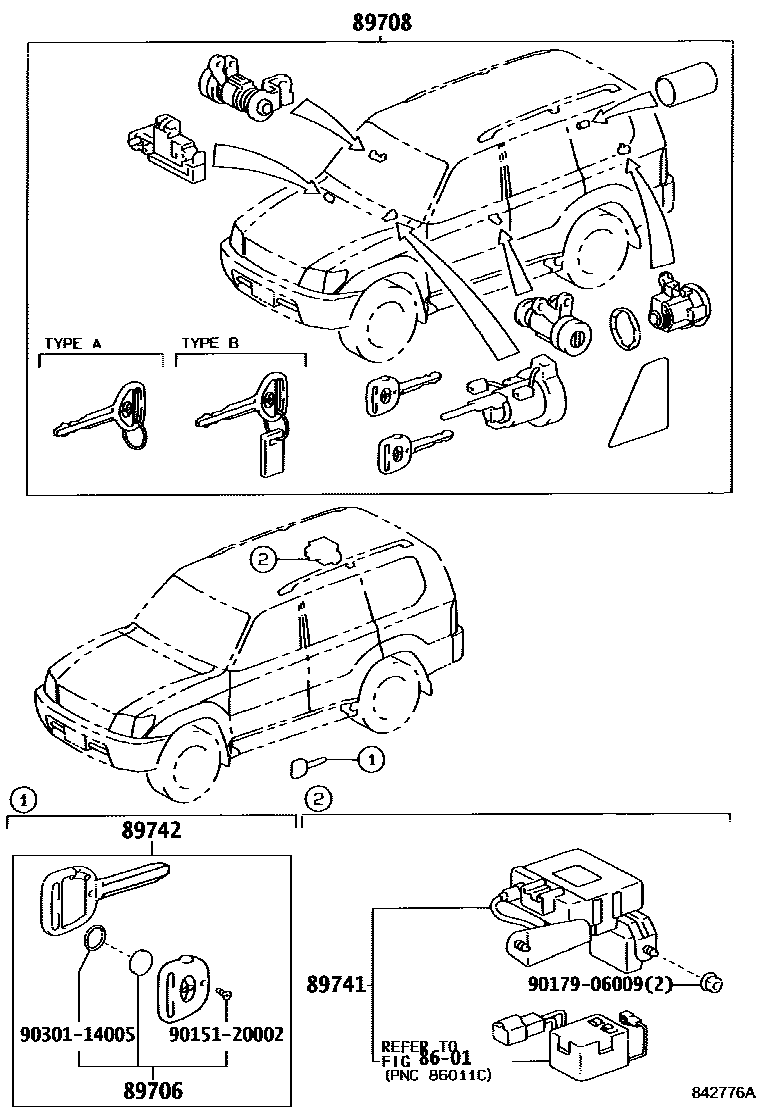

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1W(ENGINE IMMOBILIZER)

8601

89706BATTERY SET, TRANSMITTER

main89706-50010iVZJ9#..GCC199608-199906

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-60030iVZJ9#..GCC199608-199706

TYPE A:REFER TO ILLUSTRATION

main89708-60031iVZJ9#..GCC199706-199801

TYPE A:REFER TO ILLUSTRATION

main89708-60032iVZJ9#..GCC199801-199906

TYPE B:REFER TO ILLUSTRATION

main89708-60040iVZJ9#..GCC199608-199706

TYPE A:REFER TO ILLUSTRATION & W(SPARE WHEEL CARRIER W/KEY LOCK)

main89708-60041iVZJ9#..GCC199706-199801

TYPE A:REFER TO ILLUSTRATION & W(SPARE WHEEL CARRIER W/KEY LOCK)

main89708-60042iVZJ9#..GCC199801-199906

TYPE B:REFER TO ILLUSTRATION & W(SPARE WHEEL CARRIER W/KEY LOCK)

89741RECEIVER, DOOR CONTROL

main89741-60020iVZJ90199608-199906

main89741-60040iVZJ95..GCC199608-199906

main89741-60270iVZJ95..GCC199906-200310

main89741-60280iVZJ90199906-200209

89742TRANSMITTER, DOOR CONTROL

main89742-60030iVZJ9#..GCC199608-199906

9015120002

main90151-20002

9017906009

main90179-06009

9030114005

main90301-14005

8 parts on this diagram · 4 diagrams in section
