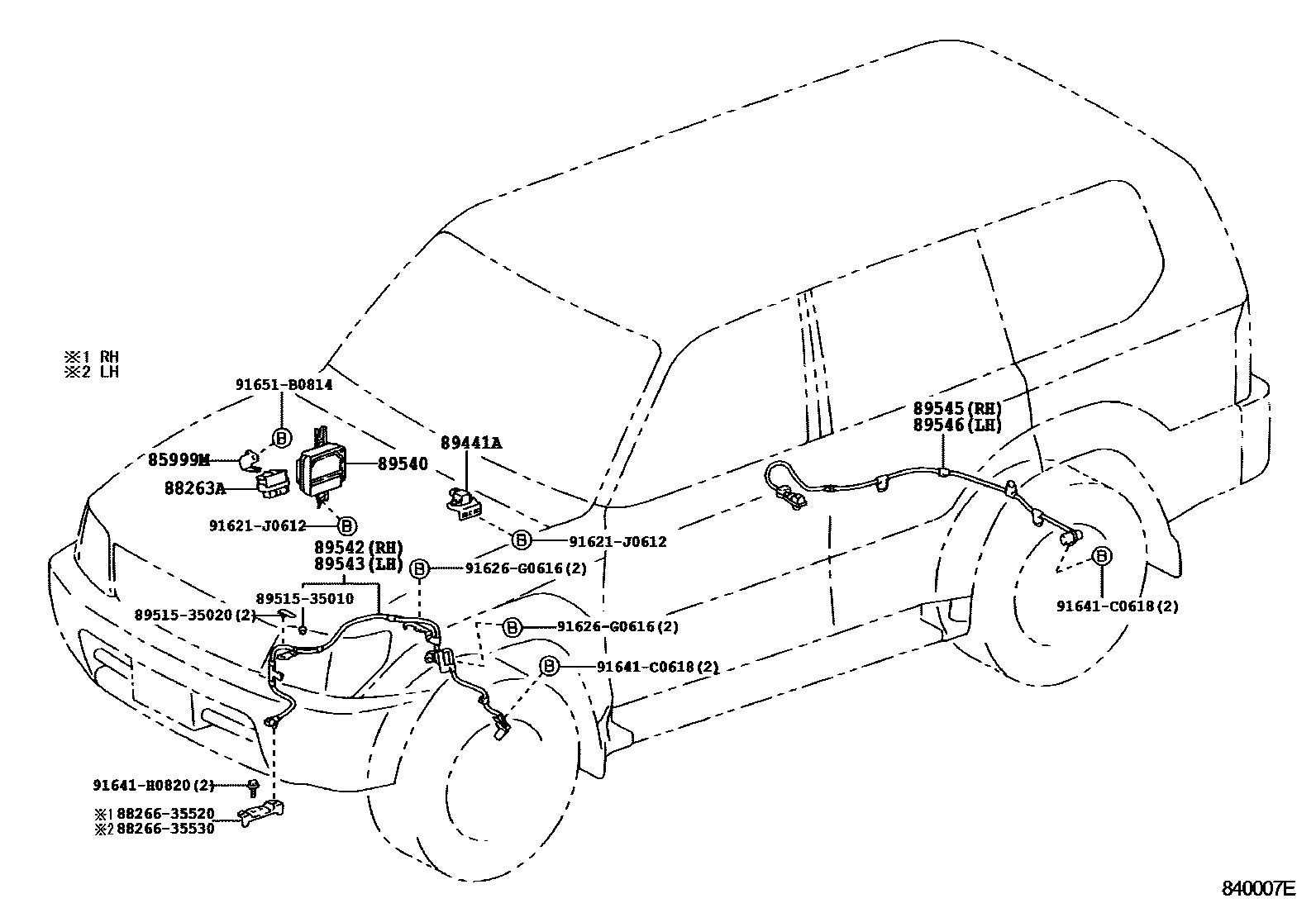

ABS & VSC

0001 1 0002 1W(ACTIVE TRC)

85999MBRACKET, RELAY

main85999-35070iRZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)199604-200209

main85999-35080iRZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR199604-199910

88263ARELAY, SKID CONTROL

main88263-24020iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC)

main88263-35090iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

89441ASENSOR, DECELERATION

main89440-35030iRZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX199604-199906

main89440-60100iRZJ95..ARL199910-200209

main89440-60110iVZJ95..ATM..ARL199906-200209

W(ACTIVE TRC)

89540COMPUTER ASSY, SKID CONTROL

main89540-60050iKZJ9#,RZJ9#,VZJ9#..GX,VX199604-199806

main89540-60051iRZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX199806-199906

main89540-60060iKZJ9#,RZJ95..GX..(CBR,TD)..GEN199604-199807

W(DIFFERENTIAL LOCK)

main89540-60061iKZJ9#,RZJ95..GX..(CBR,TD)..GEN199807-199906

W(DIFFERENTIAL LOCK)

main89540-60090iRZJ95..ARL199910-200209

main89540-60100iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199906

W(DIFFERENTIAL LOCK)

main89540-60110iVZJ95..ATM..ARL199906-200209

W(ACTIVE TRC)

main89540-60120iVZJ95..ATM..ARL199906-200209

WIDE PACKAGE & W(VSC & ACTIVE TRC)

main89540-60130iKZJ95..ATM..ARL199909-200209

W(VSC & ACTIVE TRC)

89542SENSOR, SPEED, FRONT RH

main89542-35050iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

89543SENSOR, SPEED, FRONT LH

main89543-35050iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

89545SENSOR, SPEED, REAR RH

main89545-35030iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

89546SENSOR, SPEED, REAR LH

main89546-35030iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

8826635520CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-35520

8826635530CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-35530

8951535010CLIP

main89515-35010

8951535020CLIP

main89515-35020

91621J0612

main91621-J0612

91626G0616

main91626-G0616

91641C0618

main91641-C0618

91641H0820

main91641-H0820

91651B0814

main91651-B0814

17 parts on this diagram · 2 diagrams in section
