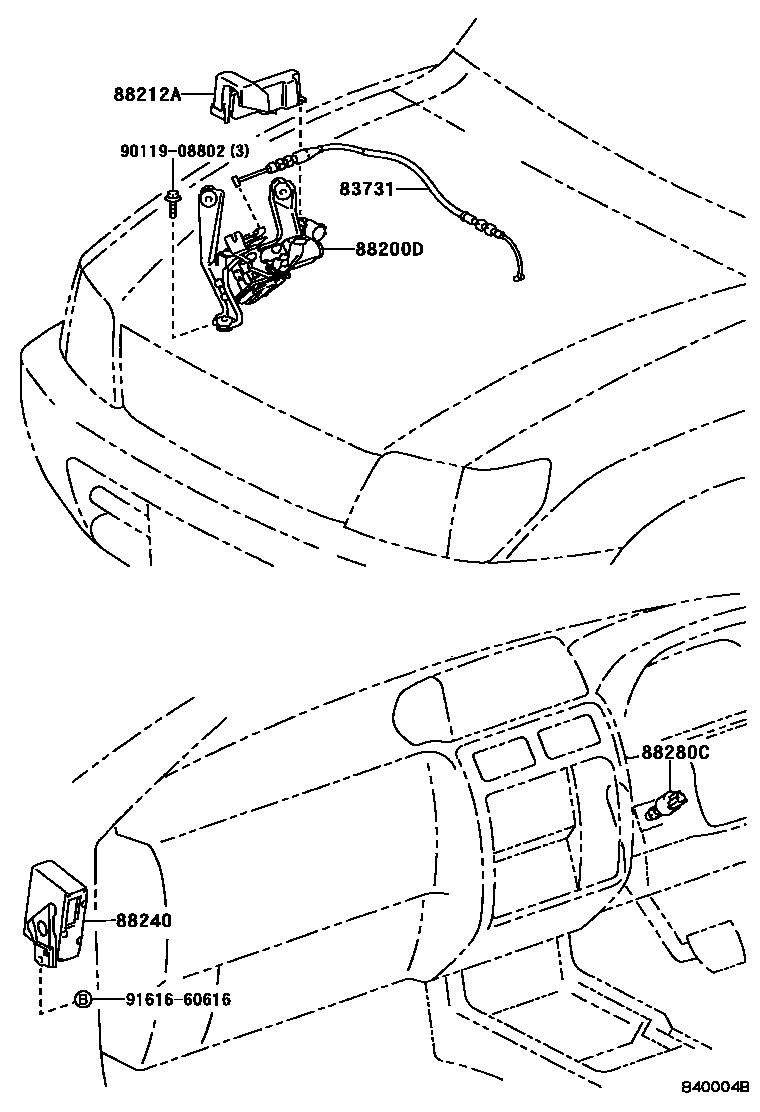

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

83731CABLE, CRUISE CONTROL

main83731-35190iVZJ95..ATM..ARL199604-199906

main83731-35230iVZJ95..ATM..GCC199608-200310

main83731-60030iVZJ95..MTM..ARL199604-199906

main83731-60040iVZJ9#..MTM..GCC199608-200209

main83731-60060iVZJ95..ATM..ARL199906-200209

main83731-60070iVZJ95..MTM..ARL199906-200209

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-35270iVZJ95..ARL199604-199906

main88200-35280iVZJ9#..GCC199608-200310

main88200-60040iVZJ95..ARL199906-200209

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-14120iVZJ95..ARL199906-200209

main88212-35100iVZJ95..ARL199604-199906

main88212-35110iVZJ9#..GCC199608-200310

88240COMPUTER ASSY, CRUISE CONTROL

main88240-60120iVZJ9#..GCC199608-199801

main88240-60140iVZJ95..ARL199604-199906

main88240-60240iVZJ9#..GCC199801-199906

main88240-60250iVZJ9#..ARL,GCC199906-200310

88280CSWITCH ASSY, CLUTCH

main88280-14030iVZJ9#..MTM..(ARL,GCC)199604-200209

9011908802

main90119-08802

9161660616

main91616-60616

7 parts on this diagram · 3 diagrams in section
