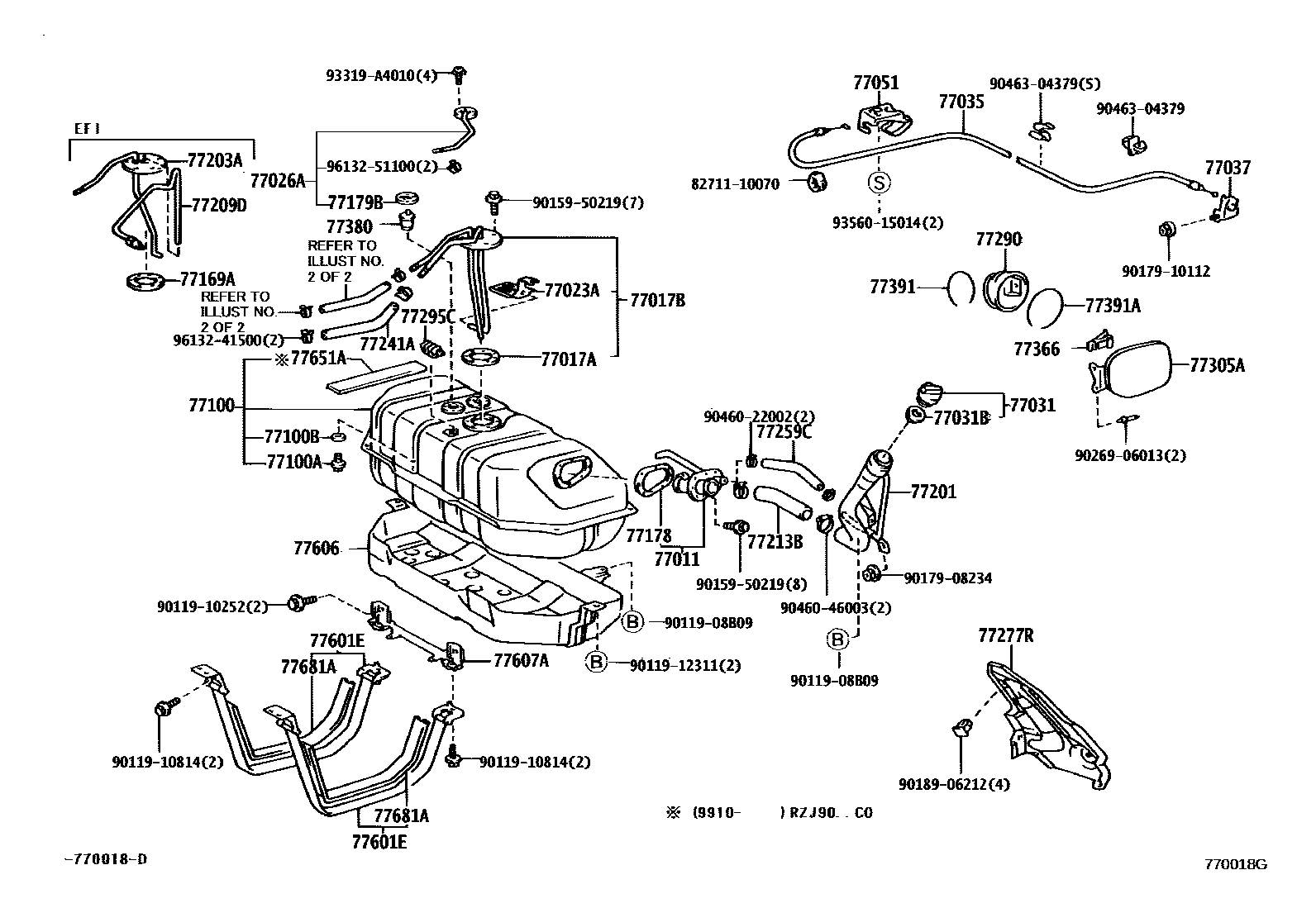

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
FUEL TANK=90L+70L
main77011-60050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312
77017AGASKET, FUEL TANK VENT
77023AFILTER SUB-ASSY, FUEL SUCTION TUBE(FOR SUB-TANK)
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77031BGASKET (FOR FUEL TANK CAP)
main77316-16010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
main77037-12050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
77051LEVER SUB-ASSY, FUEL LID OPEN
77100TANK ASSY, FUEL
main77001-60370iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200211
sub77001-60710
sub77295-60270
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-60470
sub77201-60480
W(INTERFERENCE VALVE),TYPE A:REFER TO ILLUSTRATION
W(INTERFERENCE VALVE),TYPE A:REFER TO ILLUSTRATION;SAUDI ARABIA SPEC
COLOMBIA SPEC & LEADED GASOLINE SPEC;W/O(INTERFERENCE VALVE),TYPE A:REFER TO ILLISTRATION
main77201-60480iRZJ95..GEN;RZJ95..ATM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..MTM..(STD,VX)..(GCC,GEN)199906-200412
W/O(INTERFERENCE VALVE),TYPE A:REFER TO ILLISTRATION
FUEL TANK=90L+70L
FUEL TANK=90L+70L;TYPE B
FUEL TANK=90L+70L
77203ATUBE SUB-ASSY, FUEL SUCTION
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
L=368,FUEL TANK=90L+70L
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=200(*H,L=190)
77259CHOSE, FUEL
main77259-60190iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312
FUEL TANK=90L+70L
77277RPROTECTOR, FUEL TANK FILLER PIPE
main77277-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
FUEL TANK=90L+70L
main77295-35140iRZJ90,VZJ90;RZJ95..ATM..GCC;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN)199906
77305ALID SUB-ASSY, FUEL FILLER OPENING
main77350-60020iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)199604-200209
77366SPRING, FUEL FILLER OPENING LID HINGE
main77360-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
main77391-14020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
77391ARING, FUEL INLET BOX
77601EBAND SUB-ASSY, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607ABUCKLE SUB-ASSY, FUEL TANK BAND
77651ACUSHION, FUEL TANK, NO.1
77681ASEAT, FUEL TANK BAND
main77681-32060iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
9011908B09
main90119-08B09
9011910252
main90119-10252
9011910814
main90119-10814
9011912311
main90119-12311
9015950219
main90159-50219
9017908234
main90179-08234
9017910112
main90179-10112
9018906212
main90189-06212
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046304379
main90463-04379
93319A4010
main93319-A4010
9356015014
main93560-15014
9613241500
main96132-41500
9613251100
main96132-51100
52 parts on this diagram · 14 diagrams in section
