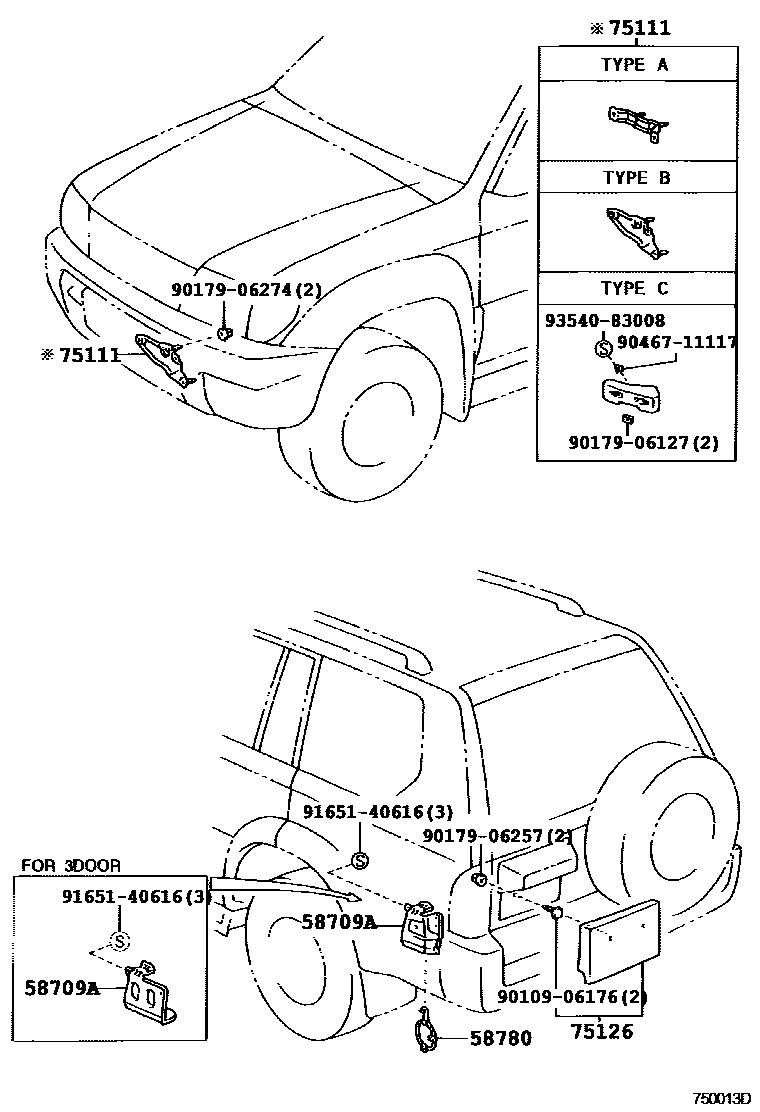

TOOL BOX & LICENSE PLATE BRACKET

58709ACARRIER SUB-ASSY, JACK

main58709-60020iKZJ95,LJ95,RZJ95,VZJ95¥5,900199604-199708

sub58709-60021¥5,900

main58709-60021iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥5,900199708-200209

main58709-60030iKZJ90,LJ90,RZJ90,VZJ90¥6,800199604-199708

sub58709-60031¥6,800

main58709-60031iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90¥6,800199708-199910

58780BAND ASSY, TOOL BOX

main58780-44010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥650199807-200209

main58780-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#¥720199604-199807

sub58780-44010¥650

75111BRACKET, FRONT LICENSE PLATE

main75111-60120iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN¥2,100199604-200209

TYPE A:REFER TO ILLUSTRATION

main75111-60130iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN¥1,620199604-199906

TYPE B:REFER TO ILLUSTRATION

main75111-60180iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN¥10,300199906-200209

TYPE C:REFER TO ILLUSTRATION

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main75126-60060iRZJ95..GCC;VZJ95..ATM..GCC;LJ9#,RZJ90..LHD..(CBR,DSL)¥6,500199604-200312

main75126-60070iLJ95..RHD..GX;RZJ95,VZJ95..ARL¥6,500199604-200209

9010906176

main90109-06176¥160

9017906127

main90179-06127¥90

9017906257

main90179-06257¥120

9017906274

main90179-06274¥70

9046711117

main90467-11117¥90

9165140616

main91651-40616¥60

9354083008

main93540-83008¥70

11 parts on this diagram · 1 diagram in section
