EPC Data

SEAT BELT

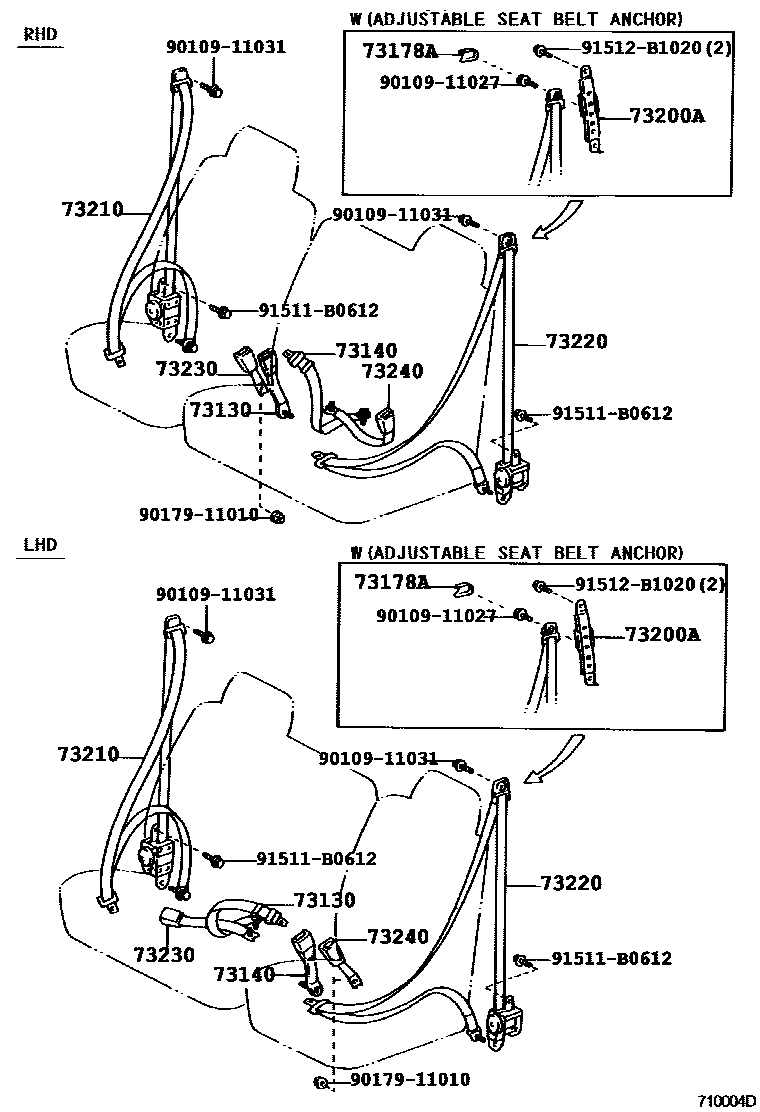

Parts diagram
73130BELT ASSY, FRONT SEAT LAP TYPE, RH
main73130-60030-B0i199604-199906
BLUISH GRAY,TRIM1#
main73140-60070-B0i200001-200011
CHINA SPEC,BLUISH GRAY,TRIM1#
main73140-60070-B0i199604-199906
BLUISH GRAY,TRIM1#
main73140-60070-E1i200001-200011
CHINA SPEC,OAK,TRIM4#
main73140-60090-B0i199604-200209
RUSSIA SPEC,BLUISH GRAY,TRIM1#
main73140-60090-B0i199906-200412
BLUISH GRAY,TRIM1#
main73140-60090-E0i199906-200209
OAK,TRIM4#
main73140-60090-E0i199906-200209
RUSSIA SPEC,OAK,TRIM4#
73140BELT ASSY, FRONT SEAT LAP TYPE, LH
main73130-60030-B0i199604-200412
BLUISH GRAY,TRIM1#
main73130-60030-E0i199906-200209
OAK,TRIM4#
main73140-60070-B0i199604-199906
BLUISH GRAY,TRIM1#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-12040-B3i199604-199906
MOON MIST,TRIM1#
sub73178-12040
main73178-12040-B8i199906
MD.MOON MIST,TRIM1#
sub73178-12040
main73178-12040-E1i199906-200312
MD.OAK,TRIM4#
sub73178-12040
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-34030i199803-199906
main73200-35010i199604-199803
sub73200-34030
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-60360-B0i199604-199710
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),BLUISH GRAY,TRIM1#
sub73210-60361
main73210-60360-B0i199608-199710
BLUISH GRAY,TRIM1#
sub73210-60361
main73210-60361-B0i199710-199801
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),BLUISH GRAY,TRIM1#
main73210-60370-B0i199604-199801
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60371-B0i199801-199804
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-60372
main73210-60372-B0i199804-199906
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60373-B1i199906-200209
BLUISH GRAY,TRIM1#
main73210-60373-E0i199906-200209
OAK,TRIM4#
main73210-60380-B0i199604-199801
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60381-B0i199801-199906
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),BLUISH GRAY,TRIM1#
main73210-60381-B0i199808-199910
BLUISH GRAY,TRIM1#
main73210-60382-B1i199906-200312
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60382-E0i199906-200312
W(ADJUSTABLE SEAT BELT ANCHOR),OAK,TRIM4#
main73210-60390-B0i199604-199801
RUSSIA SPEC,BLUISH GRAY,TRIM1#
main73210-60391-B0i199801-199910
BLUISH GRAY,TRIM1#
main73210-60391-B0i199812-199906
RUSSIA SPEC,BLUISH GRAY,TRIM1#
main73210-60392-B1i199906
BLUISH GRAY,TRIM1#
main73210-60392-E0i199906-200209
OAK,TRIM4#
main73210-60410-B0i199604-199801
BLUISH GRAY,TRIM1#
main73210-60460-B0i199801-199906
W(ADJUSTABLE SEAT BELT ANCHOR & *80 SENSOR),BLUISH GRAY,TRIM1#
main73210-60461-B1i199906-200108
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73210-60461-E0i199906-200108
W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#
main73210-60462-B1i200108-200209
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73210-60462-E0i200108-200209
W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#
main73210-60480-B0i199801-199906
CHINA SPEC,BLUISH GRAY,TRIM1#
main73210-60481-B1i199906-200312
CHINA SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73210-60481-E0i199906-200312
CHINA SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-60280-B0i199604-199801
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),BLUISH GRAY,TRIM1#
main73220-60290-B0i199604-199801
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60291-B0i199801-199804
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73220-60292
main73220-60291-B0i199801-199804
NEW ZEALAND SPEC & W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73220-60292
main73220-60292-B0i199804-199906
NEW ZEALAND SPEC & W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60292-B0i199804-199906
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60293-B1i199906-200209
BLUISH GRAY,TRIM1#
main73220-60293-E0i199906-200209
OAK,TRIM4#
main73220-60300-B0i199604-199801
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60301-B0i199801-199910
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60302-B1i199906-200209
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60302-E0i199906-200209
W(ADJUSTABLE SEAT BELT ANCHOR),OAK,TRIM4#
main73220-60310-B0i199604-199801
RUSSIA SPEC,BLUISH GRAY,TRIM1#
main73220-60311-B0i199812-199906
RUSSIA SPEC,BLUISH GRAY,TRIM1#
main73220-60311-B0i199801-199910
BLUISH GRAY,TRIM1#
main73220-60312-B1i199906
BLUISH GRAY,TRIM1#
main73220-60312-E0i199906-200209
OAK,TRIM4#
main73220-60330-B0i199604-199801
BLUISH GRAY,TRIM1#
main73220-60340-B0i199604-199710
BLUISH GRAY,TRIM1#
sub73220-60341
main73220-60341-B0i199710-199801
BLUISH GRAY,TRIM1#
main73220-60342-B0i199801-199906
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),BLUISH GRAY,TRIM1#
main73220-60343-B1i199906-200312
BLUISH GRAY,TRIM1#
main73220-60343-E0i199906-200312
OAK,TRIM4#
main73220-60370-B0i199801-199906
W(ADJUSTABLE SEAT BELT ANCHOR & *80 SENSOR),BLUISH GRAY,TRIM1#
main73220-60371-B1i199906-200108
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73220-60371-E0i199906-200108
W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#
main73220-60372-B1i200108-200209
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73220-60372-E0i200108-200209
W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#
main73220-60390-B0i199801-199906
CHINA SPEC,BLUISH GRAY,TRIM1#
main73220-60391-B1i199906-200312
CHINA SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73220-60391-E0i199906-200312
CHINA SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-16410-B1i199604-199906
MD.MOON MIST,TRIM1#
sub73230-16410
main73230-16410-E0i199906-200312
OAK,TRIM4#
sub73230-16410
main73230-60280-B0i199910-200209
MD.MOON MIST,TRIM1#
main73230-60280-B0i199801-200209
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),MD.MOON MIST,TRIM1#
main73230-60280-E0i199906-200209
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING),OAK,TRIM4#
main73230-60280-E0i199910-200209
OAK,TRIM4#
main73230-60290-B0i199604-200412
W(FRONT BENCH SEAT),BLUISH GRAY,TRIM1#
main73230-60290-E0i199906-200209
W(FRONT BENCH SEAT),OAK,TRIM4#
main73230-60320-B0i199906-200209
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING & FRONT BENCH SEAT),BLUISH GRAY,TRIM1#
main73230-60320-E0i199906-200209
W(ADJUSTABLE SEAT BELT ANCHOR & SEAT BELT WARNING & FRONT BENCH SEAT),OAK,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-16410-B1i199604-199906
MD.MOON MIST,TRIM1#
sub73230-16410
main73230-16410-E0i199906-200312
OAK,TRIM4#
sub73230-16410
main73230-60280-B0i199604-200209
W(SEAT BELT WARNING),MD.MOON MIST,TRIM1#
main73230-60280-E0i199906-200209
W(SEAT BELT WARNING),OAK,TRIM4#
main73230-60290-B0i199604-199906
W(FRONT BENCH SEAT),BLUISH GRAY,TRIM1#
9010911027
main90109-11027
9010911031
main90109-11031
9017911010
main90179-11010
91511B0612
main91511-B0612
91512B1020
main91512-B1020

13 parts on this diagram · 4 diagrams in section
