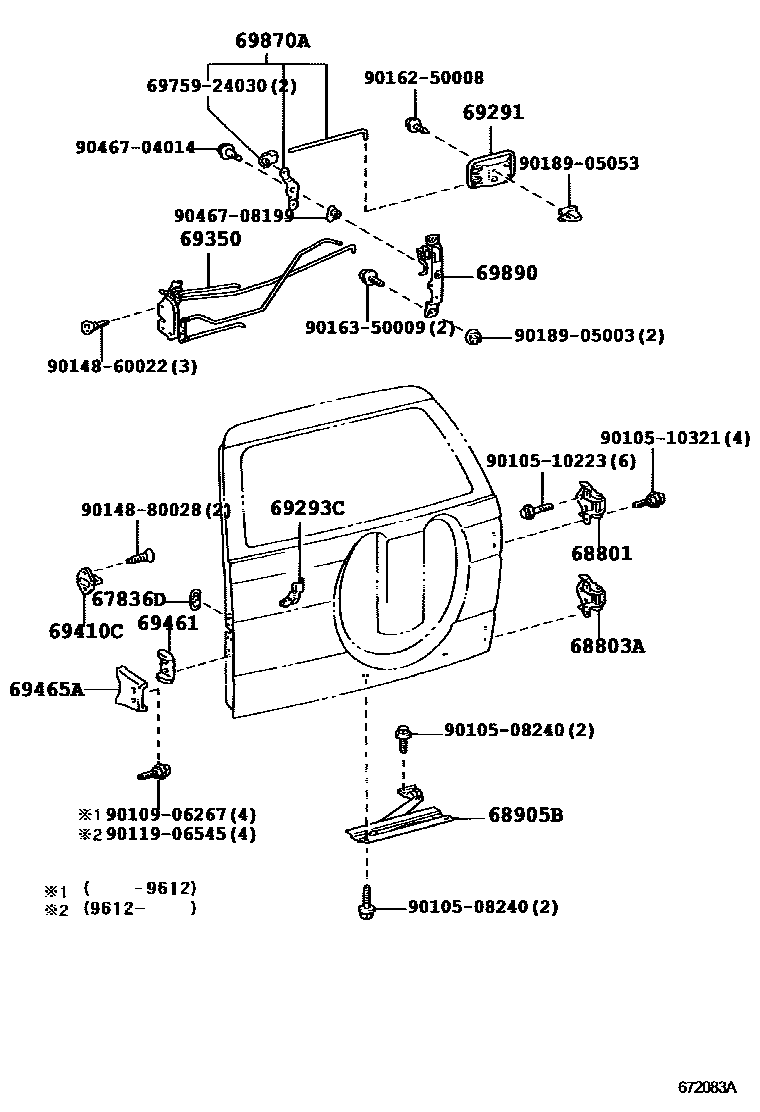

BACK DOOR LOCK & HINGE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040iKZJ95..GEN199604-200412

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH

main68801-60030iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

69291HANDLE ASSY, BACK DOOR INSIDE

main69205-16060-B0iRZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199604-199608

MD.MOON MIST,TRIM1#

sub69205-16060

sub69209-60030

main69209-60030-B0iRZJ95,VZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199608-200412

MD.MOON MIST,TRIM1#

sub69209-60030

main69209-60030-E0iKZJ95..GEN199906-200209

OAK,TRIM4#

sub69209-60030

69293CSNAP, BACK DOOR HANDLE

main69293-12030iRZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#199604-200209

69350LOCK ASSY, BACK DOOR

main69110-60090iRZJ95,VZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199604-199710

W(POWER DOOR LOCK & INSIDE HANDLE)

main69110-60091iRZJ95,VZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199710-199801

W(POWER DOOR LOCK & INSIDE HANDLE)

main69110-60100iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199710

W(POWER DOOR LOCK)

main69110-60101iKZJ9#,LJ9#,RZJ9#,VZJ9#199710-199801

W(POWER DOOR LOCK)

main69110-60130iRZJ95..RHD..STD199801-200209

W(POWER DOOR LOCK)

main69110-60130iKZJ95,RZJ95..MA199910-200209

main69110-60140iRZJ95..MTM..GCC;VZJ95..ATM..GCC199801-200412

W(POWER DOOR LOCK & INSIDE HANDLE)

main69350-60100iRZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199604-199710

W(INSIDE HANDLE)

main69350-60101iKZJ95,LJ9#,RZJ9#..CBR,DSL,TD199710-200412

W(INSIDE HANDLE)

main69350-60110iKZJ9#,LJ9#,RZJ9#..GCC,GEN199604-199710

main69350-60111iRZJ95..RHD..STD;RZJ95..MTM..GCC199710-200209

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-20070iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-42010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199612

sub69461-42011

sub90119-06545

main69461-42011iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199612-200606

sub69461-42012

main69461-42012iRZJ90,VZJ95200607

69465ASTOPPER, BACK DOOR SIDE FEMALE

main69465-42010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199612

sub69465-42011

sub90119-06545

main69465-42011iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199612-200209

69870ALINK ASSY, BACK DOOR CONTROL HANDLE, LH

main69870-60010iRZJ95,VZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199604-200412

69890LINK ASSY, BACK DOOR CONTROL HANDLE

main69890-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

6975924030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24030

9010508240

main90105-08240

9010510223

main90105-10223

9010510321

main90105-10321

9010906267

main90109-06267

9011906545

main90119-06545

9014860022

main90148-60022

9014880028

main90148-80028

9016250008

main90162-50008

9016350009

main90163-50009

9018905003

main90189-05003

9018905053

main90189-05053

9046704014

main90467-04014

9046708199

main90467-08199

26 parts on this diagram · 1 diagram in section
