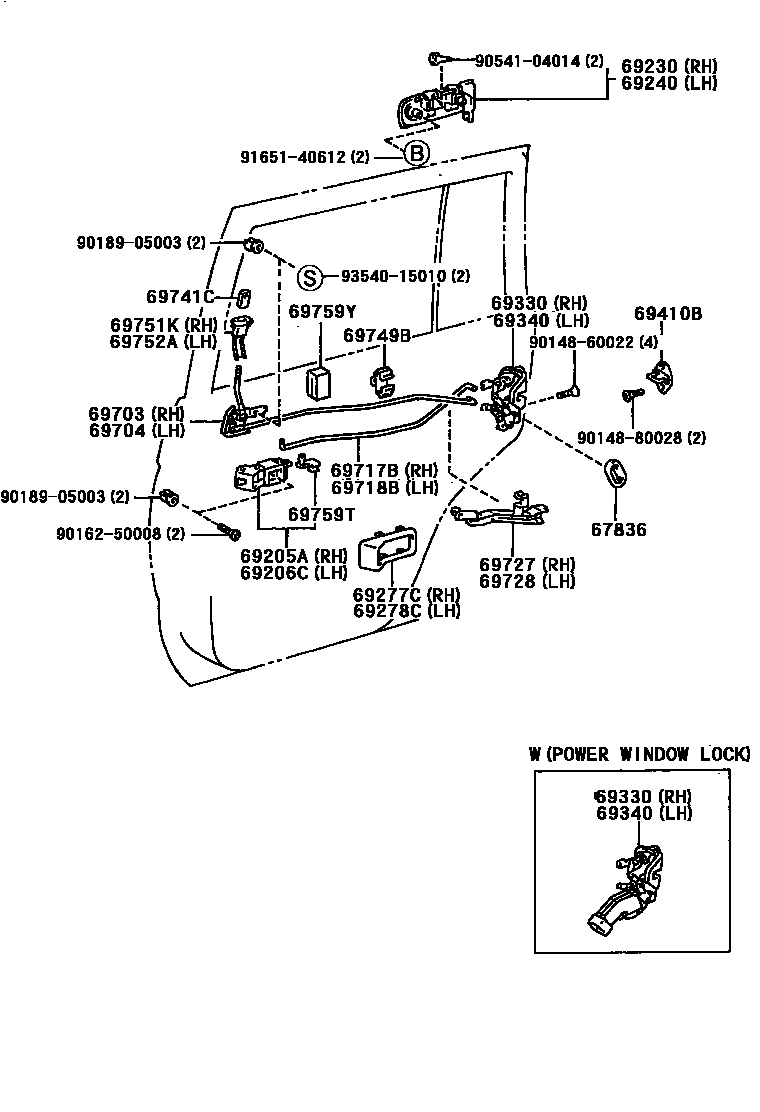

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040×2iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10070-B1iRZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(GX,STD)..(DSL,EFI,TD)199807-200209

MD.MOON MIST,TRIM1#

main69205-10070-E0iRZJ95..ARL199910-200209

OAK,TRIM4#

main69207-60020-B0iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)199604-199906

W(POWER WINDOW),MD.MOON MIST,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-10070-B1iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN,MA199906-200312

MD.MOON MIST,TRIM1#

main69206-10070-E0iRZJ95..ARL199910-200209

OAK,TRIM4#

main69208-60020-B0iVZJ95..CO199808-199910

MD.MOON MIST,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-60050iVZJ95..CO199808-199910

main69230-60060iVZJ95..ARL;VZJ95..ATM..GCC;KZJ95,LJ95,RZJ95199604-199906

main69230-60090iRZJ95..GX;RZJ95..LHD..STD;KZJ95,LJ95,VZJ95..ARL,GEN199906-200312

main69230-60100iRZJ95..LHD..MTM..GX;RZJ95..ATM..(GCC,MA);RZJ95..RHD..(ARL,GEN);KZJ95,LJ95,VZJ95..GX,VX199906

CHROME PLATED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-60050iVZJ95..CO199808-199910

main69240-60060iVZJ95..ARL;VZJ95..ATM..GCC;KZJ95,LJ95,RZJ95199604-199906

main69240-60090iRZJ95..RHD..STD;VZJ95..ATM..GCC199906-200209

main69240-60100iKZJ95,VZJ95..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA),CHROME PLATED

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-60020-B0iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199906

MD.MOON MIST,TRIM1#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69277-60020-B0iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199906

MD.MOON MIST,TRIM1#

69330LOCK ASSY, REAR DOOR, RH

main69050-60020iKZJ95,RZJ95..MA199910-200209

main69330-60070iRZJ95..ATM..GCC;KZJ95,LJ95,RZJ95..GEN199906-200412

69340LOCK ASSY, REAR DOOR, LH

main69060-60020iKZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN199906

W(POWER DOOR LOCK)

main69340-60070iKZJ95,LJ95,RZJ95..CBR,DSL,TD199807-199906

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070×2iKZJ95,LJ95,RZJ95,VZJ95199906

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-60010iKZJ95,LJ95,RZJ95,VZJ95199604-199705

main69703-60011iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199705-200209

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-60020iKZJ95,LJ95,RZJ95,VZJ95199604-199705

main69704-60021iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199705-200209

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-60030iKZJ95,LJ95,RZJ95,VZJ95199604-199705

main69713-60031iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199705-200209

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-60030iKZJ95,LJ95,RZJ95,VZJ95199604-199705

main69714-60031iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199705-200209

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-60020iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199705

main69727-60021iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199705-199906

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-60020iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199705

main69728-60021iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199705-199906

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040-B1×2iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

MD.MOON MIST,TRIM1#

main69741-12040-E0×2iRZJ95..ARL199910-200209

OAK,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040×2iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

69751KHOLDER, DOOR LOCK CONTROL KNOB, RH

main69751-60010iLJ95..GX;LJ95..LHD..STD;KZJ95,RZJ95,VZJ95199604-199906

69752AHOLDER, DOOR LOCK CONTROL KNOB, LH

main69752-60010iLJ95..GX;LJ95..LHD..STD;KZJ95,RZJ95,VZJ95199604-199906

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199906

PINK

main69759-20060iRZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(GX,STD)..(DSL,EFI,TD)199807-200209

GRAY

main69759-20070iKZJ95,LJ95,RZJ95,VZJ95..GX,STD199604-199807

GREEN

main69759-24070iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-199906

YELLOW

69759YSILENCER, REAR DOOR LOCK LINK

main69759-12060×2iKZJ95,LJ95,RZJ95,VZJ95199906

9014860022

main90148-60022

9014880028

main90148-80028

9016250008

main90162-50008

9018905003

main90189-05003

9054104014

main90541-04014

9165140612

main91651-40612

9354015010

main93540-15010

29 parts on this diagram · 1 diagram in section
