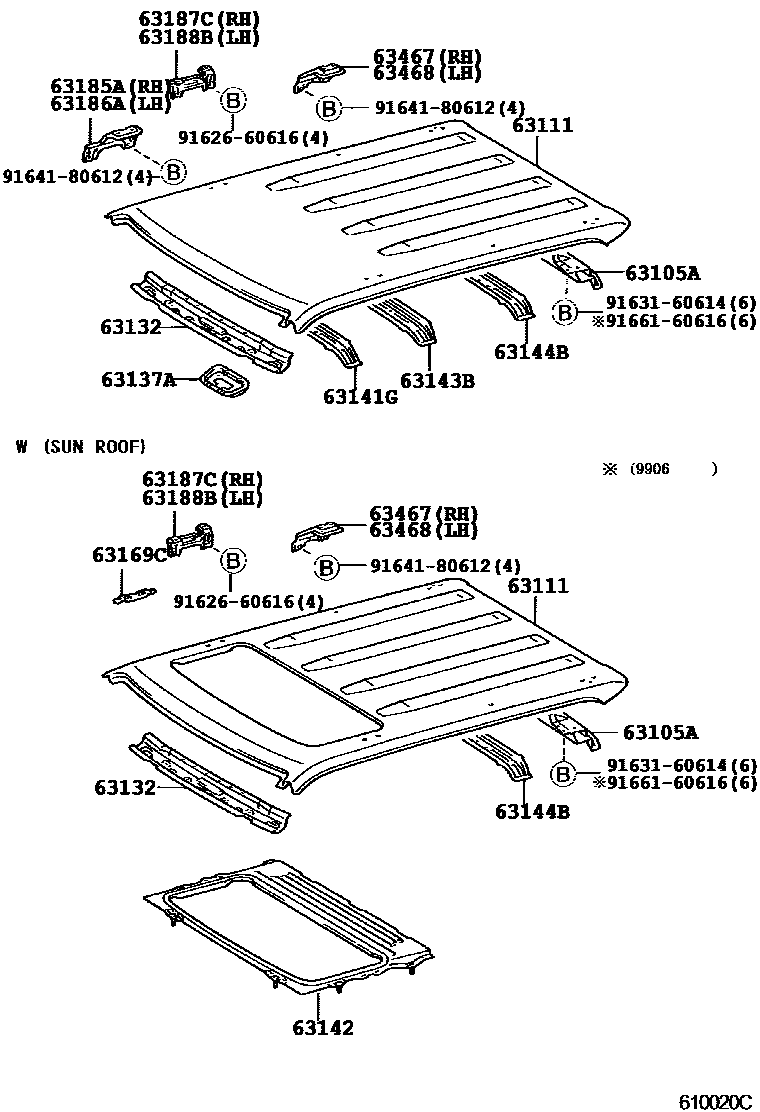

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1W(SUN ROOF) 0004 1W(ROOF RAIL) 0005 1W(ROOF RACK)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60150iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

63111PANEL, ROOF

main63111-60350iKZJ95,LJ95,RZJ95,VZJ95199604-200209

main63111-60360iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)199604-200312

W(SUN ROOF)

main63111-60370iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

main63111-60380iKZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN)199604-200209

W(SUN ROOF)

main63111-60901iKZJ90,RZJ90..GX..GEN199604-199906

W(SUN ROOF & ROOF RAIL)

sub63111-60380

main63111-60902iVZJ95..ARL;KZJ95,LJ95,RZJ95..GX199604-199906

W(SUN ROOF & ROOF RAIL)

sub63111-60360

63132PANEL, WINDSHIELD HEADER, INNER

main63132-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

63137ABRACKET, DOME LAMP, NO.1

main63137-60010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-60030iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199604-200312

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60020iVZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)199604-200209

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60030iKZJ95,LJ95,RZJ95,VZJ95199604-200209

main63144-60040iLJ90,RZJ90..STD199604-199910

63169CRETAINER, ROOF REINFORCEMENT, NO.2

main63169-60010iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN)199604-200312

63185ABRACKET, ROOF RACK, FRONT RH

main63185-60010iVZJ95..ATM..GCC199604-200312

63186ABRACKET, ROOF RACK, FRONT LH

main63186-60010iKZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX199604-200312

63187CBRACKET, ROOF RACK, NO.1 REAR RH

main63187-60010iKZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN)199604-200209

63188BBRACKET, ROOF RACK, NO.1 REAR LH

main63188-60010iKZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN)199604-200209

63467BRACKET, ROOF RACK, REAR RH

main63467-60020iKZJ95,LJ95,RZJ95,VZJ95..GX,VX199604-200312

main63467-60030iKZJ90,RZJ90,VZJ90..(EFI,TD)..(GCC,GEN)199604-200209

63468BRACKET, ROOF RACK, REAR LH

main63468-60020iRZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN)199604-200312

main63468-60030iKZJ90,RZJ90,VZJ90..(GX,VX)..(GCC,GEN)199604-200209

9162660616

main91626-60616

9163160614

main91631-60614

9164180612

main91641-80612

9166160616

main91661-60616

19 parts on this diagram · 5 diagrams in section
